HYUNDAI Brake Disc 51712-02551

Location:Front wheel Total height:50.7 mm Outer diameter:234 mm Center hole diameter:62.2 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.8 kg

NISSAN Brake Disc 43206-05J03

Location:Rear wheel Total height:80 mm Outer diameter:316 mm Center hole diameter:111 mm Pitch diameter:139.7 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:7.6 kg

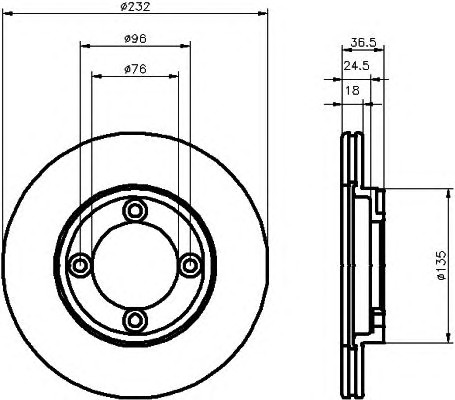

NISSAN Brake Disc 40206-16R00

Location:Front wheel Total height:36.5 mm Outer diameter:232 mm Center hole diameter:76 mm Pitch diameter:96 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

DAIHATSU Brake Disc 43512-87710-000

Location:Front wheel Total height:47 mm Outer diameter:234.5 mm Center hole diameter:56 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.9 kg

SUBARU Brake Disc 26310-AA012

Location:Front wheel Total height:52.5 mm Outer diameter:242 mm Center hole diameter:58 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:4.2 kg

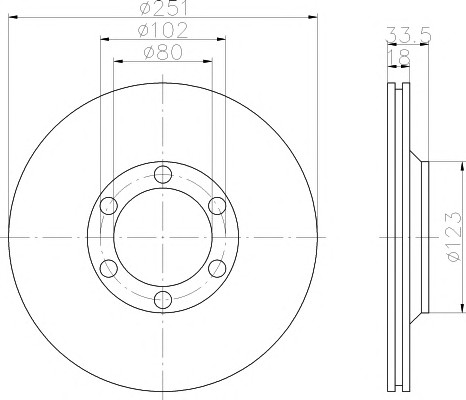

ISUZU Brake Disc 8-94113-628-0

Location:Front wheel Total height:33.5 mm Outer diameter:251.5 mm Center hole diameter:80 mm Pitch diameter:102 mm Disc thickness:18 mm Minimum disc thickness:16.6 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:4.13 kg

DAIHATSU Brake Disc 43512-87604-000

Location:Front wheel Total height:32.5 mm Outer diameter:277 mm Center hole diameter:96 mm Pitch diameter:118 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5 kg

MITSUBISHI/DONGNAN (SOUEAST) Brake Disc MB699283

Location:Front wheel Total height:45 mm Outer diameter:236 mm Center hole diameter:64 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16.4 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.9 kg

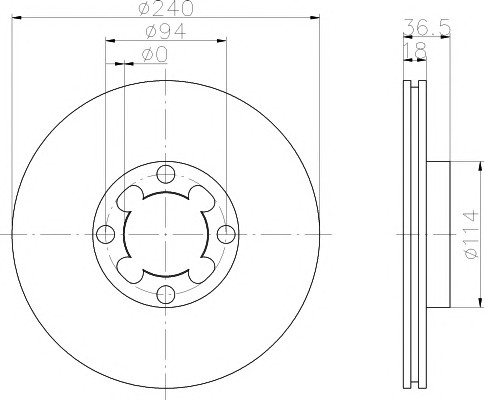

SUBARU Brake Disc 7254-31321

Location:Front wheel Total height:36.5 mm Outer diameter:240 mm Center hole diameter:65.1 mm Pitch diameter:94 mm Disc thickness:18 mm Minimum disc thickness:15.5 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.7 kg

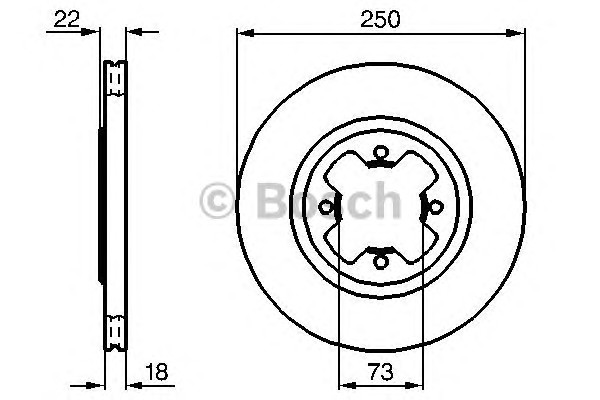

NISSAN Brake Disc 40206-W1270

Location:Front wheel Total height:22 mm Outer diameter:250 mm Center hole diameter:73 mm Pitch diameter:95 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.13 kg

SUZUKI Brake Disc 55311-80G02

Location:Front wheel Total height:49.2 mm Outer diameter:257 mm Center hole diameter:60 mm Pitch diameter:100 mm Disc thickness:17 mm Minimum disc thickness:15 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.3 kg

SUZUKI/HAFEI/SUZUKI (CHANGHE) Brake Disc 55311-75F00

Location:Front wheel Total height:49.2 mm Outer diameter:231 mm Center hole diameter:60 mm Pitch diameter:100 mm Disc thickness:17 mm Minimum disc thickness:15 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.5 kg

CITROEN/FIAT/PEUGEOT Brake Disc 4249.39

Location:Rear wheel Total height:80 mm Outer diameter:280 mm Center hole diameter:79 mm Pitch diameter:130 mm Disc thickness:16 mm Minimum disc thickness:14.2 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7 kg

MERCEDES BENZ/VOLKSWAGEN Brake Disc 906 423 00 12

Location:Rear wheel Total height:71 mm Outer diameter:298 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:16 mm Minimum disc thickness:14 mm Number of holes:6 Solid or ventilated disk:Solid disk Weight:7.3 kg

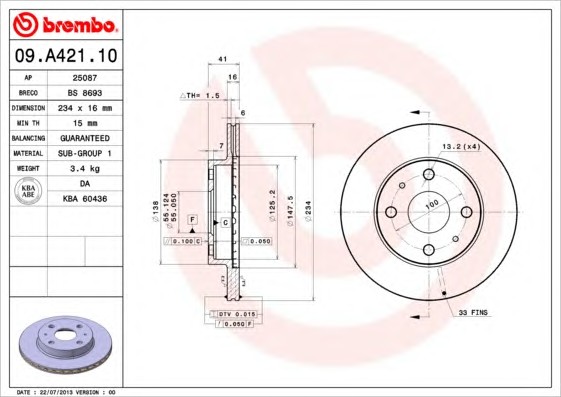

DAIHATSU Brake Disc 43512-97202-000

Location:Front wheel Total height:40.9 mm Outer diameter:234 mm Center hole diameter:55.1 mm Pitch diameter:100 mm Disc thickness:16 mm Minimum disc thickness:15 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.4 kg
