TOYOTA Brake Disc 42431-28130

Location:Rear wheel Total height:64.4 mm Outer diameter:298 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:10 mm Minimum disc thickness:8.5 mm Number of holes:5 Solid or ventilated disk:Solid disk

MINI Brake Disc 34 21 9 811 539

Location:Rear wheel Total height:50.2 mm Outer diameter:280 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:10 mm Minimum disc thickness:8.4 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.2 kg

SUZUKI Brake Disc 55611-70L00

Location:Rear wheel Total height:43.4 mm Outer diameter:259 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.5 kg

SUZUKI Brake Disc 55311-70L00

Location:Front wheel Total height:40 mm Outer diameter:272 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5.2 kg

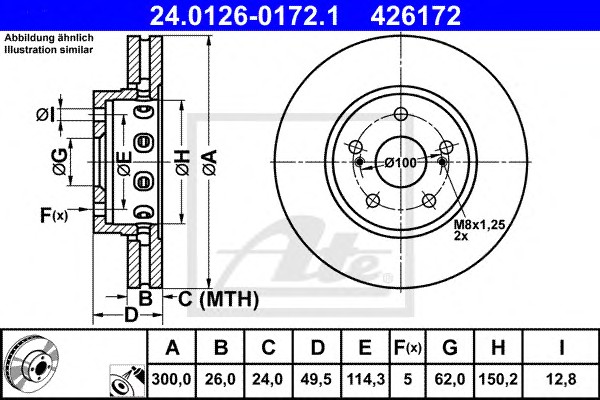

SUZUKI Brake Disc 55311-57L00

Location:Front wheel Total height:49.5 mm Outer diameter:300 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:26 mm Minimum disc thickness:24 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

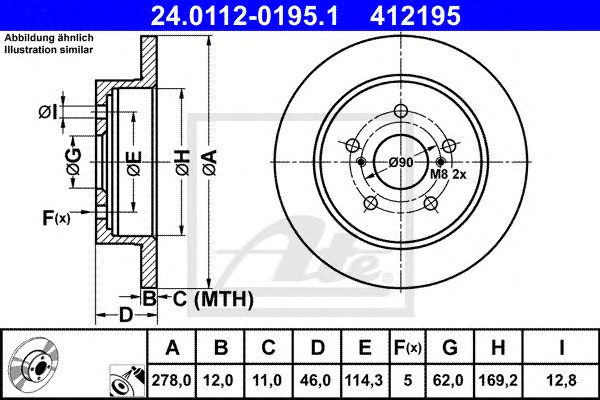

SUZUKI Brake Disc 55611-57L00

Location:Rear wheel Total height:46 mm Outer diameter:278 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:12 mm Minimum disc thickness:11 mm Number of holes:5 Solid or ventilated disk:Solid disk

HYUNDAI Brake Disc 58411-3Z700

Location:Rear wheel Total height:25 mm Outer diameter:300 mm Center hole diameter:76 mm Pitch diameter:114.3 mm Disc thickness:10 mm Minimum disc thickness:8.4 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.3 kg

KIA/HYUNDAI Brake Disc 51712-2T100

Location:Front wheel Total height:47.2 mm Outer diameter:320 mm Center hole diameter:69 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9.3 kg

HYUNDAI Brake Disc 58411-3Z100

Location:Rear wheel Total height:24.8 mm Outer diameter:284 mm Center hole diameter:76 mm Pitch diameter:114.3 mm Disc thickness:10 mm Minimum disc thickness:8.4 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.8 kg

NISSAN Brake Disc 40206-MB600

Location:Front wheel Total height:45 mm Outer diameter:276 mm Center hole diameter:94 mm Pitch diameter:118 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.4 kg

HYUNDAI Brake Disc 51712-3J500

Location:Front wheel Total height:51 mm Outer diameter:321 mm Center hole diameter:69 mm Pitch diameter:114.3 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:12 kg

HYUNDAI Brake Disc 58411-3J500

Location:Rear wheel Total height:67 mm Outer diameter:324 mm Center hole diameter:69 mm Pitch diameter:114.3 mm Disc thickness:18 mm Minimum disc thickness:16.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.4 kg

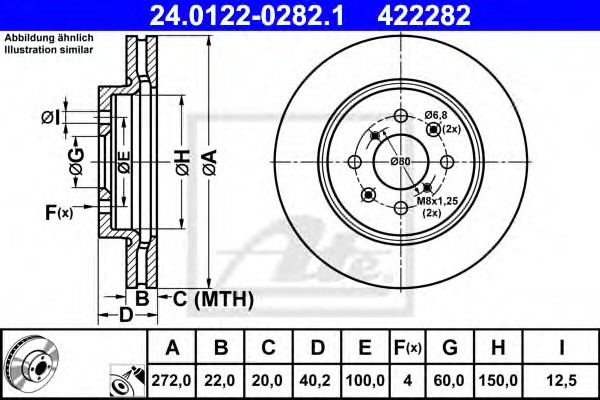

SUZUKI Brake Disc 55311-68L50

Location:Front wheel Total height:40 mm Outer diameter:272 mm Center hole diameter:60 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.2 kg

TOYOTA Brake Disc 43512-0K030

Location:Front wheel Total height:58.5 mm Outer diameter:257 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6 kg

TOYOTA Brake Disc 43512-02330

Location:Front wheel Total height:49.2 mm Outer diameter:277 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:26 mm Minimum disc thickness:23 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.7 kg
