Product Center

LAND ROVER Brake Disc LR016192

Location:Rear wheel Total height:59 mm Outer diameter:365 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:20 mm Minimum disc thickness:17 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

LAND ROVER Brake Disc LR016176

Location:Front wheel Total height:61.9 mm Outer diameter:380 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:34 mm Minimum disc thickness:31 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

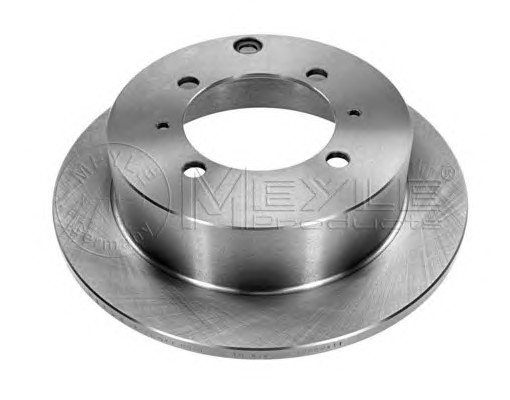

HYUNDAI/KIA/MITSUBISHI Brake Disc 58411-M2050

Location:Rear wheel Total height:60.2 mm Outer diameter:266 mm Center hole diameter:90 mm Pitch diameter:114.3 mm Disc thickness:18 mm Minimum disc thickness:16.4 mm Number of holes:4 Solid or ventilated disk:Solid disk

CITROEN Brake Disc 95 535 891

Weight:3.4 kg

VOLVO Brake Disc 3 265 880/9

LANCIA Brake Disc 82 287 786

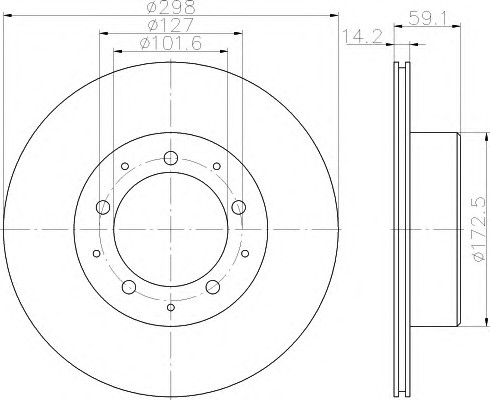

LAND ROVER Brake Disc SDB000330

Location:Rear wheel Total height:59 mm Outer diameter:298 mm Center hole diameter:101.6 mm Pitch diameter:127 mm Disc thickness:14 mm Minimum disc thickness:13 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7.1 kg

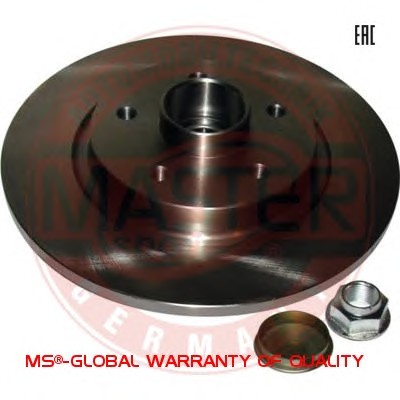

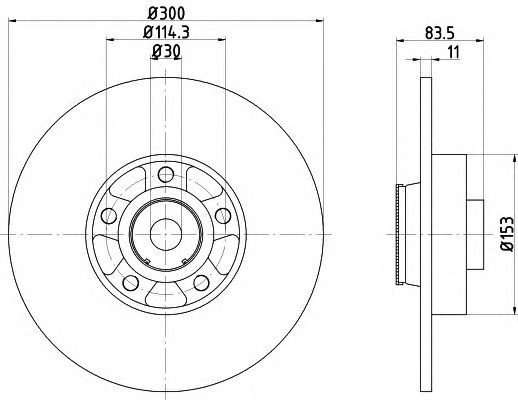

RENAULT Brake Disc 40 20 200 03R

Location:Rear wheel Total height:82 mm Outer diameter:300 mm Center hole diameter:52.3 mm Disc thickness:11 mm Minimum disc thickness:9.5 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:8.3 kg

RENAULT Brake Disc 82 00 381 148

Location:Rear wheel Total height:90 mm Outer diameter:275 mm Center hole diameter:52.5 mm Disc thickness:11 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk

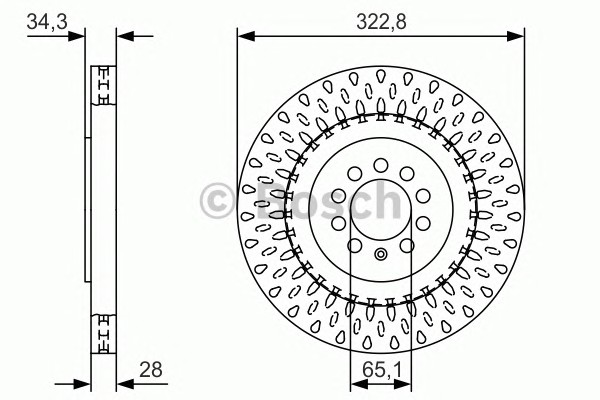

SEAT Brake Disc 1ML 615 301

Location:Front wheel Total height:34.2 mm Outer diameter:323 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

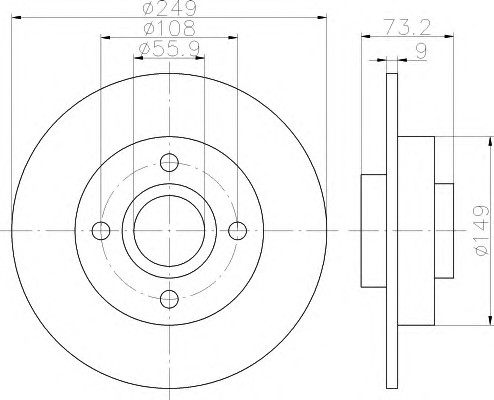

PEUGEOT/CITROEN Brake Disc 4249.65

Location:Rear wheel Total height:73.2 mm Outer diameter:249 mm Center hole diameter:55.9 mm Pitch diameter:108 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:5.3 kg

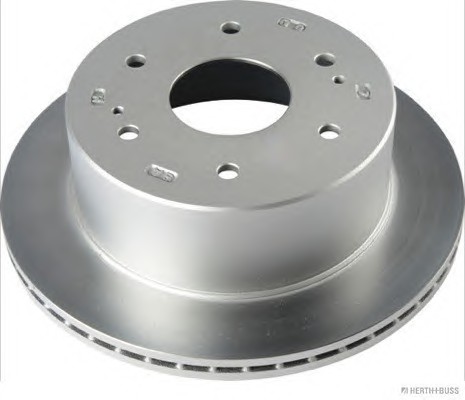

HYUNDAI/JAC Brake Disc 58329-4A450

Location:Rear wheel Total height:92.6 mm Outer diameter:303 mm Center hole diameter:75 mm Pitch diameter:120 mm Disc thickness:20 mm Minimum disc thickness:18.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

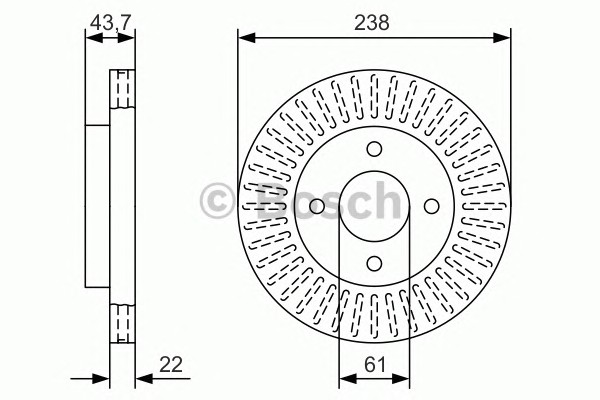

NISSAN/DONGFENG (DFL)/NISSAN (DONGFENG) Brake Disc 40206-AX000

Location:Front wheel Total height:43.7 mm Outer diameter:237.7 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

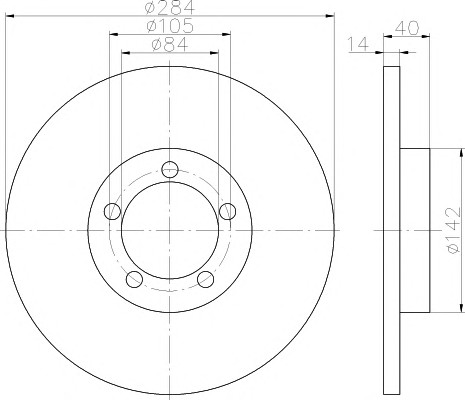

METROCAB Brake Disc C81032

Location:Front wheel Total height:40 mm Outer diameter:284 mm Center hole diameter:84 mm Pitch diameter:105 mm Disc thickness:14 mm Minimum disc thickness:13 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:12 kg

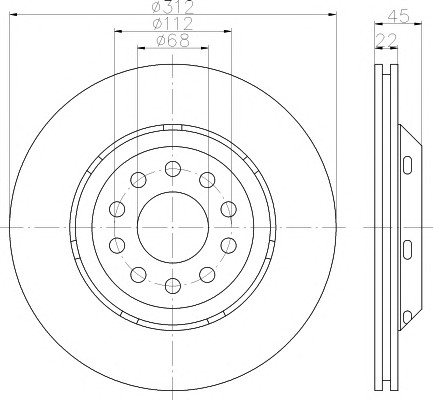

AUDI Brake Disc 8D0 615 602

Location:Rear wheel, Right Total height:45 mm Outer diameter:312 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:20.4 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:5.3 kg
