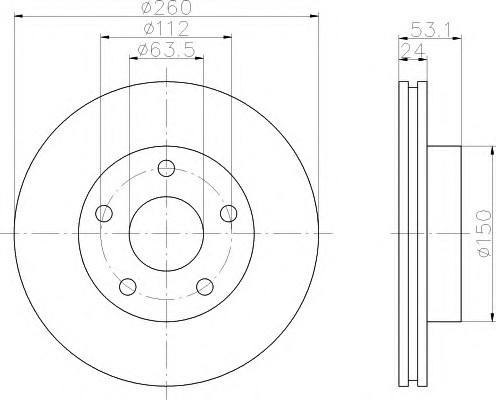

FORD Brake Disc 1 630 011

Location:Front wheel Total height:51.6 mm Outer diameter:260 mm Center hole diameter:72 mm Pitch diameter:112 mm Disc thickness:24.2 mm Minimum disc thickness:22.2 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

AUDI/VOLKSWAGEN Brake Disc 4E0 615 601 K

Location:Rear wheel Total height:42.4 mm Outer diameter:310 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.9 kg

ROVER/MG/MG (NANJING)/ROEWE (SAIC) Brake Disc SDB100940

Location:Front wheel Total height:38.2 mm Outer diameter:284 mm Center hole diameter:64.2 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6 kg

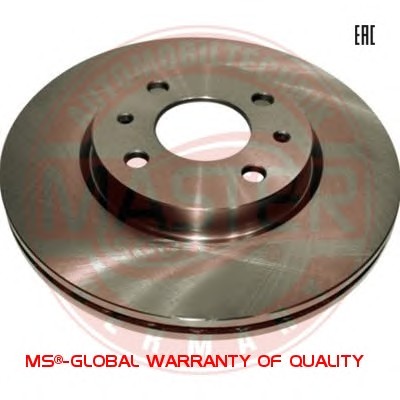

FIAT/LANCIA/PEUGEOT/ALFA ROMEO/CITROEN/BYD Brake Disc 46542383

Location:Front wheel Total height:40.5 mm Outer diameter:257.5 mm Center hole diameter:59 mm Pitch diameter:98 mm Disc thickness:22 mm Minimum disc thickness:20.2 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5 kg

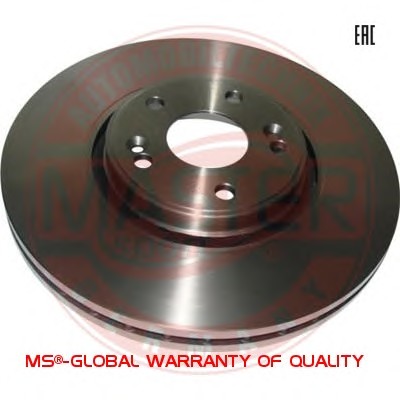

RENAULT Brake Disc 82 00 242 317

Location:Front wheel Total height:47 mm Outer diameter:308 mm Center hole diameter:61 mm Pitch diameter:108 mm Disc thickness:28 mm Minimum disc thickness:25.8 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9.9 kg

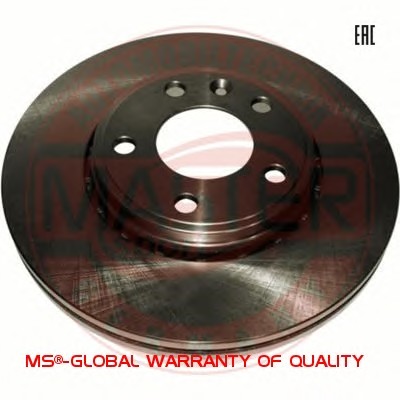

RENAULT Brake Disc 77 01 206 831

Location:Front wheel Total height:47 mm Outer diameter:308 mm Center hole diameter:61 mm Pitch diameter:108 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9.9 kg

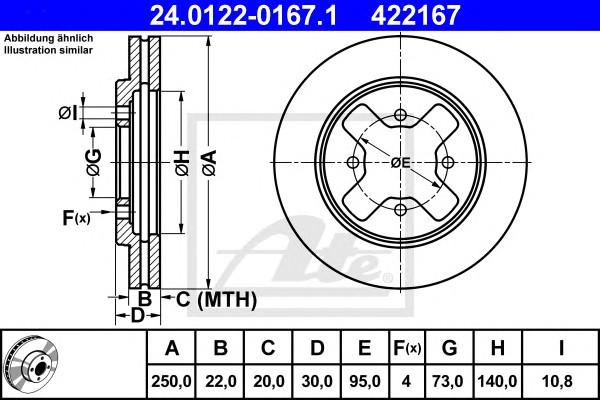

NISSAN Brake Disc 40206-04C01

Location:Front wheel Total height:30 mm Outer diameter:250 mm Center hole diameter:73 mm Pitch diameter:95 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5 kg

MAZDA Brake Disc BR70-33-25XF

Location:Front wheel Total height:45 mm Outer diameter:235 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.4 kg

NISSAN/OPEL/RENAULT/VAUXHALL Brake Disc 77 01 206 845

Location:Front wheel Total height:49.7 mm Outer diameter:305 mm Center hole diameter:72 mm Pitch diameter:118 mm Disc thickness:28 mm Minimum disc thickness:24 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9 kg

ROVER Brake Disc GBD90801

Location:Front wheel Total height:51 mm Outer diameter:262 mm Center hole diameter:64.1 mm Pitch diameter:114.3 mm Disc thickness:21 mm Minimum disc thickness:18 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.2 kg

SUZUKI/SUZUKI (CHANGHE) Brake Disc 55311-62G02

Location:Front wheel Total height:50 mm Outer diameter:246 mm Center hole diameter:60 mm Pitch diameter:100 mm Disc thickness:20 mm Minimum disc thickness:18 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.7 kg

TOYOTA/FAW TIANJIN/TOYOTA (FAW) Brake Disc 43512-17120

Location:Front wheel Total height:43.1 mm Outer diameter:255 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:20 mm Minimum disc thickness:18 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.7 kg

HONDA Brake Disc 42510-S5A-000

Location:Rear wheel Total height:48.2 mm Outer diameter:260 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.7 kg

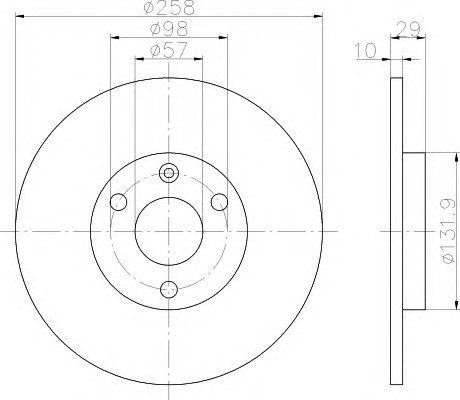

CITROEN Brake Disc 96 017 878

Location:Front wheel Total height:29 mm Outer diameter:258 mm Center hole diameter:57 mm Pitch diameter:98 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:3 Solid or ventilated disk:Solid disk Weight:3.26 kg

ALFA ROMEO/FIAT/LANCIA Brake Disc 46758715

Location:Rear wheel Total height:50.7 mm Outer diameter:251.5 mm Center hole diameter:59 mm Pitch diameter:98 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.5 kg
