TOYOTA Brake Disc 43512-0B020

Location:Front wheel Total height:41.6 mm Outer diameter:255 mm Center hole diameter:74 mm Pitch diameter:100 mm Disc thickness:25 mm Minimum disc thickness:23.5 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

TOYOTA Brake Disc 43512-28150

Location:Front wheel Total height:43.6 mm Outer diameter:230 mm Center hole diameter:74 mm Pitch diameter:94 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

MITSUBISHI Brake Disc MN102275

Location:Front wheel Total height:51.5 mm Outer diameter:270 mm Center hole diameter:69 mm Disc thickness:28 mm Minimum disc thickness:26.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

TOYOTA Brake Disc 43512-37080

Location:Front wheel Total height:90 mm Outer diameter:280 mm Center hole diameter:126 mm Pitch diameter:167 mm Disc thickness:35 mm Minimum disc thickness:33 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

TOYOTA Brake Disc 43512-37090

Location:Front wheel Total height:90 mm Outer diameter:296 mm Center hole diameter:126 mm Pitch diameter:167 mm Disc thickness:35 mm Minimum disc thickness:33 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

NISSAN Brake Disc 40206-VH300

Location:Front wheel Total height:39 mm Outer diameter:273 mm Center hole diameter:92 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:6 Solid or ventilated disk:Ventilated disk

PROTON Brake Disc PW868976

Location:Front wheel Total height:37.3 mm Outer diameter:270 mm Center hole diameter:69 mm Pitch diameter:114.3 mm Disc thickness:22 mm Minimum disc thickness:20.4 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

NISSAN Brake Disc 40206-EB70B

Location:Front wheel Total height:53 mm Outer diameter:282.7 mm Center hole diameter:68 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:6 Solid or ventilated disk:Ventilated disk

NISSAN Brake Disc 40206-JR70C

Location:Front wheel Total height:53.1 mm Outer diameter:296 mm Center hole diameter:68 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:6 Solid or ventilated disk:Ventilated disk

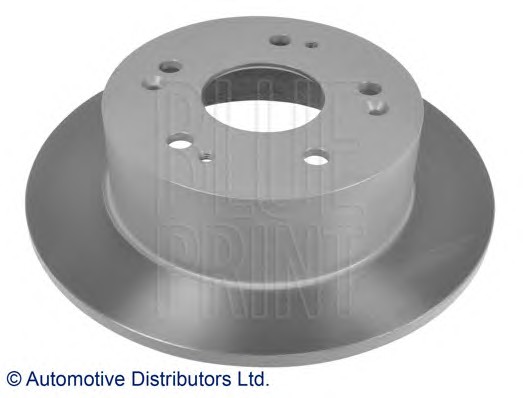

HONDA Brake Disc 42510-SNL-T00

Location:Rear wheel Total height:42 mm Outer diameter:260 mm Center hole diameter:64 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk

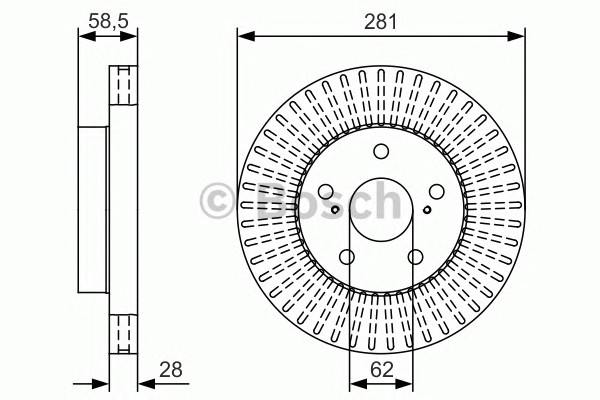

TOYOTA Brake Disc 43512-0K041

Location:Front wheel Total height:58.5 mm Outer diameter:281 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

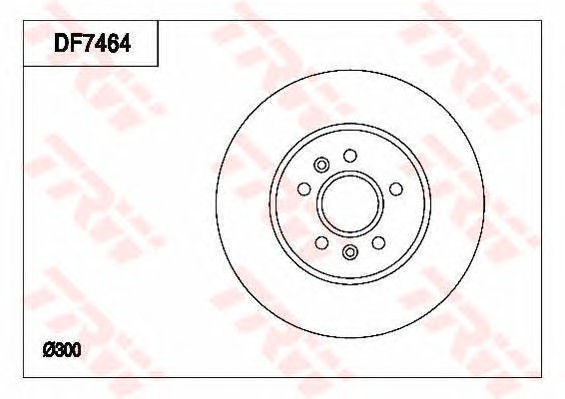

FORD (CHANGAN) Brake Disc 1S7W-1125-AD

Location:Front wheel Total height:47 mm Outer diameter:300 mm Center hole diameter:63.6 mm Pitch diameter:108 mm Disc thickness:24 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

HONDA Brake Disc 42510-S6M-J50

Location:Rear wheel Total height:63.2 mm Outer diameter:259.7 mm Center hole diameter:64 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk

HONDA Brake Disc 45251-ST7-Z00

Location:Front wheel Total height:49.2 mm Outer diameter:261.7 mm Center hole diameter:64.1 mm Pitch diameter:114.3 mm Disc thickness:21 mm Minimum disc thickness:19 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

PROTON Brake Disc PW990298

Location:Front wheel Total height:45.6 mm Outer diameter:281 mm Center hole diameter:69 mm Pitch diameter:114.3 mm Disc thickness:24 mm Minimum disc thickness:22.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk
