HYUNDAI/HYUNDAI (BEIJING) Brake Disc 51712-2W000

Location:Front wheel Total height:49.1 mm Outer diameter:320 mm Center hole diameter:69 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

FORD (CHANGAN) Brake Disc DV612A315AA

Location:Rear wheel Total height:50.8 mm Outer diameter:279 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:11 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk

FIAT (GAC) Brake Disc 51912593

Location:Rear wheel Total height:40.5 mm Outer diameter:263.9 mm Center hole diameter:70 mm Pitch diameter:110 mm Disc thickness:10 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk

ENGLON (GEELY) Brake Disc 1014012463

Location:Rear wheel Total height:42.7 mm Outer diameter:280 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:11 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk

VOLVO Brake Disc 31341644

Location:Front wheel Total height:48.6 mm Outer diameter:320 mm Center hole diameter:63.6 mm Pitch diameter:108 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8.58 kg

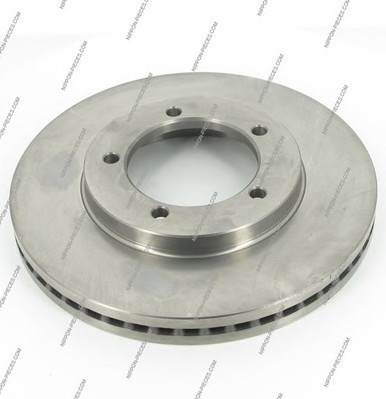

TOYOTA Brake Disc 43512-36070

Location:Front wheel Total height:60 mm Outer diameter:300 mm Center hole diameter:106.5 mm Pitch diameter:132 mm Disc thickness:30 mm Minimum disc thickness:28 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

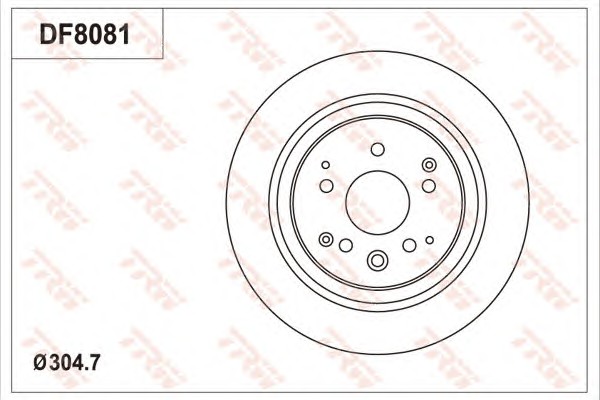

HONDA/HONDA (GUANGZHOU)/HONDA (DONGFENG) Brake Disc 42510-TW1-W01

Location:Rear wheel Total height:57.4 mm Outer diameter:304.7 mm Center hole diameter:64.1 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk

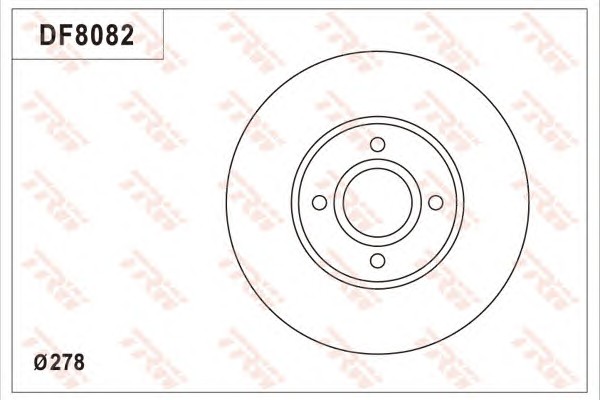

FORD (CHANGAN) Brake Disc CN15-1125-AB

Location:Front wheel Total height:39.9 mm Outer diameter:278 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

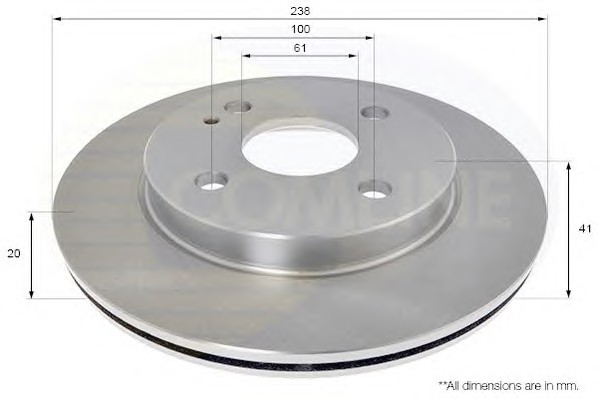

MAZDA Brake Disc D651-33-251

Location:Front wheel Total height:41 mm Outer diameter:238.8 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:20 mm Minimum disc thickness:18 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

Brake Disc 55311-B77M00-N000

Location:Front wheel Total height:40 mm Outer diameter:272 mm Center hole diameter:62 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

LAND ROVER Brake Disc LR033303

Location:Rear wheel Total height:49 mm Outer diameter:365 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:25 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

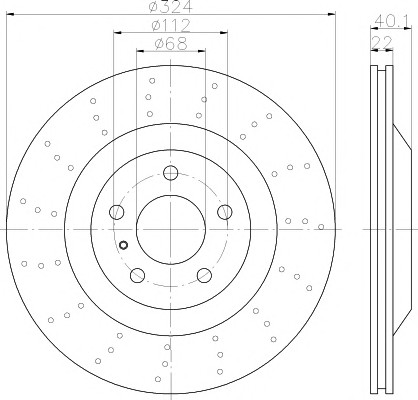

AUDI Brake Disc 8E0 615 602 D

Location:Rear wheel, Right Total height:40 mm Outer diameter:324 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:20.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7 kg

JAGUAR Brake Disc C2P10563

Location:Rear wheel Total height:40.2 mm Outer diameter:350 mm Center hole diameter:64.5 mm Pitch diameter:108 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

JAGUAR Brake Disc C2P10562

Location:Rear wheel, Right Total height:40.2 mm Outer diameter:350 mm Center hole diameter:64.5 mm Pitch diameter:108 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

JAGUAR Brake Disc C2P10565

Location:Front wheel, Left Total height:63.1 mm Outer diameter:400 mm Center hole diameter:71 mm Pitch diameter:108 mm Disc thickness:36 mm Minimum disc thickness:34 mm Number of holes:5 Solid or ventilated disk:Ventilated disk
