FORD Brake Disc 1 535 924

Location:Front wheel Total height:43.8 mm Outer diameter:258 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:23 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.6 kg

MAZDA/MAZDA (CHANGAN)/FORD (CHANGAN)/FORD Brake Disc DF71-33-251

Location:Front wheel Total height:43.9 mm Outer diameter:258 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:23 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.7 kg

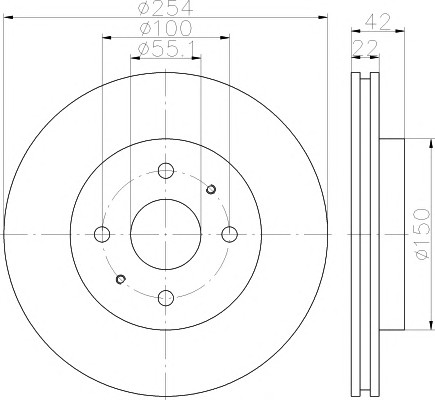

DAIHATSU/SUBARU Brake Disc 43512-B1030

Location:Front wheel Total height:42 mm Outer diameter:254 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

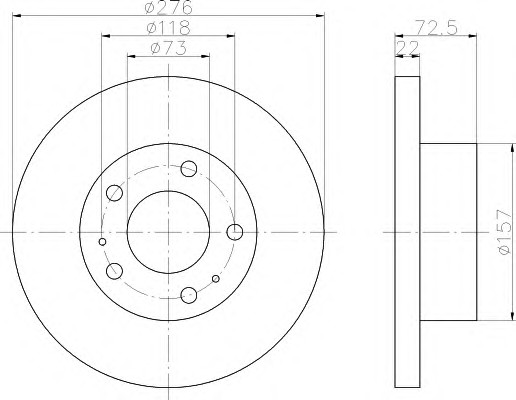

IVECO Brake Disc 42470836

Location:Front wheel Total height:72.5 mm Outer diameter:276 mm Center hole diameter:73 mm Pitch diameter:118 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:8.3 kg

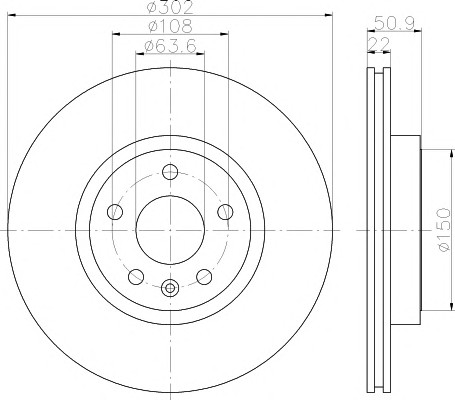

VOLVO Brake Disc 31277357

Location:Rear wheel Total height:50.7 mm Outer diameter:302 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.3 kg

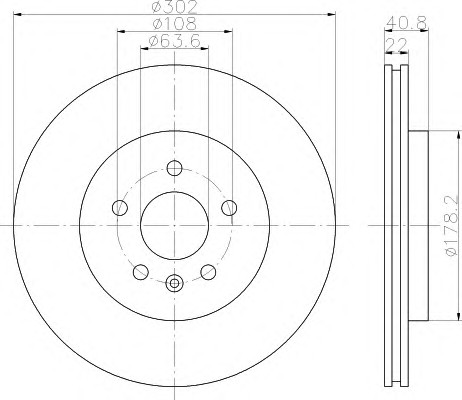

VOLVO/VOLVO (CHANGAN) Brake Disc 30769060

Location:Rear wheel Total height:40.8 mm Outer diameter:302 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.6 kg

TOYOTA Brake Disc 43512-02220

Location:Front wheel Total height:46.3 mm Outer diameter:275 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

CITROEN Brake Disc 4249.11

Location:Rear wheel Total height:35 mm Outer diameter:302 mm Center hole diameter:71.1 mm Pitch diameter:108 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.2 kg

TOYOTA/TOYOTA (GUANGZHOU) Brake Disc 43512-52130

Location:Front wheel Total height:46.5 mm Outer diameter:275 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

TOYOTA/TOYOTA (FAW) Brake Disc 43512-0D060

Location:Front wheel Total height:46 mm Outer diameter:258 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

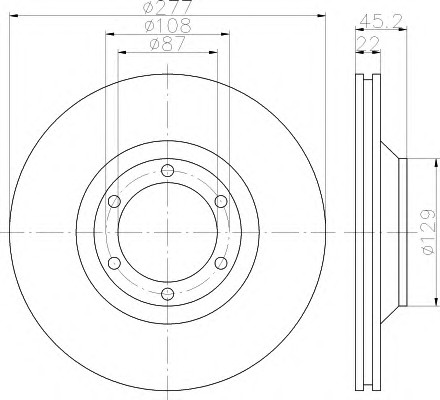

HYUNDAI Brake Disc HQ232405

Location:Front wheel Total height:45.5 mm Outer diameter:277 mm Center hole diameter:87 mm Pitch diameter:108 mm Disc thickness:22 mm Minimum disc thickness:20.4 mm Number of holes:6 Solid or ventilated disk:Ventilated disk

HONDA Brake Disc 45251-SAA-G50

Location:Front wheel Total height:39.2 mm Outer diameter:258 mm Center hole diameter:64.1 mm Pitch diameter:100 mm Disc thickness:21 mm Minimum disc thickness:19 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.8 kg

TOYOTA Brake Disc 43512-74010

Location:Front wheel Total height:46.2 mm Outer diameter:255 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:20 mm Minimum disc thickness:18 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.8 kg

BMW Brake Disc 34 21 6 765 887

Location:Rear wheel Total height:74 mm Outer diameter:324 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:20 mm Minimum disc thickness:18.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

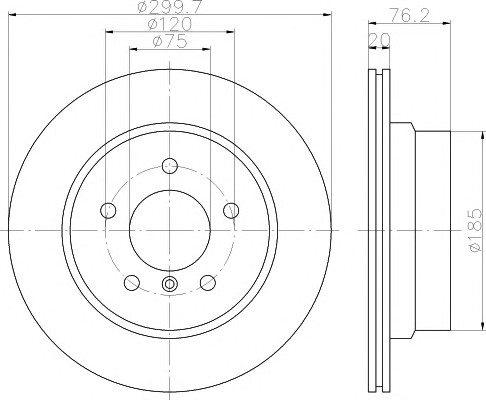

BMW Brake Disc 34 21 6 778 049

Location:Rear wheel Total height:76.2 mm Outer diameter:300 mm Center hole diameter:75 mm Pitch diameter:120 mm Disc thickness:20 mm Minimum disc thickness:18.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk
