Product Center

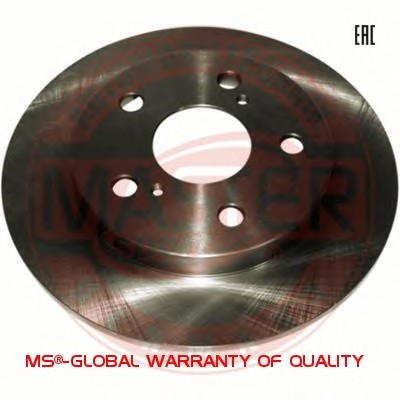

TOYOTA Brake Disc 42431-52080

Location:Rear wheel Total height:30.3 mm Outer diameter:259 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:7.5 mm Number of holes:4 Solid or ventilated disk:Solid disk

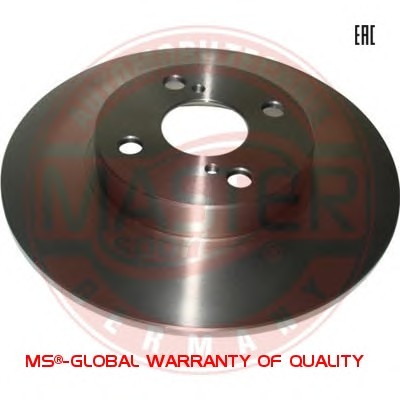

TOYOTA/TOYOTA (FAW) Brake Disc 42431-12260

Location:Rear wheel Total height:30.5 mm Outer diameter:259 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:7.5 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.2 kg

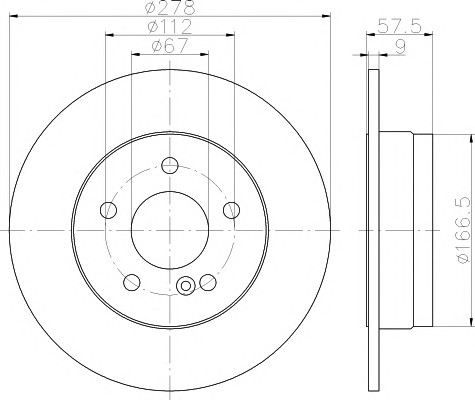

MERCEDES BENZ Brake Disc 204 423 05 12

Location:Rear wheel Total height:57.5 mm Outer diameter:278 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:9 mm Minimum disc thickness:7.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.1 kg

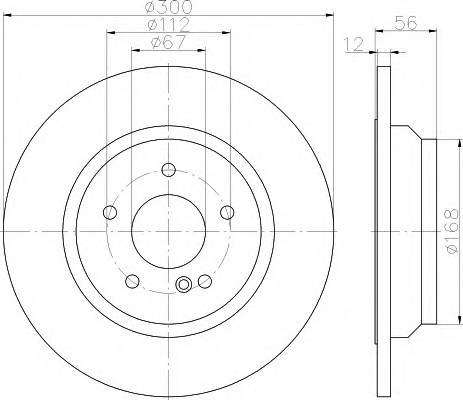

MERCEDES BENZ Brake Disc 221 423 07 12

Location:Rear wheel Total height:58.3 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:12 mm Minimum disc thickness:10 mm Number of holes:5 Solid or ventilated disk:Solid disk

MERCEDES BENZ Brake Disc 204 423 07 12

Location:Rear wheel Total height:57.5 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:19.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

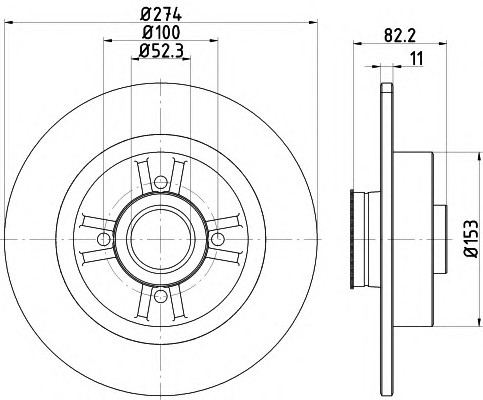

RENAULT Brake Disc 77 01 208 230

Location:Rear wheel Total height:82.2 mm Outer diameter:274 mm Center hole diameter:62 mm Pitch diameter:100 mm Disc thickness:10.9 mm Minimum disc thickness:9.5 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:7.1 kg

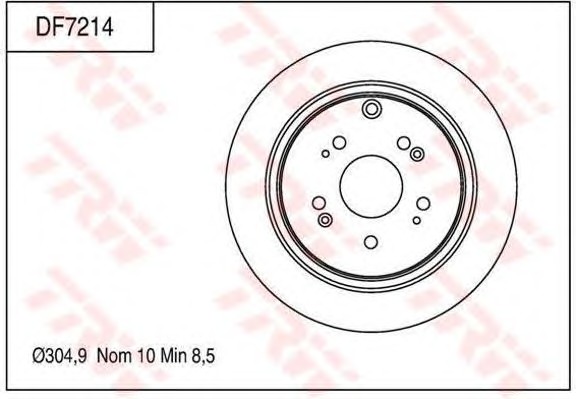

HONDA/HONDA (DONGFENG)/HONDA (GUANGZHOU) Brake Disc 42510-SLG-W00

Location:Rear wheel Total height:60 mm Outer diameter:304.9 mm Center hole diameter:64.2 mm Pitch diameter:114.3 mm Disc thickness:10 mm Minimum disc thickness:8.5 mm Number of holes:5 Solid or ventilated disk:Solid disk

MERCEDES BENZ Brake Disc 204 423 06 12

Location:Rear wheel Total height:57.5 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:10 mm Minimum disc thickness:8.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5 kg

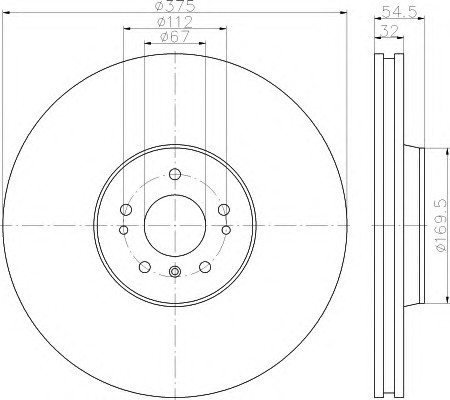

MERCEDES BENZ Brake Disc 164 421 06 12

Location:Front wheel Total height:54.5 mm Outer diameter:375 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:32 mm Minimum disc thickness:29.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:16 kg

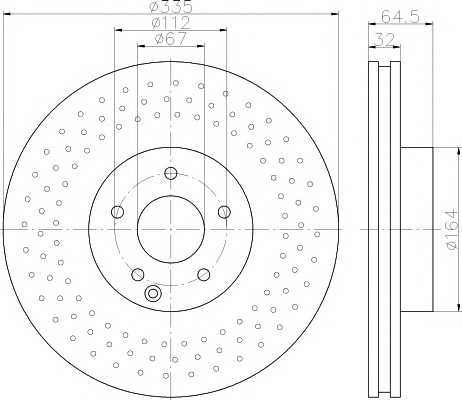

MERCEDES BENZ Brake Disc 221 421 06 12

Location:Front wheel Total height:64.5 mm Outer diameter:335 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

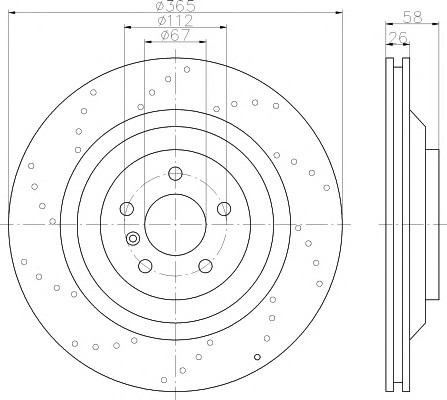

MERCEDES BENZ Brake Disc 164 423 08 12

Location:Rear wheel Total height:58 mm Outer diameter:365 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:26 mm Minimum disc thickness:23.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

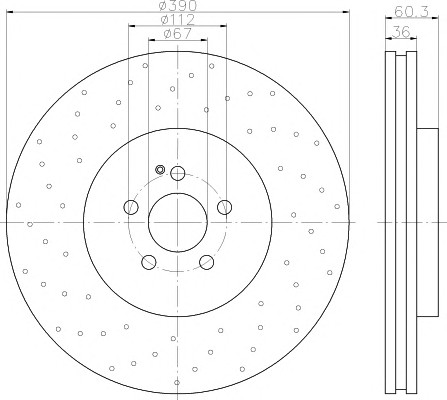

MERCEDES BENZ Brake Disc A 221 421 09 12

Location:Front wheel Total height:60.3 mm Outer diameter:390 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:36 mm Minimum disc thickness:33.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

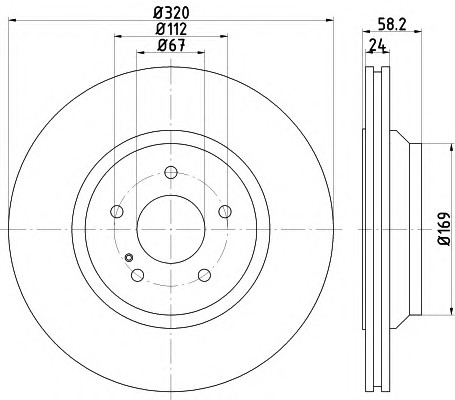

MERCEDES BENZ Brake Disc 221 423 04 12

Location:Rear wheel Total height:58 mm Outer diameter:320 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:24 mm Minimum disc thickness:21.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8.2 kg

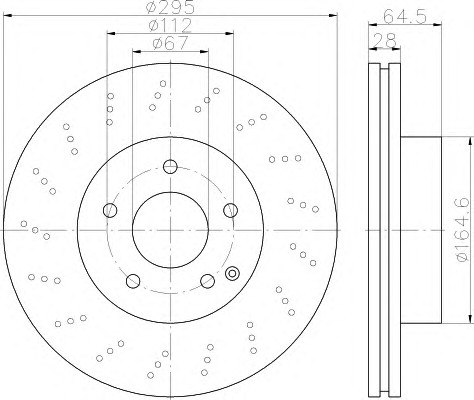

MERCEDES BENZ Brake Disc 204 421 09 12

Location:Front wheel Total height:64.5 mm Outer diameter:295 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:P/V Weight:8.3 kg

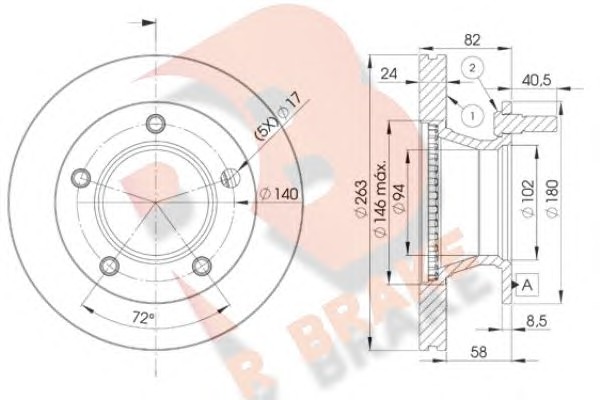

MERCEDES BENZ Brake Disc 631 420 01 72

Location:Front wheel Total height:82 mm Outer diameter:263 mm Center hole diameter:102 mm Pitch diameter:140 mm Disc thickness:24 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.8 kg
