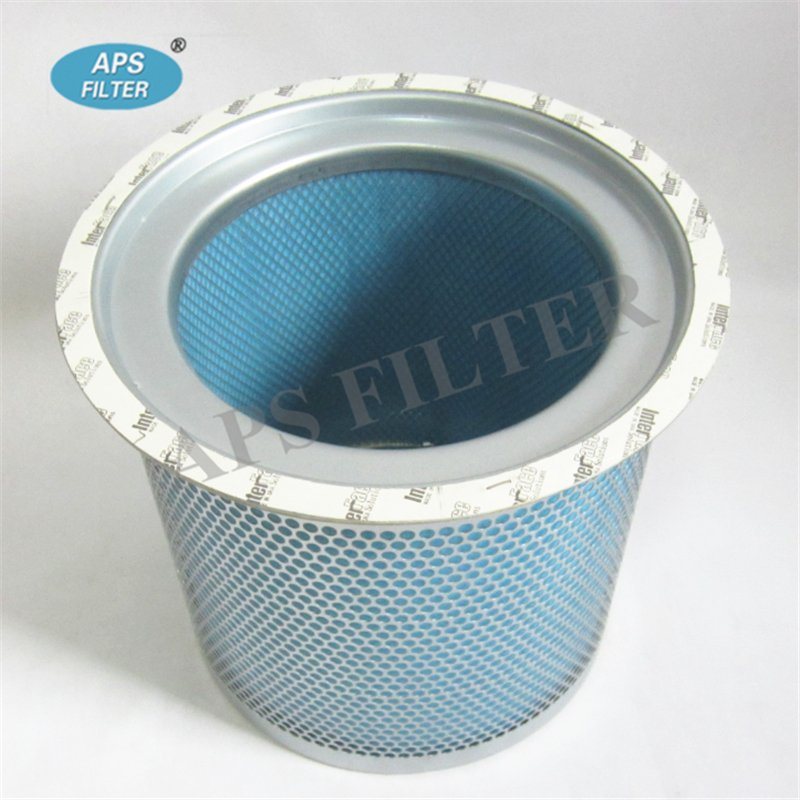

Replacement Air Compressor Oil Separator Filter (3422012501) for Airman

  • Factory price： There is no set price, you can ask the supplier to get a product quote
    Initial batch size：
     123412 ¥310
  • Delivery merchant：XinXiang APS Filter Technology Co., Ltd.
    • Model NO.： 3422012501 Trademark： APS Filter
    Transport Package： Carton Cases Specification： imported fiber glass material
    Origin： Xinxiang, China HS Code： 8421999090
    Port： Qingdao, China Production Capacity： 5000PCS/Month
    Payment Terms： L/C, T/T, Western Union, Paypal Customized： Non-Customized
    Standard Component： Standard Component Material： Fiber Glass
    Category： Oil Separator Size： Standard
    Rate： 0.1 Micron
  • Purchase type：
  • Offers：

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies，While supplies last。

  • Net content：5000g
  • Specifications：
  • Delivery to：

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity：
    Inventory0pieces
replacement air compressor oil separator filter (3422012501) for airman

APS Filter Screw air compressor Oil Gas Separator:
Working Principle:
Compressed air from the compressor head mixed with different sizes oil droplets. Larger sizes can be removed easily when they passed oil tanks, while small sizes (diameter less then 1um ) must be filtered through oil gas separator nmicron glass fiber filter layer.
After the diffusion of oil particles through filter material and the mechanism of inertia collision condensation, intercepted directly by filter material, finally make suspended oil particles in compressed air quickly condensed into oil droplets.
Under the action of gravity, Oil concentration at bottom of oil separator, through the bottom concave back inlet tubing then return to head lubricating oil system, at last compressor discharged purer oil-free compressed air.
Air oil separator is an essential component for air compressors. High quality oil separator element not only can guarantee the compressed air generated by compressor, and the separator working life up to thousands of hours.

replacement air compressor oil separator filter (3422012501) for airman specifications
Part number3422012501
Typeair compressor part--air oil separator
Oil contained in compressedbelow 3ppM
Filter mediamade by fiberglass imported from HV&Lydall company
Filtration efficiency99.99%
Initial pressure differential≤0.02Mpa
Service life4200h-5500h
Print print part number on the bottom, or as request

 Replacement Air Compressor Oil Separator Filter (3422012501) for Airman
Replacement Air Compressor Oil Separator Filter (3422012501) for Airman


APS Filter Air Compressor Oil Filter Specifications:

Oil filter is used to filter out impurities due to heat and air oxidation generated by air compressor. Usually oil filter is external spin-on, some models use inserted.
1.Filtration rate: 10-15 micron
2.Efficiency: 98%
3.Service lifetime: about 2000hrs
4.Filter media: Fiber glass
 Replacement Air Compressor Oil Separator Filter (3422012501) for AirmanReplacement Air Compressor Oil Separator Filter (3422012501) for Airman

Other air compressor part air oil separator filter part number for reference:

6.2003.0

6.2003.0/A1

6.1985.0

6.1985.0/A1

6.1931.0

6.1931.1

6.2008.1

6.2055.0

6.2055.0/A

6.1985.0

6.1985.10030A1

6.1963.0

6.1963.1

6.2011.0

6.2011.1

6.2084.0

6.1981.1

6.1960.0

6.2012.0

6.2012.1

6.1997.0

6.1981.0

6.1981.0/A1

6.2085.0

6.1965.0

6.1965.0/A2

6.2013.0

6.2182.0

6.2183.0

6.1979.1

6.1979 10020

6.3535.0

6.2185.0

6.1979.1

6.1979 10020

6.2132.0

6.1946.0

6.1964.0

6.2015.0

6.1968.0

6.2010.0

6.1989.0

6.1994.0

6.1995.0

6.1995.A

6.1996.0

6.2000.0

6.1962.0

6.2014.0

6.2029.0

6.3511.0

6.3569.0

P-CE-05-516

P-CE-05-532

P-CE-03-530

P-F-03-310

P-CE-03-512

P-F-04-3001

P-CE-03-521

P-CE-03-537


Xinxiang APS Filter Co.,Ltd. is a supplier of hydraulic oil filters, air compressor air/oil filters & oil gas separators, inline filter elment, vacuum pump exhaust filters. Insist on prodiving high quality elements, people-centered management principle, help customers to deal with filtration issues.

 Aps Offer Ingersoll Rand Air Filter (39708466) for Screw Compressor

Aps Offer Ingersoll Rand Air Filter (39708466) for Screw Compressor

FAQ:

Q1. What is your product range?
A:  Our products cover Hepa filter, Compressed air inline filters, Hydraulic filter, Fuel Filter, Oil filter, Air compressor filters , Honeycomb Filter and Some spare parts for compressors.

Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.

Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balancing.

Q6. What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.

Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment.
The specific delivery time depends on models and the quantity of your order.

Q8. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.

Q9. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Xinxiang APS Filter Co.,Ltd.
Contact: Ms Rachael H.
Tel: +0086-373-2701797
Mob: 008618738563259
