2018 latest 3D 4 wheel aligner for repair workshop with final promotion
MelodyDong's Whatsapp+8618689401703
| Adjust camera beam up and down through remote controller, Camera beam Length:2782mm |
| Column lift height: 1450-2110 |

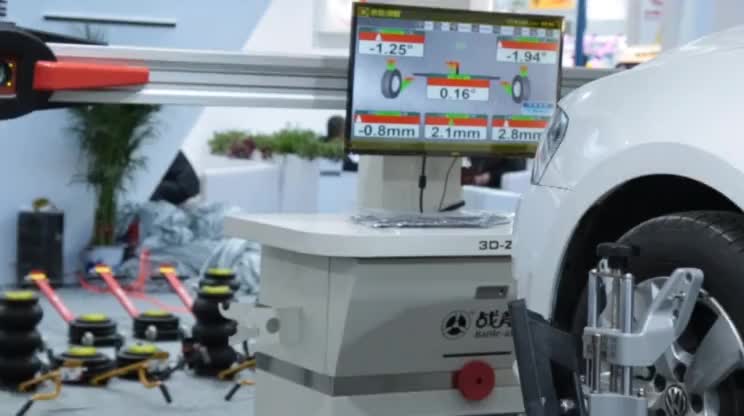

| 32''TV show Measuring data & Parking Turntable Function |
| with static measuring,Turn Wheels & Static Alignment measuring function |
| 2pcs 5 Mega pixel camera |
| One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc) |
| with Track width and Wheelbase measuring interface also |
| Calibration data Saved inside of Camera instead of Software |
| No need to Re-calibartion even Exchange Camera Inside Processor |
| With Parking Camera Function |
Parameters | Precision | Resolution | Measure Range |
| SAI/KPI | ±3′(±0.05º) | 0.6′(0.01º) | ±20º |
| CASTOR | ±3′(±0.05º) | 0.6′(0.01º) | ±20º |
| CAMBER | ±2′(±0.03º) | 0.6′(0.01º) | ±10º |
| TOE | ±2′(±0.03º) | 0.6′(0.01º) | ±10º |
| THRUST ANGLE | ±2′(±0.03º) | 0.6′(0.01º) | ±10º |
| TRACK WIDTH | ±2mm | 0.1mm | 1200-2200mm |
| WHEELBASE | ±2mm | 0.1mm | 1600-4200mm |
| WHEEL OFFSET | ±2mm | 0.1mm | ±200mm |
| LATERAL DEVIATION | ±2mm | 0.1mm | ±200mm |
| CASTOR OFFSET | ±2mm | 0.1mm | ±200mm |
| RIM SIZE | 12''-24 | // | // |
Software Database Bank
Worried About Infringing on Software? Kindly check Battle-Axe Software Proprietary Intellectual Property Rights
Q:How much mins your Wheel Alignment need to Alignment one Vehicle?
- Well it is Depends, if your people Familier With Our machine operate 45 seconds to get measuring data, adjustment not include
-it will be more fast,around 30 seconds Enough if you use "Front Alignment" or "Static Measuring"Function
Q:We also Worried about the target, you know sometime, people will damage it like vehicle pressed it and break it ..then the machine must to stop and i have to wait for new target, how about Battle-Axe?
-Battle-Axe Target Plate Adopted Original ABS material from Korea,very durable even Vehicle pressed on it ,still can working ,you can visit the Video above
-In case one target plate real break ,can not working any more , ok, 2 target plate break, No problem, your machine still can creat profit for your workshop , we have "Front Alignment Function"
-We sent you one or two new target plate, you just replacement .. NO NEED recalibration again
Q:i am Dealer and i want the Software with Our Brand Inside
-We Supply Freely OEM Service for Software service for Dealer as long as your Quantity can reach 20 set/year
-you can request us delate/Add any function or feature you want,make your brand more famous locally
Packaging & Shiping
| Item | Package Size | N.G/W |
| camera beam | 3050x400x430MM-1pcs | 20/31.5kgs |
| cabinet | 900x600x1300mm-1pcs | 135/169.5kgs |
3D-718S Wheel Alignment Overall Size
4S Dealership Workshop? Want Automatic Tracking Target Version?
Kindly Check 3D-ZD-8S and 3D-ZD-9S
-Warranty Period: within 12 months From Bill of loading date not including PC Unit including computer hard disk, LCD and Printer
-Computer, Printer and TV from China original, kindly check your local service center, or you can order our wheel aligner machine without computer,printer and LCD.. buy from local in order to get after service
-Easy spare parts like USB power line, insurance tube we will sent together with whole machine for future replacement, for other spare parts belongs to chargeble Range if replacement, Express cost beared by Buyer
BATTLE-AXE is the leading manufacturer of tyre service equipment in China, specializing in Dynamic 3D Wheel Alignment System, CCD wheel alignment, Scissor Tyre Lifting Equipment, and Pneumatic Car Jack Since 2002, Located in Zhongshan City Guangdong Province China Not Far From Hongkong & Macau..Nearest Sea Port is Guangzhou and Shenzhen.
FAQ:
Q:What is included in free spare parts?
A:Oil pipes, air pipes, air valves and oil pipe valves
Q:Can i be exclusive local representative?
A:We are looking for long term exclusive distributor worldwide. Welcome to join BATTLE-AXE.
Q:How many car lift model do you have?
A:We have 7 standard models. What's more we have strong R&D and customization ability to develop your own model.
Q:How long is the lifetime of BATTLE-AXE scissor car lift ?
A:At least ten years, under good preservation.
Q:What is needed for the installation of BATTLE-AXE scissor car lift?
A:#46 anti-wear hydraulic fluid. Forklift, at least 2 battens longer than 700mm.
Q:Can I design and dig my pit in my own way?
A:It depends. The drawing must be checked by BATTLE-AXE before digging. Otherwise we are not responsible for any working failures.
Also want to Install Alignment scissor lift for your workshop? Kindly Check Battle-Axe 3.5tons or 4tons Scissor lift FOLLOWING
