The service brake chamber is used when only the application of service brake air is required on an axle. There will be no emergency braking provided on this axle. You will find service brake chambers on steer axles, some rear axles, and old trailers that use a relay emergency valve to apply parking air pressure to the service chamber.

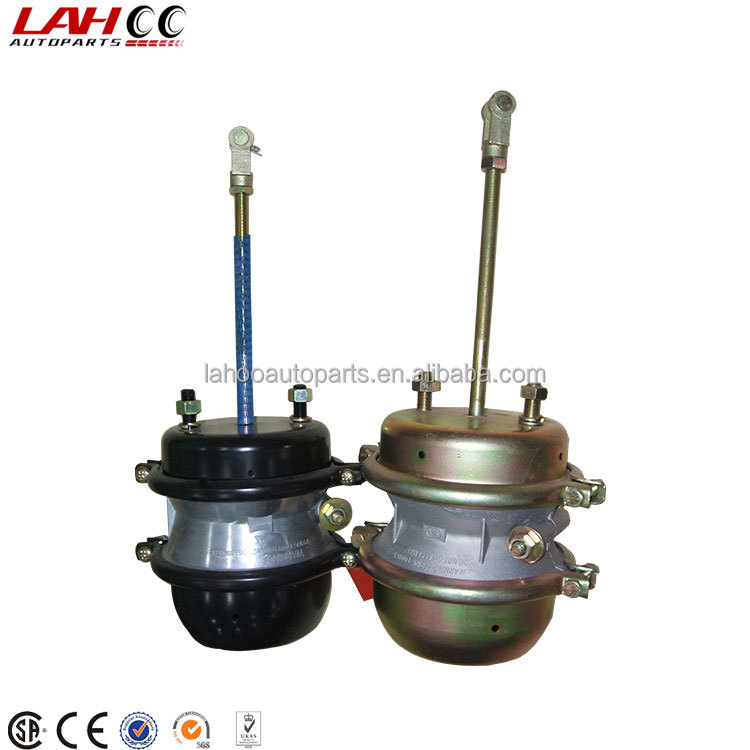

The spring brake assembly consists of the service brake and parking/emergency brake. The service brake is the section at the clamp closest to the axle. The diaphragm, pushrod and return spring may be serviced by removing the clamp. The spring/emergency brake is everything from the first clamp to the end farthest from the axle. The spring brake must be completely replaced if it is faulty.
Europe Brake Chamber Model List:
| ORIGINGAL NO: | STROKE | PORT THREAD | BOLT THREAD | BOLT CENTER | PUSH ROD THREAD | PUSH RODLENGTH |
| T30/30DD | 64/64 | 3/8NPT | M16×1.5;5/8NPT | 120.7 | M16×1.5;5/8NPT | 270mm |
| T24/24DD | 57/57 | 3/8NPT | M16×1.5;5/8 | 120.7 | M16×1.5 | 270mm |
| T24/30DD | 64/64 | 3/8NPT | M16×1.5 | 120.7 | M16×1.5 | 270mm |
| T30/30DD-E | 76/76 | 3/8NPT | M16×1.5 | 120.7 | M16×1.5 | 270mm |
| T30/30DP | 64/64 | M16×1.5 | M16×1.5 | 120.7 | M16×1.5 | 270mm |
| T24/30DP | 64/64 | M16×1.5 | M16×1.5 | 120.7 | M16×1.5 | 270mm |
| T24/24DP | 57/57 | M16×1.5 | M16×1.5 | 120.7 | M16×1.5 | 270mm |
| T16/24DP | 64/64 | M16×1.5 | M16×1.5 | 120.7 | M16×1.5 | 270mm |
| T30/24DD | 64/64 | M16×1.5 | M16×1.5 | 120.7 | M16×1.5 | 270mm |
American Spring Brake Chamber Model List:
| ORIGINGAL NO: | STROKE | PORT THREAD | BOLT THREAD | BOLT CENTER | PUSH ROD THREAD | PUSH RODLENGTH |
| T30/30 | 64/64 | 3/8NPT | 5/8NPT | 120.7 | 5/8NPT | 55/188/255/290mm |
| T24/24 | 57/57 | 3/8NPT | 5/8NPT | 120.7 | 5/8NPT | 100/206/245mm |
| T30/30 | 76/76 | 3/8NPT | 5/8NPT | 120.7 | 5/8NPT | 188/255/290mm |
| T24/30 | 76/76 | 3/8NPT | M16x1.5 | 120.7 | M16x1.5 | 209mm |
