Truck Drum Axle Bogie

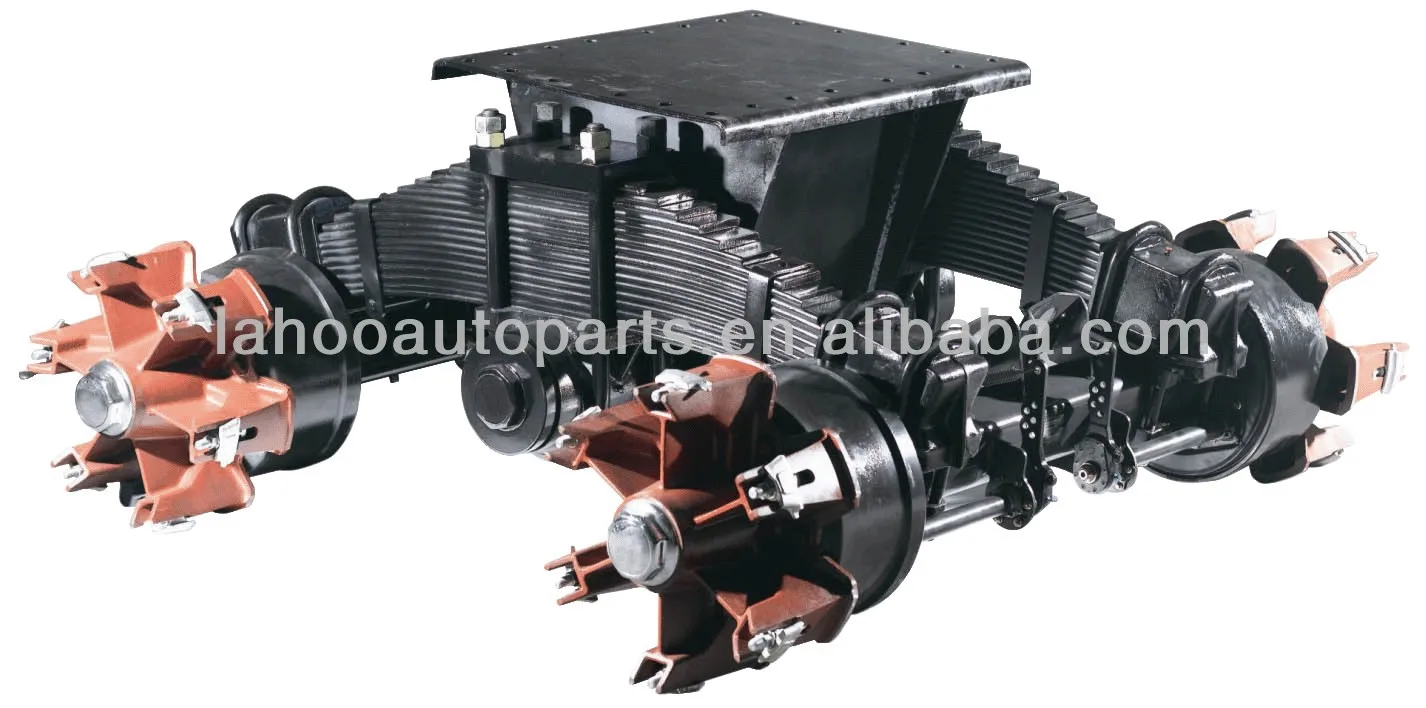

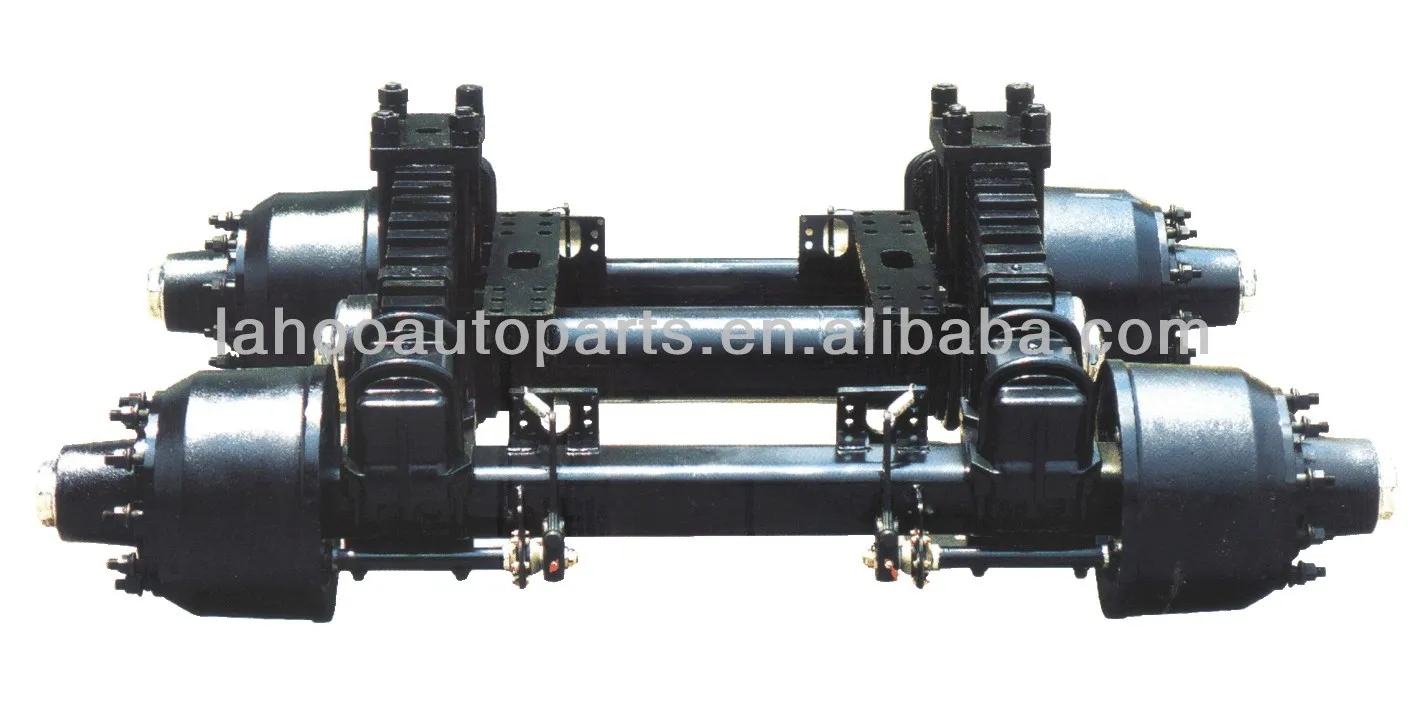

Lahoo Autoparts supplies a range sizes of bogies, including Drum bogie, Spoke bogie and Spider bogie.
1. Multi regular sizes fully satisfy market demand. Also provide customized service.
2. Type: Drum, Spoke, Spider
3. Excellent quality with competitive price
4. Popular in Africa, Mid-east, South American market etc.

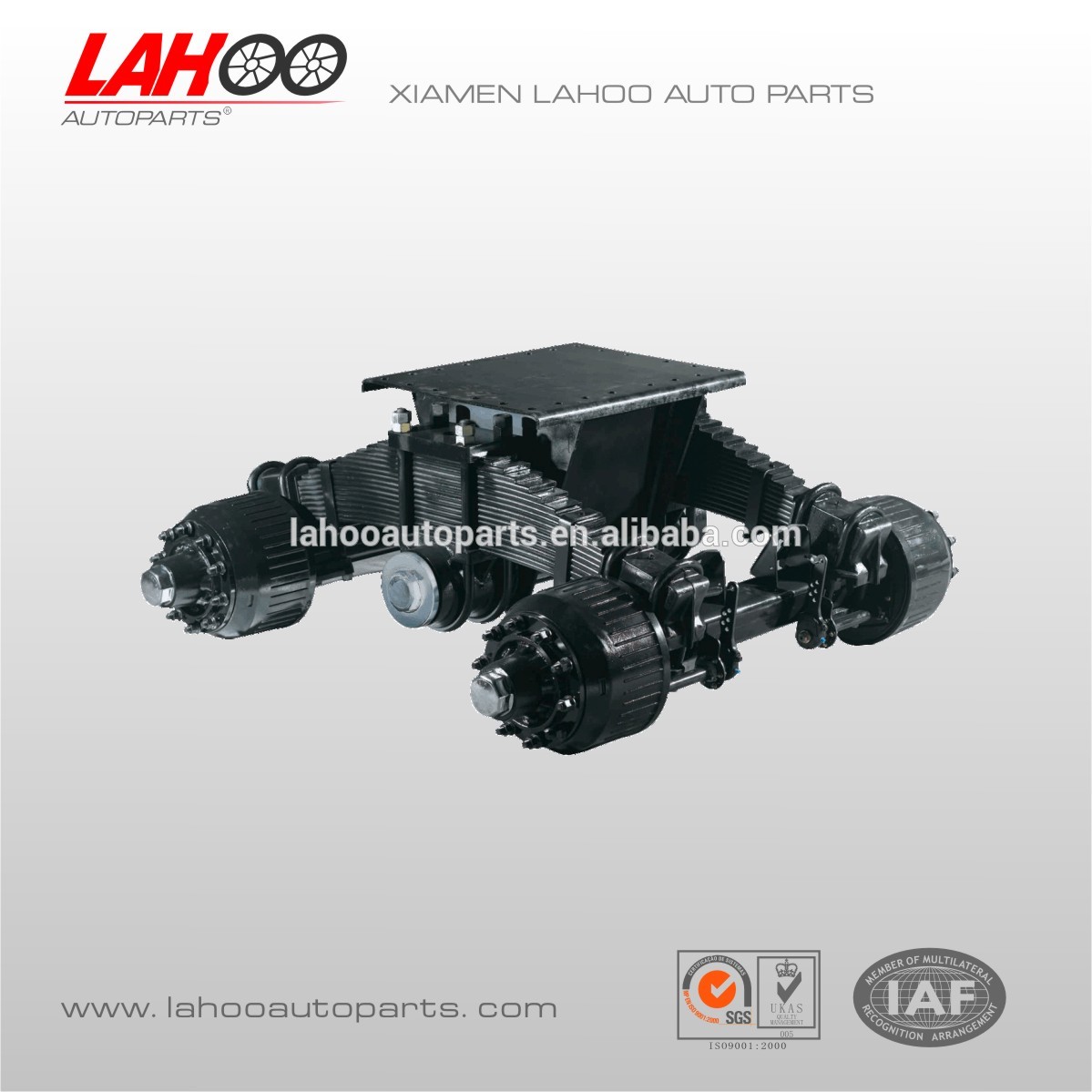

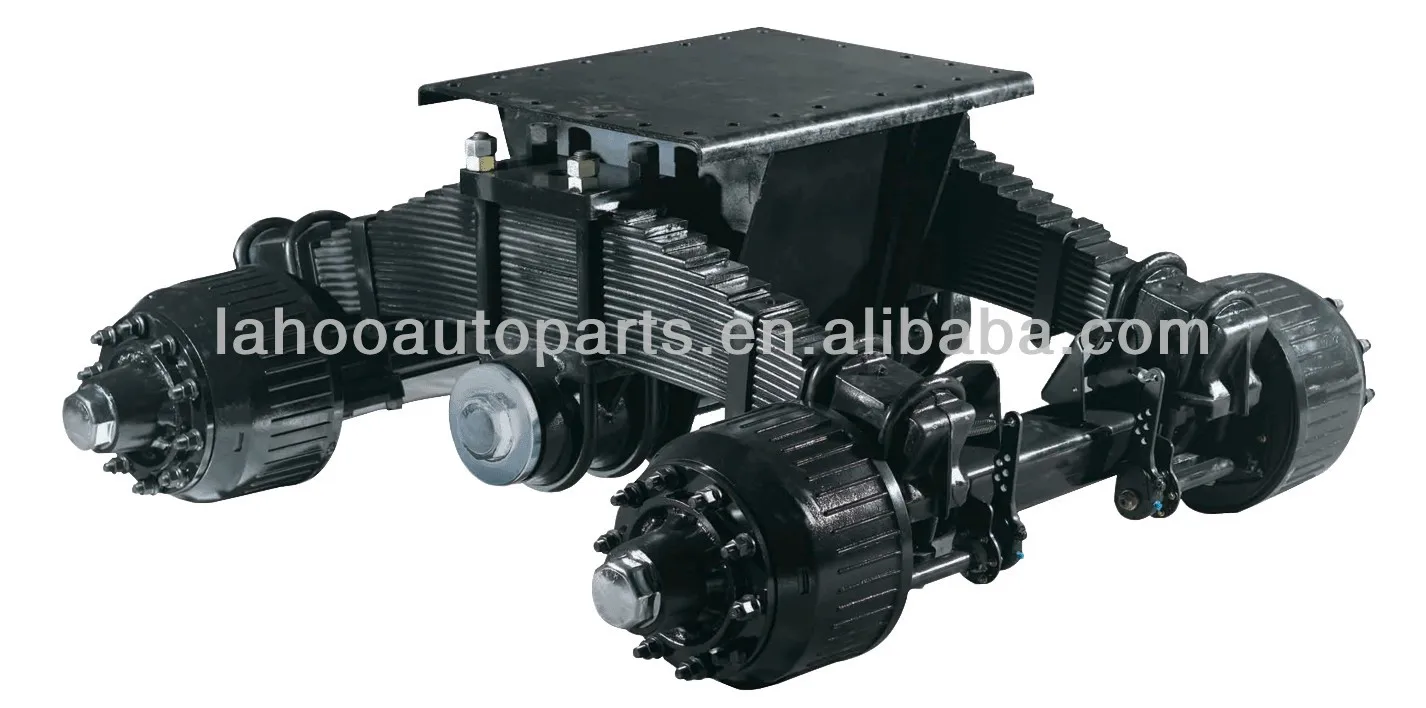

Drum Bogie:
| Item No. | Capacity (T) | Bearing | Axle Tube (mm) | Brake Spec.(mm) | Track (mm) | P.C.D (mm) | Tyre Screw | Steel Turn Position(mm) | Axle Space(mm) |
| LHBD24-A01 | 24 | 33213 33118 | 150×150×12 | Φ 420×180 | 1840 | Φ335 | 10-M22×2 | Φ280 | 1400 |
| LHBD28-A01 | 28 | 33215 32219 | 150×150×14 | Φ 420×200 | 1870 | Φ335 | 10-M22×2 | Φ280 | 1550 |
| LHBD32-A01 | 32 | 32314 32222 | 150×150×16 | Φ 420×220 | 1870 | Φ335 | 10-M22×2 | Φ280 | 1550 |
| LHBD40-A01 | 40 | 32314 32222 | 150×150×20 | Φ 420×220 | 1870 | Φ335 | 10-M22×2 | Φ280 | 1550 |
| Item No. | Capacity (T) | Bearing | Axle Tube(mm) | Brake Spec.(mm) | Track (mm) | P.C.D (mm) | Tyre Screw | Steel Turn Position(mm) | Axle Space(mm) |
| LHBD24-B01 | 24 | 33213 33118 | 150×150×12 | Φ 420×180 | 1840 | Φ335 | 10-M22×2 | Φ280 | 1400 |
| LHBD28-B01 | 28 | 33215 32219 | 150×150×14 | Φ 420×200 | 1870 | Φ335 | 10-M22×2 | Φ280 | 1550 |
| LHBD32-B01 | 32 | 32314 32222 | 150×150×16 | Φ 420×220 | 1870 | Φ335 | 10-M22×2 | Φ280 | 1550 |
| LHBD40-B01 | 40 | 32314 32222 | 150×150×20 | Φ 420×220 | 2120 | Φ335 | 10-M22×2 | Φ280 | 1550 |
If any question, please feel free to contact us.
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on
.
