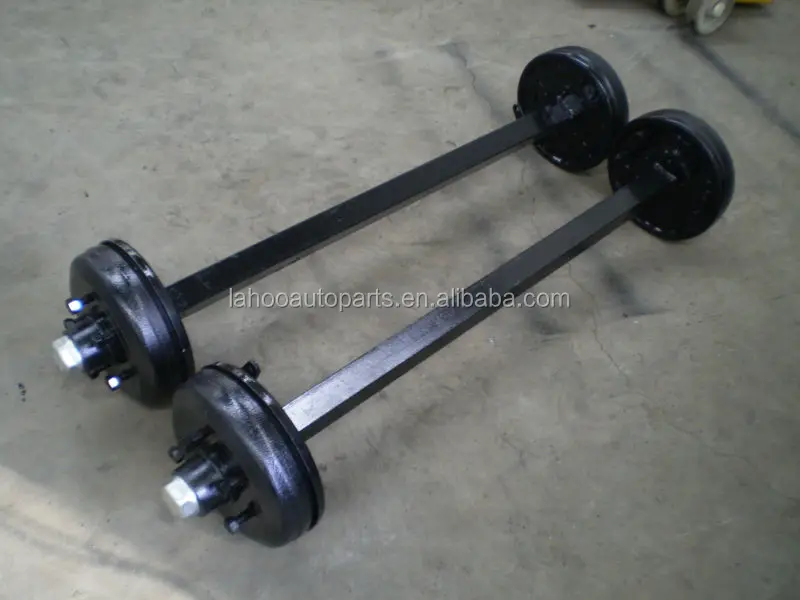

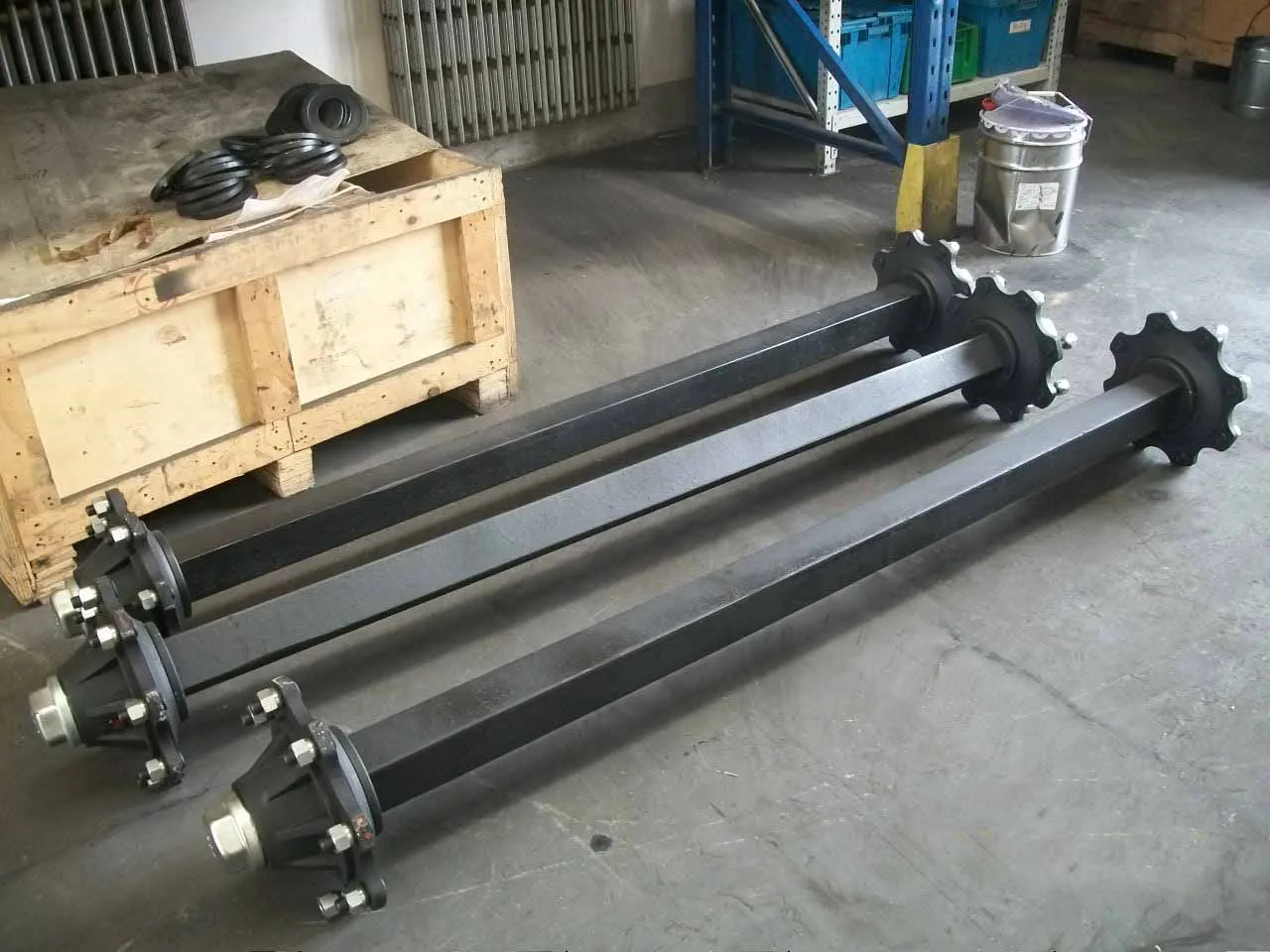

ATV Trailer Rear Axle Agricultura Use
1.Capacity:1-8T
2.Used: Tractors,Small Trailer & Agricultural Trailer & Boat trailer
3. Optional track length available
4.Optional ABS and automatic slack adjuster available
5.Optional S-cam length
6.Rights of changing product's design and specification are reserved
Specification:
| Item No. | Capacity (T) | Track (mm) | Axle Beam(mm) | Brake lever position(mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| L2 | D1×D2 | Inner/Outer | ||||||
| LHAH01-AG01 | 1 | 1600 | 40 | no | no | 4×M14×Φ130×84 | 30205-20207 | 35 |
| LHAH01-AG02 | 1.5 | 1600 | 45/45 | no | no | 6×1/2"×Φ139.7 | LM68149/10 LM12749/10 | |
| LHAH02-AG01 | 2 | 1600 | 50/ 50 | no | no | 6×1/2"×Φ139.7 | 25580/20 15123/15245 | |
| LHAD03-AG01B | 3 | 1600 | 50 | 470 | 255×60 | 6×M18×Φ205×160 | 30206-30209 | 65 |
| LHAH05-AG01 | 5 | 1600 | 60 | no | no | 6×M18×Φ205×160 | 30207-30211 | 60 |
| LHAD05-AG01B | 5 | 1600 | 60 | 470 | 255×60 | 6×M18×Φ205×160 | 30208-30211 | 100 |
| LHAH06-AG01 | 6 | 1600 | 70 | no | no | 6×M18×Φ205×160 | 30208-30213 | 85 |
| LHAD06-AG01B | 6 | 1600 | 70 | 470 | 300×60 | 6×M18×Φ205×160 | 30208-30213 | 120 |
| The track can be met according to customers' request. | ||||||||
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size.
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
