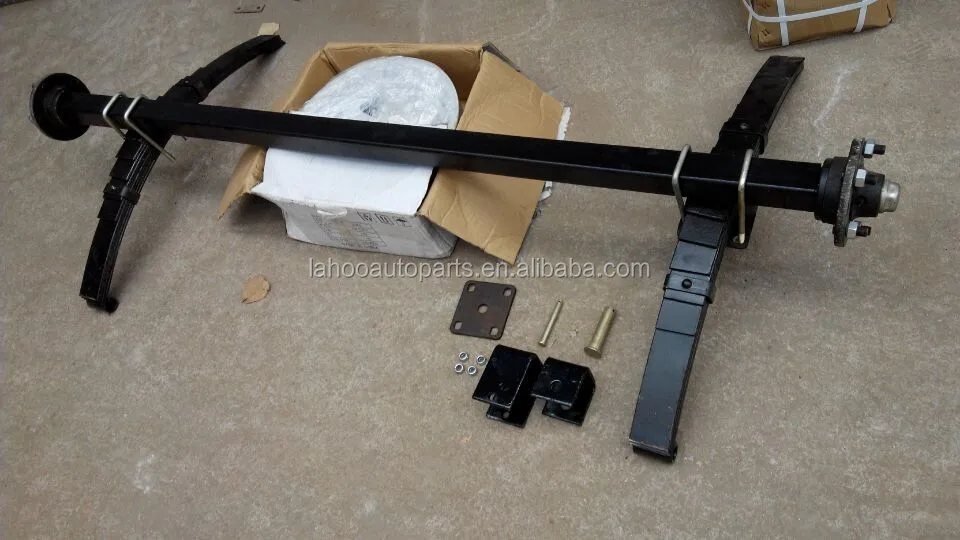

Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
Agricultural Trailer Single Axle Dimension:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Brake lever position(mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| L2 | D1×D2 | Inner/Outer | ||||||
| LHAH01-AG01 | 1 | 1600 | ◊70 | no | no | 4×M14×Φ130×84 | 30205-20207 | 35 |
| LHAH01-AG02 | 1.5 | 1600 | ◊45/ο45 | no | no | 6×1/2''×Φ139.7 | LM68149/10 LM12749/10 | |
| LHAH02-AG01 | 2 | 1600 | ◊50/ο50 | no | no | 6×1/2''×Φ139.7 | 25580/20 15123/15245 | |
| LHAD03-AG01B | 3 | 1600 | ◊50 | 470 | 255×60 | 6×M18×Φ205×160 | 30206-30209 | 65 |
| LHAH05-AG01 | 5 | 1600 | ◊60 | no | no | 6×M18×Φ205×160 | 30207-30211 | 60 |
| LHAD05-AG01B | 5 | 1600 | ◊60 | 470 | 255×60 | 6×M18×Φ205×160 | 30208-30211 | 100 |
| LHAH06-AG01 | 6 | 1600 | ◊70 | no | no | 6×M18×Φ205×160 | 30208-30213 | 85 |
| LHAD06-AG01B | 6 | 1600 | ◊70 | 470 | 300×60 | 6×M18×Φ205×160 | 30208-30213 | 120 |
