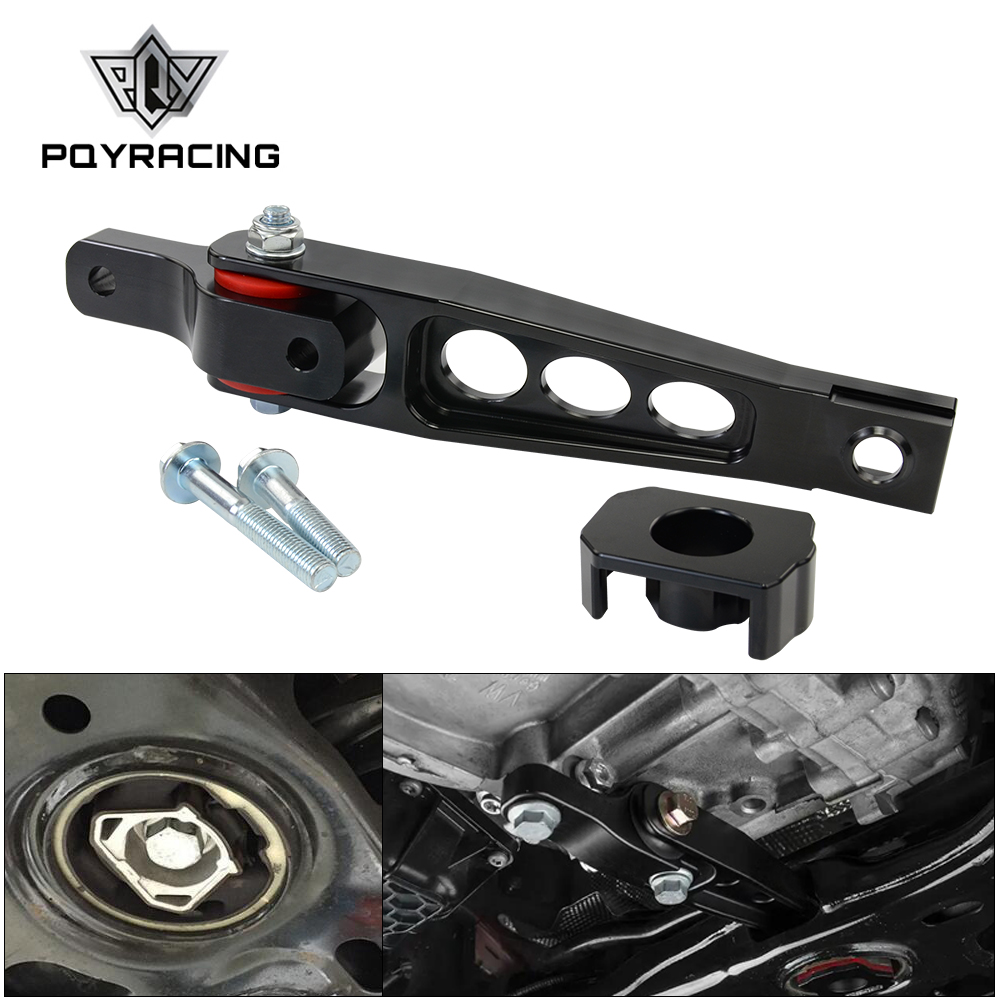

Spherical Pendulum Mount + Billet MQB Dogbone Mount Insert For 15+ VW Mk7 Golf R GTI 5Q0198037C TSB05+BMI02

  • Factory price： There is no set price, you can ask the supplier to get a product quote
    Initial batch size：
     123412 ¥310
  • Delivery merchant：Ruian Power Quality Auto Parts Co., Ltd.
    • Type： Enging Mount Kit Material： Aluminum and Steel
    Size： 00 Car Make： For 15+ VW Mk7 Golf R GTI
    Place of Origin： China (Mainland) Brand Name： PQY
    Model Number： TSB05+BMI02 Warranty： 12 Months
    Car Fitment： OTHER Model： OTHER
    Year： OTHER NAME： Enging Mount Kit
    MATERIAL： Aluminum and Steel WEIGHT： 0.944KG
    Finish： Spherical Pendulum Mount Application 1： For 15-Present Audi A3/S3 (8V - MQB)
    Application 2： or 16-Present Audi TT/TTS (MkIII - Application 3： For 15-Present Volkswagen Golf/GTI (
    Application 4： For 15-16 Volkswagen Golf R (MkVII -
  • Purchase type：
  • Offers：

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies，While supplies last。

  • Net content：5000g
  • Specifications：
  • Delivery to：

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity：
    Inventory0pieces

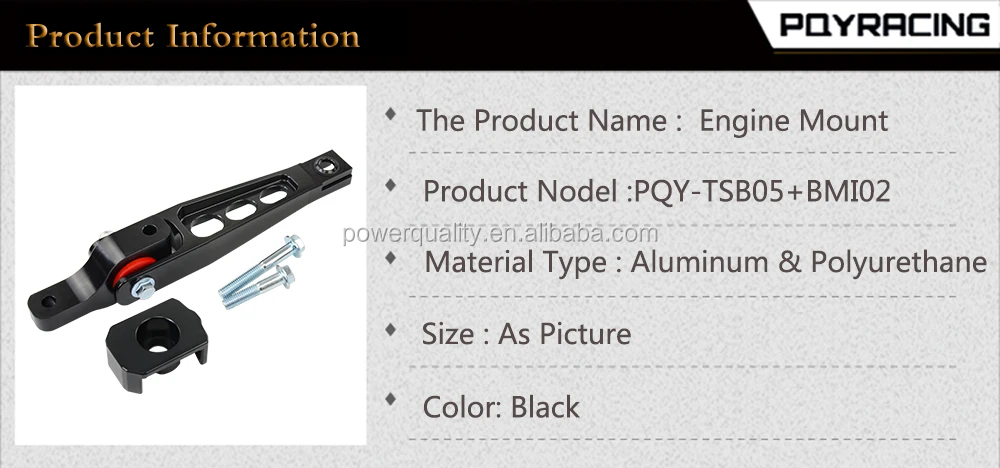

PQY - Spherical Pendulum Mount + Billet MQB Dogbone Mount Insert For 15+ VW Mk7 Golf R GTI 5Q0198037C TSB05+BMI02



Application:

  • For 15-19 Volkswagen Golf / GTI / Golf R (Mk7 MQB).

Vehicle compatibility charts are for REFERENCE ONLY. Check your vehicle with OEM below to match your needs.

Specification:

  • 100% quality assurance tested, more responsive, less expensive, easier to install.
  • Designed to fill the large void in the factory dog bone mount, and limit drive train movement without sacrificing ride quality or introducing excessive additional noise, vibration, or harshness into the cabin.
  • By filling the void in the factory mount, this insert eliminates the associated slop to ensure that you experience crisper shifts and a smoother driving experience.
  • Improves shifting feel, resulting in crisper shifts.
  • Reduces transmission movement during lunches and gear change.
  • Helps to minimize wheel-hop and torque steer.

There are two types of bonded rubber bushes. Most of the cars use type 2 bush except VW Golf that uses 1 or 2 type. If you own VW Golf please check picture if you need 1 or 2 type insert.

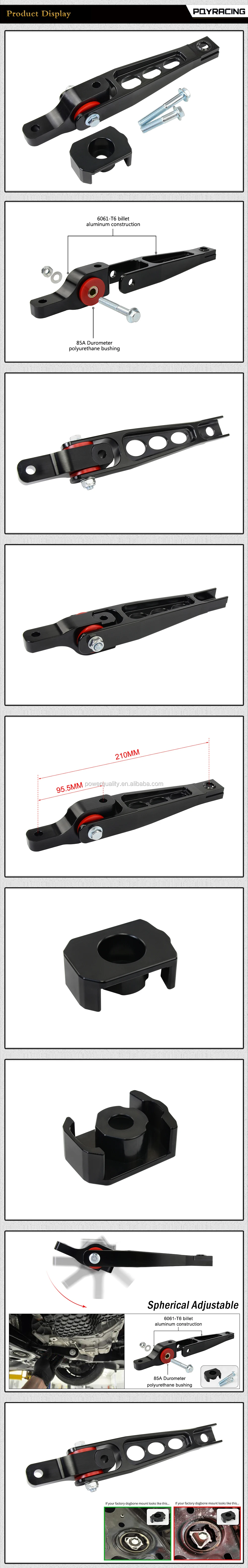

  • This dogbone mount was engineered with performance in mind, manufactured from billet aluminum and stainless steel, and features a Spherical Bearing to maintain proper articulation and reduce noise, vibration, harshness transfer.
  • The Billet Spherical Dogbone Mount is machined and assembled in-house, designed to eliminate the slop associated with the factory mount, and will better withstand the forces generated by hard launches.
  • The result is a locked-down drivetrain, crisper shifting, and virtually no wheel hop. The Motorsport Dogbone Mount will cause some increase in noise, vibration, and harshness inside of the cabin.
  • Bolt-In performance upgrade for factory dogbone mount.
  • Reduced drivetrain slop & engine movement under load.

Material & Color:

  • Material: made of high quality Aluminum and Steel and Poly.
  • Color: as picture.

Package Included:

  • 1x Pendulum Mount Kit.
  • 1x Dogbone Mount Insert.(100% Brand New Never Used Or Installed)
