Product name: Aluminum Tanker
Quick details:
Place of Origin: Foshan, China (Mainland)
Brand Name: MBPAP
Use: Truck Trailer
Type: Semi-Trailer
Material: Aluminum grade 5454-H32
Certification: SGS, ISO,CCC
Size:12160*2510*3660mm
OEM No.:3 axle fuel tank trailer
Max Payload:21-35ton
Model Number: fuel tank trailer
End plate:6mm
Tank Body:6mm
Axle: FUWA / BPW brand
Manhole cover:500mm manhole cover
King pin:50#
Tire:385/65 R22.5--11.75*22.5
Compartment:2/3/4/5/6
Bottom valve:1-2sets of bottom valve
Suspension: Mechanical suspension or Air bag
Painting: Sand blasting, Anti Corrosive primer

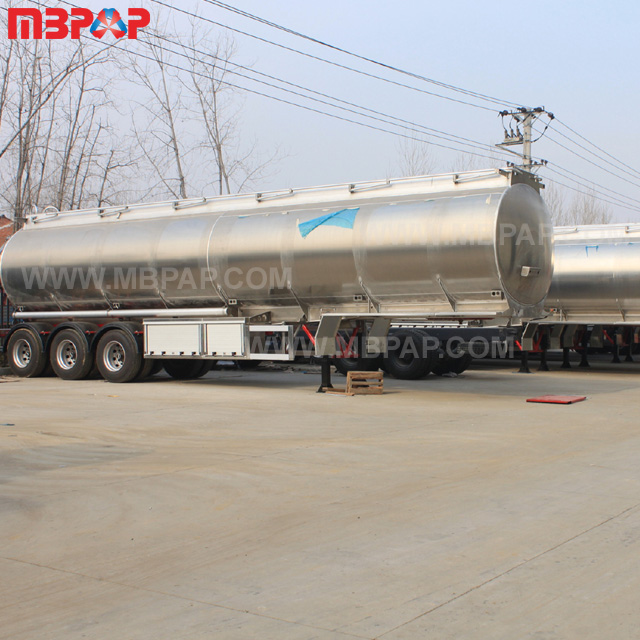

43m³ aluminum alloy oil transport semi-trailer
1. Vehicle dimension 12160*2510*3660mm
|
2. Tank dimension 11700*2500*1900mm
|
3.Matching the Benz or Volve tractor, the saddle of the tractor is 1320mm |
4.Total volume: 43m³,two warehouse equal;
|
5.Wheelbase :6226mm+1310mm+1310mm;
|
6.The front suspension/Rear overhang: 1050/2250mm;(the front suspension can adjust from 950mm to 1150mm)
|
7.Body material: Aluminum grade 5454-H32,the thickness of body 6(0.25,0.25)mm, the surface of the tanker should be shiny;
|
8. Axle: BPW 12T;
|
9. Suspension: BPW air suspension, the first axle can be lifted;
|
10 Leg: JOST A440S;
|
11. Traction pin: JOST 2”;
|
12. Tyre and Rim : 385/65 R22.5--11.75*22.5, bridgestone 6 units, FCT 7 units;
|
13. Loading and unloading system : OPW, installing oil and gas recovery system;
|
14. Braking system : WABCO ABS;
|
15. The pipe box : square box;
|
16 Climbing ladder : in the middle of the back;
|
17. Top : the anti-theft device, with lugs, with two strengthen supports, with stick slip;
|
18. Valve box : in accordance with the requirement of Aaudi Aramco, one door which is opened by flat push than up straightly;
|
19. With a 200L water box;
|
20. Electric road, label and protective device according to the standard of SNTO;
|
21. The thickness of the auxiliary beam is the same with HEIL, the material of the main and auxiliary beam is aluminum;
|
22. Two sets of spare tyre carrier are in the rear, with lifting device of rocking handle type .
|
Nude packing for 3 axle fuel tank trailer
20-30 days after received deposit
