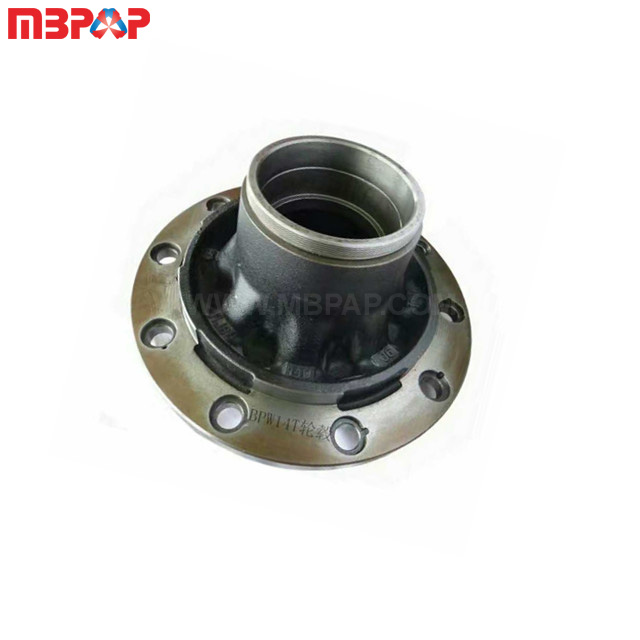

Product name:semi trailer wheel hub for BPW,FUWA,SAF,MAN,SCANIA,VOLVE
Description:
Wheel hub is an important part supporting gravity and whole body gravity of tire, and an important part connecting brake parts and axle. Therefore, it has high requirement on mechanical properties such as strength and hardness.
Quick Details
Place of Origin: Foshan, China (Mainland)
Brand Name: MBPAP
Truck Model: BPW
Certification:ISO/TS16949
OE NO.:OEM 0327248320
Material:QT450
Color: Any color you need
Surface treatment: paint-coating
Warranty: 1 Year
Specification:
Standard: | EN ,SAE ,GB |
Quality Standard | OEM |
Material Grade | QT450 |
Chemical composition | C:3.0~4.0%, Si:1.8~3.2%, Mn:0.7~0.9%, P:0.1~0.2%, S:0.1~0.12%. |
Mechanics performance | tensile strength: ≥ 400Mpa |
Elongation | 17 |
Non-Destructive Test | Metallurgical test |
Dimension inspection | dimension inspection report |
Production according to | customer's drawing or OEM number |

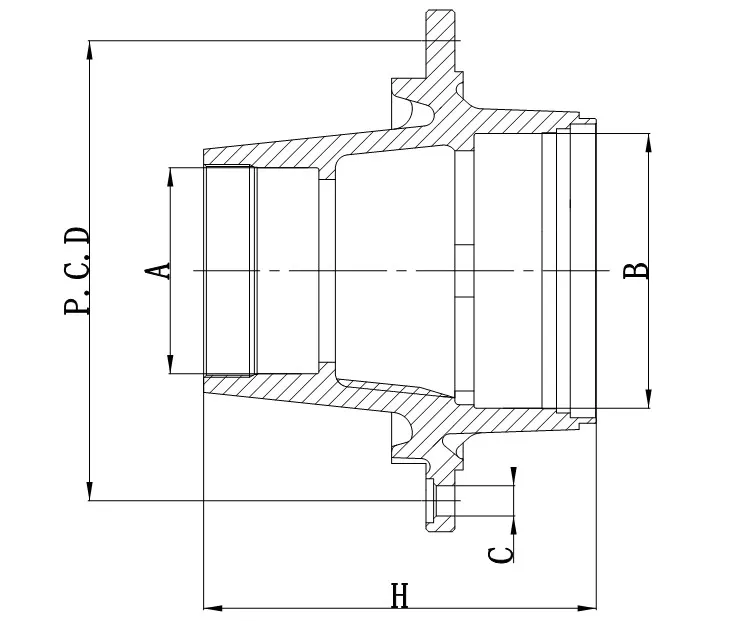

Type | OEM | Small Bearing (A) | Big bearing (B) | P.C.D | NO.Hole Size | Total Height (H) |
BPW | 0327248320 | ∅120 | ∅150 | ∅205 | 10-∅ 22 | |
0327262270 | ∅130 | ∅170 | ∅335 | 10-∅ 22 | 222 | |
0327280140 | ∅150 | ∅200 | ∅335 | 10-∅ 22 | 285 | |
HINO | 42411-6803 | ∅150 | ∅160 | ∅285 | 8-∅ 22 | 248 |
Maintenance:
1. Regular cleaning of the old grease in the inner cavity of the wheel hub, it should be replaced when there is a serious crack or severe scratch.
2. Put a thin layer of grease in the hub cavity and on the axle head, which plays the role of anti rust. Pay attention to the grease in the hub cavity not too much, otherwise it will affect the heat dissipation and braking.
Packaging Details: cartons & pallets
Delivery Time: 20 days after payment
FAQ
Q1. What is your terms of packing?
A: Generally, goods are sealed in ploy bags and packed in cartons and pallet or wood cases.
Q2. What is your terms of payment?
A: T/T (deposit + balance before delivery). We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 25 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample for free charge if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. How do you make our business long-term and good relationship?
A: We provide our clients with one-stop service, from specific component to final assembled products, solving various problem for different clients all over the world.
