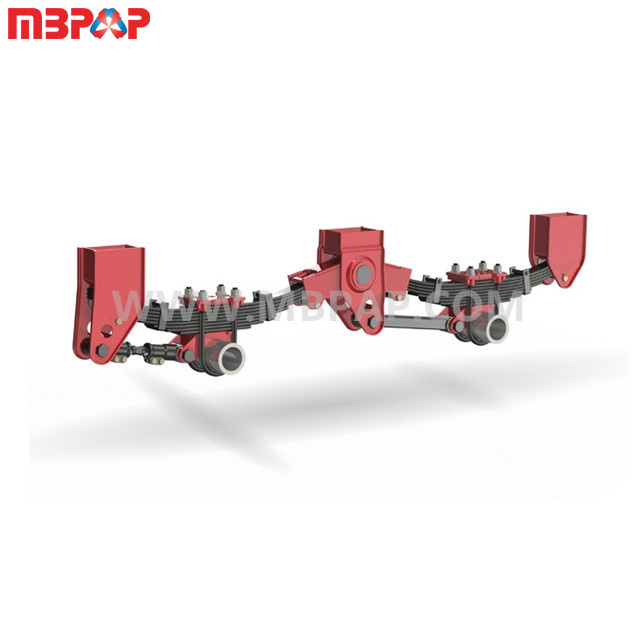

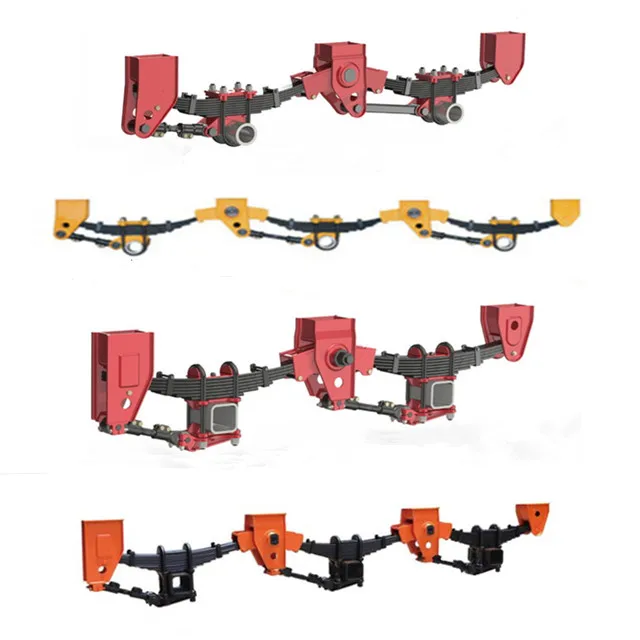

Product name:American/German mechanical suspension
Quick Details
Place of Origin | Foshan, China |
Brand Name | MBPAP |
Certificate | ISO 9001 |
Use | Trailer Parts |
Parts | Trailer Suspension |
Max Payload | 16T*3,16T*2,16T*1 |
Size | H18 or as your request |
Material | Q235 |
Type | American style suspension |
Width | 90/100 mm of suspension |
Balance arm pin | 50#,60#,70# |
U-bolt | square & round u-bolt |
Torque arm | adjustable & fixed type |
Wheel base | 1310/1360/1500mm |
Sidewall thickness | 6/8/10mm |
Parameters:
Item | Material | Specification | Remark |
Front Hanger |
Q235B | 5/6/8MM | Recommended standard configuration based on payload or as request. |
Middle Hanger | 5/6/8MM | ||
Rear Hanger | 5/6/8MM | ||
Balance Beam | 10/12mm | ||
Balance Beam Axis | 45# | 50#/60#/70# | |
Leaf Spring Assembly | 60Si2Mn |
| |
U-bolt | 40Cr | 22/24mm |
|
Upper and Lower Axle seat | ZG230-450 | 150 /127 |
|
Adjustable Torque Arm Screw | Q235B | L |
|
Shock-proof Bush | Nylon/Rubber | ∅28/∅36 |
|
ltem | Axle Load T | Wheel base | Axle Beam | Axis high | Sugggested leaf spring | ||
A1 | A2 | A3 | |||||
0311.6111.00 | 11 | 1310 | 150 | 440 | 440 | 440 | 75*13mm-8pcs |
0311.6211.00 | 11 | 1360 | 150 | 440 | 427 | 415 | 75*13mm-8pcs |
0311.6212.00 | 11 | 1360 | 127 | 440 | 440 | 440 | 75*13mm-8pcs |
0311.6112.00 | 11 | 1310 | 127 | 440 | 427 | 415 | 75*13mm-8pcs |
Packaging Details: pallets
Delivery Time: 20 days after payment
FAQ
Q1. What is your terms of packing?
A: Generally, goods are sealed in ploy bags and packed in cartons and pallet or wood cases.
Q2. What is your terms of payment?
A: T/T (deposit + balance before delivery). We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 25 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample for free charge if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. How do you make our business long-term and good relationship?
A: We provide our clients with one-stop service, from specific component to final assembled products, solving various problem for different clients all over the world.
