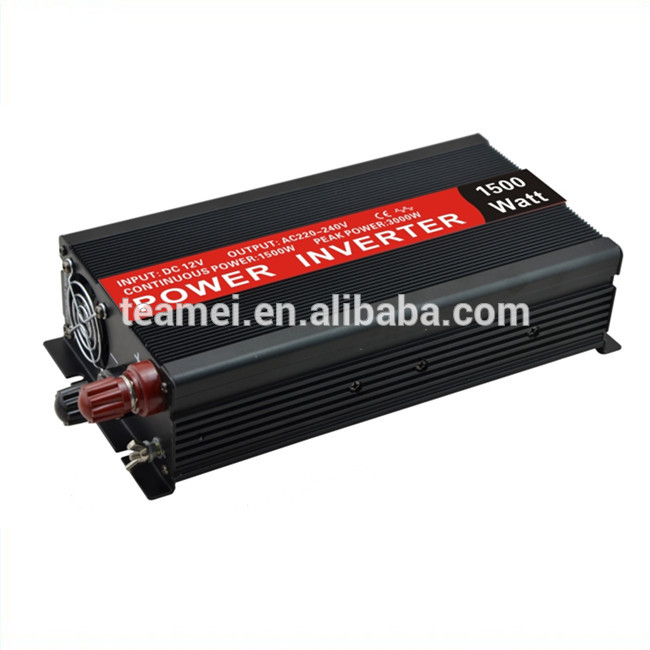

1500W DC to AC Modifine Sine Wave Solar Power Inverter with USB

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：Fuyi Auto Parts High Quality Goods Market Dongxing Car Accessories Firm

Place of Origin：	Guangdong, China (Mainland)	Brand Name：	Tanyano
Model Number：	THA1500W	Output Type：	Single
Size：	29513065mm, 29513065mm	Weight：	2.45Kg
Input Voltage：	DC 12V	Output Voltage：	AC 100V-120V/210-240V
Type：	DC/AC Inverters	Output Frequency：	50Hz-60Hz
Output Current：	13A	Product name：	1500W DC to AC Modifine Sine Wave Sol
Output Power：	1500W	Color：	Black
Multi Protection：	Yes	Case material：	Aluminium Alloy
Output waveform：	Midified Sine Wave	Warrenty：	1Year
Export Market：	All over the world	MOQ：	50pcs

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

1500W DC to AC Modifine Sine Wave Solar Power Inverter with USB

Product Description

Protection Function:

(1)over load;

(2)Over temperature;

(3)Over voltage;

(4)Low voltage;

(5)Reserve connect protection;

(6)Over current;

(7)Short circuit;

(8)Internal built in fuse;

(9)Buzzer alarm

Technical Parameters:

Model	THA1500	THB1500	WTHA1500
Input Voltage	DC 12V	DC 24V	DC 12V
Working Voltage	DC 9.5V-15.5V	DC 20-30V	DC 9.5-15.5V
Input Current	125A	63A	125A
Conversion Efficiency	>85%
Continuous Power	1500W
Peak Power	3000W
Output Voltage	AC 100V-120V/210-240V
Output Current	13A/6.8A
Output Frequency	50Hz-60Hz
Wave Form	Modified Sine Wave
USB Output Voltage	DC 5V(800mA)
Thermal Protection	≥70℃
Operating Temperature	0℃~40℃
Cooling	By Intelligent Fan
Under Voltage	10±1V	20±1	10±1
Over Voltage	15±1V	30±1	15±1
Protections	Undervoltage: LED red light, buzzer alarm, restart recovery
	Overvoltage: LED red light, restart recovery
	Overload,high temperature: LED red light, restart recovery
	Reverse connect: Blown fuse
Net Weight	1940g
Gross Weight	2444g
Size	29513065mm
Carton	530310430mm 10Piece/Carton

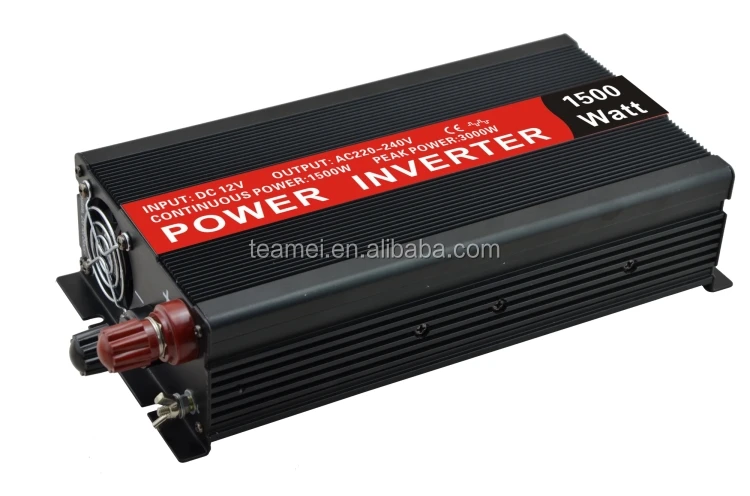

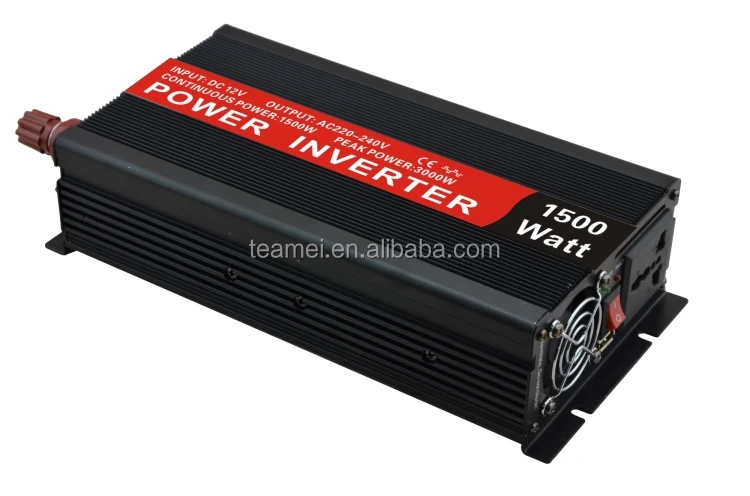

Product Show:

Features:

1) Protections: low-voltage, over voltage, over load, over temperature.

2) Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.

3) Advanced automatic constant circuit, prolong battery life.

4) Perfect protection against battery under voltage, overload, short-circuit.

5) Microprocessor control guarantees high reliability.

6) Can work with inductive load such as air conditioner, motor door and so on.

7) The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.

8) Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.

9) With 100% full power, efficiency reaching up to 85%.

10) Isolated output.

11) Soft start.

12) USB charging port +5VDC, 500mA.

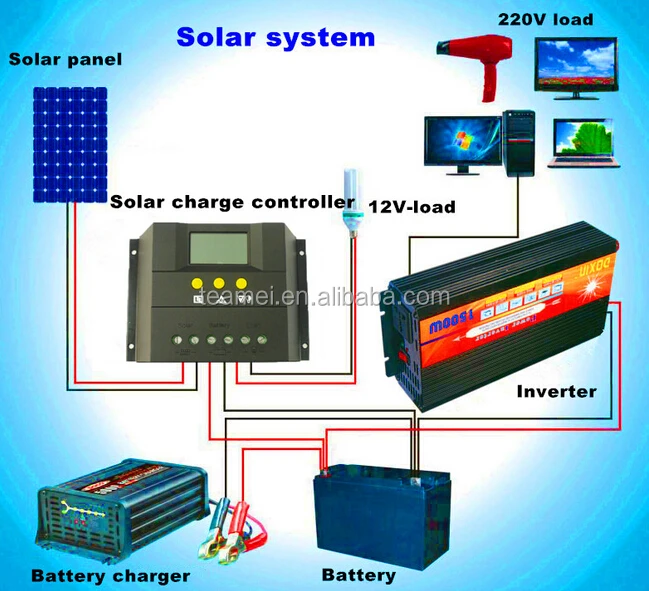

Applications:

Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.

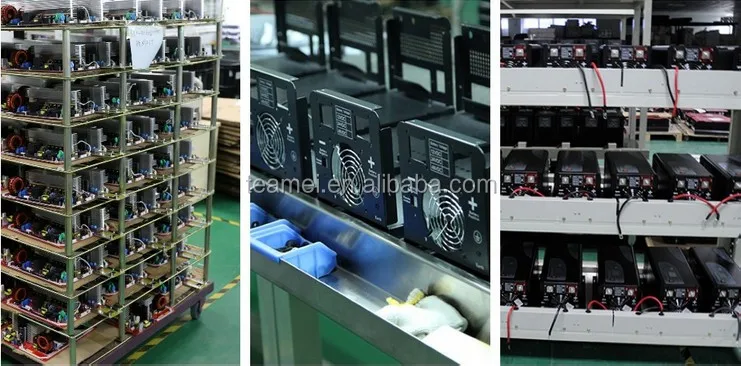

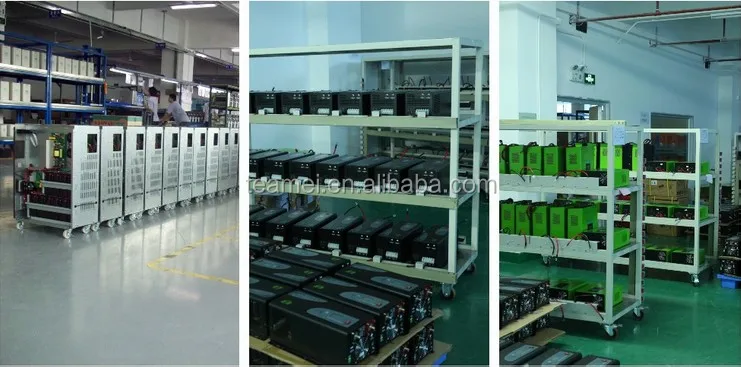

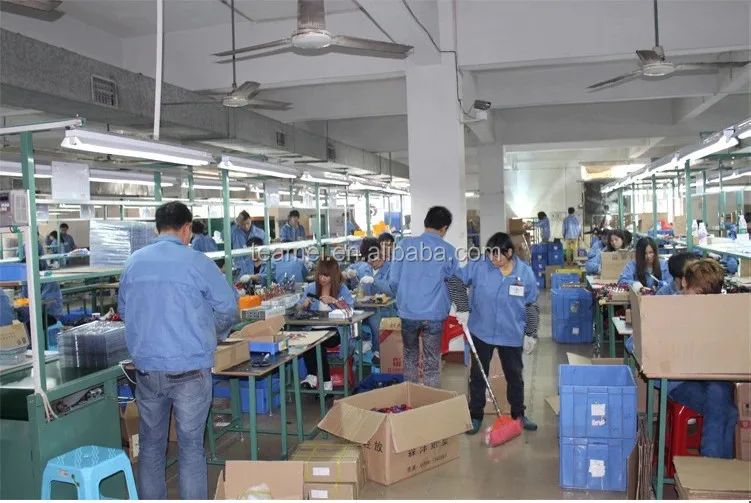

Factory Views:
