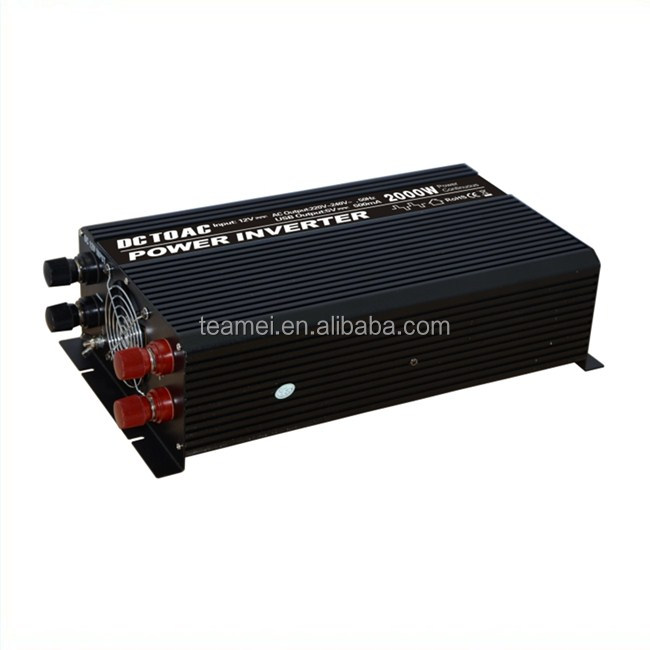

2000W DC to AC Modifine Sine Wave Converter Power Inverter

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：Fuyi Auto Parts High Quality Goods Market Dongxing Car Accessories Firm

Place of Origin：	Guangdong, China (Mainland)	Brand Name：	Tanyano
Model Number：	THA 2000W	Output Power：	2000KW, 2000W
Output Type：	Single	Size：	390200100mm
Weight：	5kg	Input Voltage：	DC 12V
Output Voltage：	AC 100V-120V/210-240V	Type：	DC/AC Inverters
Output Frequency：	50Hz-60Hz	Output Current：	13A
Product name：	2000W DC to AC Modifine Sine Wave Con	Color：	Black
Dimension：	390200100mm	Multi Protection：	Yes
Case material：	Aluminium Alloy	Output waveform：	Midified Sine Wave
Warrenty：	1Year	Export Market：	All over the world
Advantage：	High qaulity and competitive price

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

2000W DC to AC Modifine Sine Wave Converter Power Inverter

Product Description

Protection Function:

(1)over load;

(2)Over temperature;

(3)Over voltage;

(4)Low voltage;

(5)Reserve connect protection;

(6)Over current;

(7)Short circuit;

(8)Internal built in fuse;

(9)Buzzer alarm

Technical Parameters:

Model	THA2000		THB2000	WTHA2000
Input Voltage	DC 12V		DC 24V	DC 12V
Working Voltage	DC 9.5V-15.5V		DC 20-30V	DC 9.5-15.5V
Input Current	167A		83A	167A
Conversion Efficiency	>85%
Continuous Power	2000W
Peak Power	4000W
Output Voltage	AC 100V-120V/210-240V
Output Current	18A/9A
Output Frequency	50Hz-60Hz
Wave Form	Modified Sine Wave
USB Output Voltage	DC 5V(800mA)
Thermal Protection	≥70℃
Operating Temperature	0℃~40℃
Cooling	By Intelligent Fan
Under Voltage	10±1V	20±1			10±1
Over Voltage	15±1V	30±1			15±1
Protections	Undervoltage: LED red light, buzzer alarm, restart recovery
	Overvoltage: LED red light, restart recovery
	Overload,high temperature: LED red light, restart recovery
	Reverse connect: Blown fuse
Net Weight	4500g
Gross Weight	5000g
Size	390200100mm
Carton	510485550mm 4Pieces/Carton

Product Show:

Features:

1) Protections: low-voltage, over voltage, over load, over temperature.

2) Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.

3) Advanced automatic constant circuit, prolong battery life.

4) Perfect protection against battery under voltage, overload, short-circuit.

5) Microprocessor control guarantees high reliability.

6) Can work with inductive load such as air conditioner, motor door and so on.

7) The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.

8) Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.

9) With 100% full power, efficiency reaching up to 85%.

10) Isolated output.

11) Soft start.

12) USB charging port +5VDC, 500mA.

Applications:

Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
