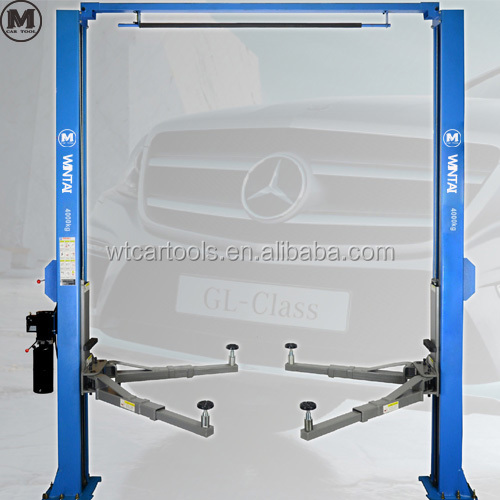

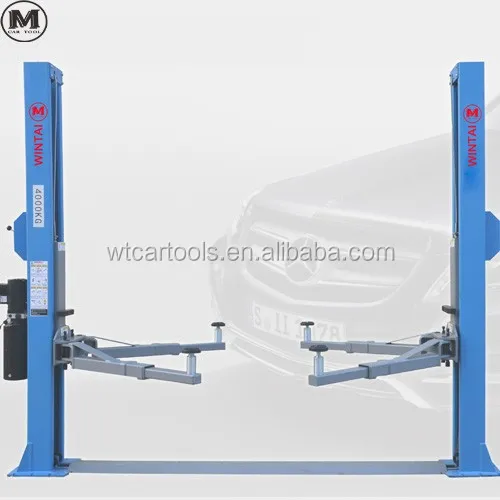

4000KGS high quality clear floor 2 post car lift

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Guangzhou Wintai Car Tools Co., Ltd.
  • Design: Two Post Type: Double Cylinder Hydraulic Lift, 2 post
    Certification: CE Lifting Capacity: 4000kg
    Lifting Height(mm): 1870mm Overall Width(mm): 3420mm
    Place of Origin: Guangdong, China (Mainland) Brand Name: WINTAI
    Model Number: 240L Warranty: 1 Years
    Color: red,grey,blue,yellow Voltage: 110v 220v 240v 380v Optional
    Lifting Time: 50s Descending time: 30s
    Motor Power: 2.2KW Total height: 2820mm
    Inner width: 2860mm lifting capacity: 4000kgs
    Support arm: 2 steps, 3 steps
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces
Product Description

Product Application

4000KGS high quality clear floor 2 post car lift is widely used in garage, auto maintenance shop

Main Features

Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
Japanese oil sealing elements, overload protection, international brand oil pipe.
Direct driven by twin cylinders with safety steel wire as synchronization.
Polymer wear-resistance slider
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Gantry type, no obstruction on the floor.
Roof protection safety device, automatic arm lock by built in ratchet tooth.
Shot blasting and high temperature baking powder coated surface finish.
Pass CE 6T static test and 4.6T dynamic test.

Parameter:
Model   240L
Lifting Capacity   4.0T
Min Height    105/85mm
Lifting Height    1870mm
Rise Time    50s
Descending Time   30s
Motor Power   2.2KW
Voltage   220V/380V
Total Height   3900mm
Inner Width   2860mm
Total Width   3420mm
Details
Details


 Details

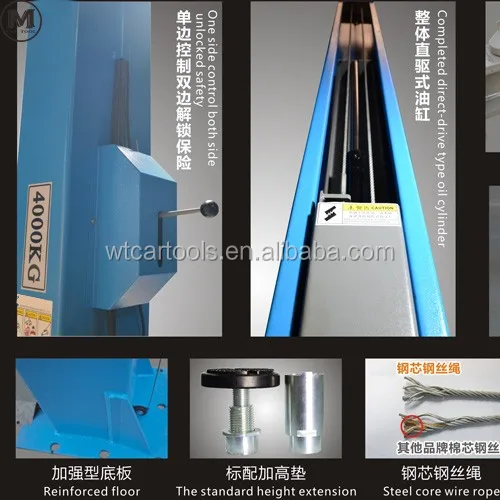

Single side control both sides unlock safety
Complete direct-drive type oil clinder
Extra high extension

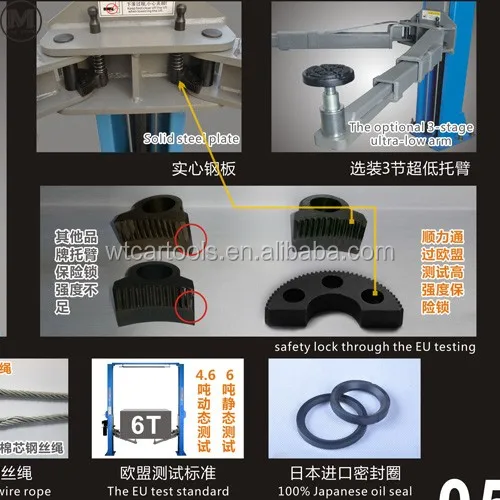

Solid steel plate


Packaging



Details
3 steps arm is optional
Steel core wire rope
reinforced floor basement
Strong safety lock
imported seal
