wide floor plate two post car lift 4000KGS

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Guangzhou Wintai Car Tools Co., Ltd.
  • Design: Two Post Type: Double Cylinder Hydraulic Lift, 2 post
    Certification: CE Lifting Capacity: 4000kg
    Lifting Height(mm): 1870mm Overall Width(mm): 3420mm
    Place of Origin: Guangdong, China (Mainland) Brand Name: WINTAI
    Model Number: 240D Warranty: 1 Years
    Color: red,grey,blue,yellow Voltage: 110v 220v 240v 380v Optional
    Lifting Time: 50s Descending time: 30s
    Motor Power: 2.2KW Total height: 2865mm
    Inner width: 2860mm lifting capacity: 4000kgs
    Support arm: 2 steps, 3 steps
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces
Product Description

Product Application

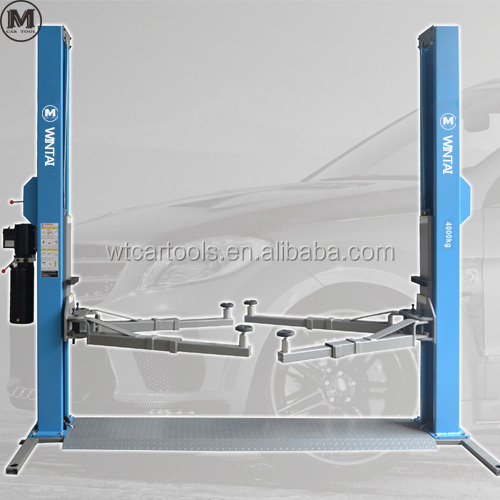

wide floor plate two post car lift 4000KGS

4000KGS wide floor plate two post car lift is widely used in garage, auto maintenance shop.

This model use wider floor plate so it's more endurable.

Main Features

Driven by double hydraulic cylinders, steel wire chain-type elevating system.
Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Optional :3-Stage screw-up pads suitable for low chassis vehicle as well as SUV, makes easy and quick service.
Door opening protection rubber as standard.
Laser cutting surface.
Shot blasting and high temperature baking powder coated surface finish.
Japanese oil seal.
Pass CE 6T static test and 4.6T dynamic test.


Model 240D
Lifting Capacity 4.0T
Min Height 105/85mm
Lifting Height 1870mm
Rise Time 50s
Descending Time 30s
Motor Power 2.2KW
Voltage 220V/380V
Total Height 2865mm
Inner Width 2860mm
Total Width 3860mm

Details
Details


 Details
Single side control both sides unlock safety
Extra high extension
Solid steel plate
3 steps arm is optional

Packaging



Details
Steel core wire rope
reinforced floor basement
Strong safety lock
imported seal
