Professional Tilt-back automatic tire changer with help arms

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：Guangzhou Wintai Car Tools Co., Ltd.

Motor Power：	0.75/1.1KW	Max. Rim Diameter：	1120 mm(44")
Max. Rim Width：	460 mm(16")	Operating Pressure：	8-12 bar
Power Supply：	110V / 220V /380V	Place of Origin：	Guangdong, China (Mainland)
Brand Name：	WINTAI	Model Number：	WRB-093H
Warranty：	1 Years	Automatic：	yes
help arm：	yes	Tilt-back：	yes
Rims：	10"-26"	Color：	Blue,Grey,Red
Bead breaker power per cylinder：	2800 kg	Self-centering rotation speed：	6-12rpm
Net weight：	360kgs	MOQ：	1
Package：	export package

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

Product Description

Product Application

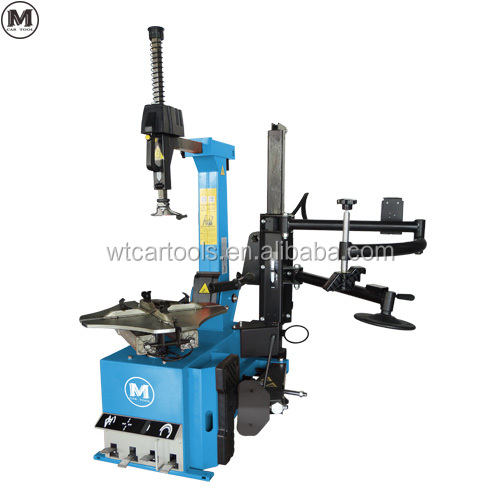

Professional Tilt-back automatic tire changer with help arms.

Applicable to small and medium car, support explosion-proof tire, low/flat tire and tubeless tire

Parameter
Max. Wheel diameter	1120 mm(44”)
Max. Wheel width	460 mm(16”)
Rim clamping from inside	12”-26”
Rim clamping from outside	10”-24”
Power supply	110V / 220V /380V
Working pressure	8-12 bar
Bead breaker power per cylinder	2800 kg
Self-centering rotation speed	6-12rpm
Net weight	360 kg

Main Features

Standard configuration:
Help 5 auxiliary pneumatic lever arm means
Double and single crank pressure tire design, tire fitting job Multi-assisted pressure tires. The lower plate, in the demolition process can be assisted tire tire lifts. One lifting slide design, with fine-tuning to ensure smooth lifting and stability, more efficient and easier to use.
Backward curved arms designed ,so the top hub chuck can expand more room for operation and avoid accidental injury when clamping hub.
The trapezoid column base and housing overall box welding design, fully ensure the high intensity
Operation under the bearing structure, the overall stability and reliability.
Using 3mm thickness steel plate combined cabinet, firm structure, Weld concealment, beautiful appearance.
High strength tire changer head, adapt to strong job, a small amount of deformation, longer service life.
Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion
resistance, longer life. Drawer control assembly, simple structure , fast and easy maintenance.
Best quality all-aluminum copper motor with advantages of faster heat dissipation, low loss, high power.
180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
Thickness is 15 mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise (fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure

Remark:

1. Free crowbar dismantling head is optional.

2. Tire lifting device is optional

3. Vertical Column for pressure gauge is optional
