Grand Auto is one collection development, production and marketing in one of the auto parts company, after years of unremitting innovation and initiative, has now developed into a well-known auto parts supply providers. Company mainly supply belts and brake pads while expanding other related auto parts and domestic car parts.

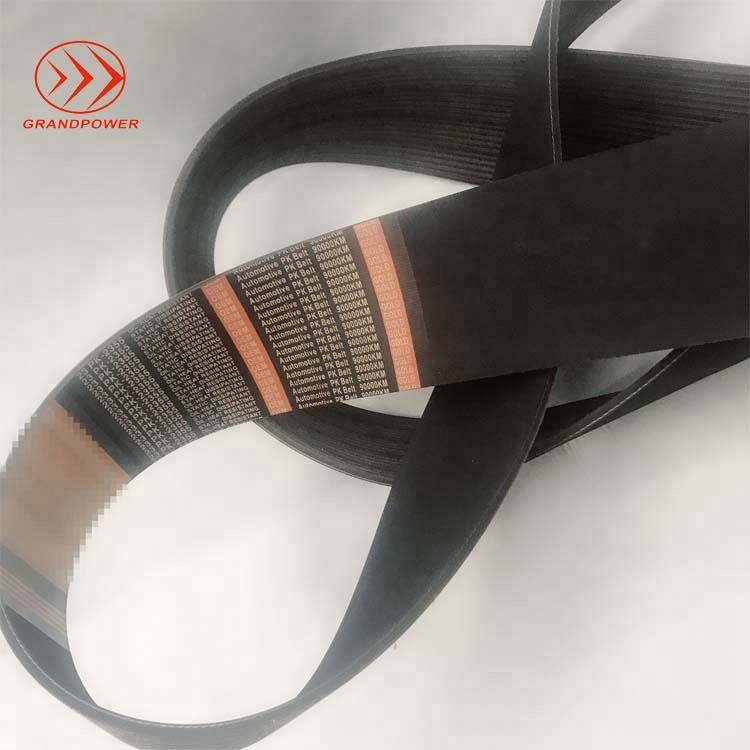

Rubber V-ribbed belt is the combination of merits of both V belt and flat belt. It got not only the soft and tenacious features of flat belt but also has compact and high efficient merits of V belt.
No. | Name | Function | Material |
1 | Top Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
2 | Buffer Rubber | Suport adn protect the adhesive force of the tensile member | CR, EPDM |
3 | Tensile Member | Critical material to pass the dynamic force | Polyester, Nylon |
4 | Bottom Rubber | Maintain the shape of the rubber and improve its side compression performance | CR, EPDM |
| Feature |
|
 |
| Size of Section |
Type | Ribsection(mm) | Angle of rib(o) | Belt Thickness(mm) | Rib Numbers | Length range |
PH | 1.6 | 40 | 3 | 3-54 | 540-1270 |
PJ | 2.34 | 40 | 4 | 3-36 | 540-18880 |
PK | 3.56 | 40 | 4-6 | 3-23 | 600-2400 |
PL | 4.7 | 40 | 10 | 3-16 | 900-3000 |
PM | 9.4 | 40 | 17 | 3-8 | 1500-3000 |
Packaging 1: In bulk;
Packaging 2: with bag+label/pcs;
Packaging 3: with card+label/pcs(pk,v belt);
Packaging 4: with box+label/pcs(timing belt);
Packaging 5: with plastic mould+label/pcs;
Packaging 6: as customer's demand;
Quality Assurance:
We can supply SGS, BV test to assure the quality of our products.
Price advantage:
We have our own factory, you can get a competitive and reasonable price with high quality.
Professional advantage:
More than 15 years’ professional producing experience.
Service advantage:
We can reply your Enquiry timely and effective.All of our products can send the samples as your requirement.
Delivery time:
Once our customers release their orders, we will arrange the production and shipping in time in order to save our customers time.
Exhibitions & Advertisement & Magazine
Shanghai/Guangzhou & Dubai & Moscow & Tehran & Mexico & Panama & Algeria .
