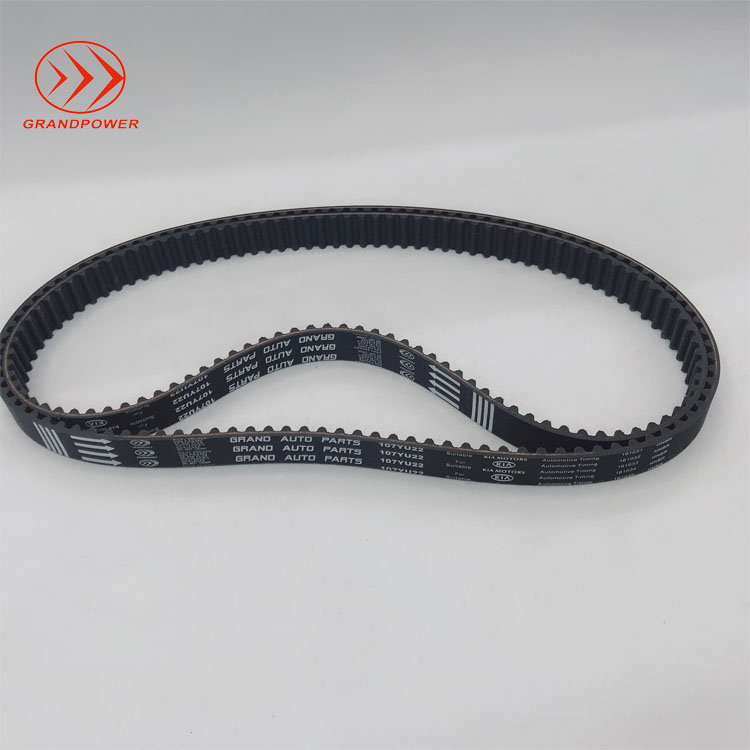

Industrial timing transmission belts brand
The transmission of synchronous belt is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley, lt combines respective advantages of gear transmission,chain tramission and transmission.
| No | Name | Function | Material |
| 1 | Top Rubber | Protect linling tensile member | CR HNBR |
| 2 | Tensile Member | Core material to pass the dynamic force | Glass Filber |
| 3 | Teeth Rubber | Protect the tensile member and maintain the shape of the rubber | CR HNBR |
| 4 | Teeth fabric | Maintain the shape of the adhesive | Elastic |
Feature
♥lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear.
♥Glass fiber as tensile member.no elongation of rubber belt.
♥Excellent heat-resistance,oil-proof,and wearing resistance
♥Higher transmission efficiency can be guaranteed under the condittion of large change of peration speed and temperature.
♥lts performance can be exerted stably and safely during the process of high-speed rotation.
Section Size
| Type | Picth(mm) | Tooht(mm) | Belt height(mm) |
| ZA | 9.525 | 1.91 | 4.10 |
| ZB | 9.525 | 2.29 | 4.50 |
| ZH | 9.525 | 3.50 | 5.50 |
| YH | 8.00 | 3.04 | 5.20 |
| ZR | 9.525 | 3.20 | 5.70 |
| YS | 8.00 | 2.00 | 5.10 |
| ZS | 9.525 | 3.53 | 5.70 |
| YA | 8.00 | 2.95 | 5.20 |
| ZAS | 9.525 | 2.32 | 4.62 |
| ZBS | 9.525 | 2.76 | 5.06 |
| S8M(YU) | 8.00 | 3.05 | 5.30 |
| FS | 9.525 | 3.05 | 5.35 |
| MY | 8.00 | 3.06 | 5.20 |
| MR | 9.525 | 3.54 | 5.69 |
| RU | 9.525 | 3.41 | 5.40 |
| ZLB | 9.525 | 2.70 | 5.05 |
Packaging 1: In bulk;
Packaging 2: with bag+label/pcs
Packaging 3: with card+label/pcs(pk,v belt)
Packaging 4: with box+label/pcs(timing belt)
Packaging 5: with plastic mould+label/pcs
Packaging 6: as customer's demand
♦OEM Manufacturing welcome: Product, Package...
♦Sample order
♦We will reply you for your inquiry in 24 hours.
♦2 inspection lines in factory , after sales service.
Quality Assurance:
We can supply SGS, BV test to assure the quality of our products.
Price advantage:
We have our own factory, you can get a competitive and reasonable price with high quality.
Professional advantage:
More than 15 years’ professional producing experience.
Service advantage:
We can reply your Enquiry timely and effective.All of our products can send the samples as your requirement.
Delivery time:
Once our customers release their orders, we will arrange the production and shipping in time in order to save our customers time.
