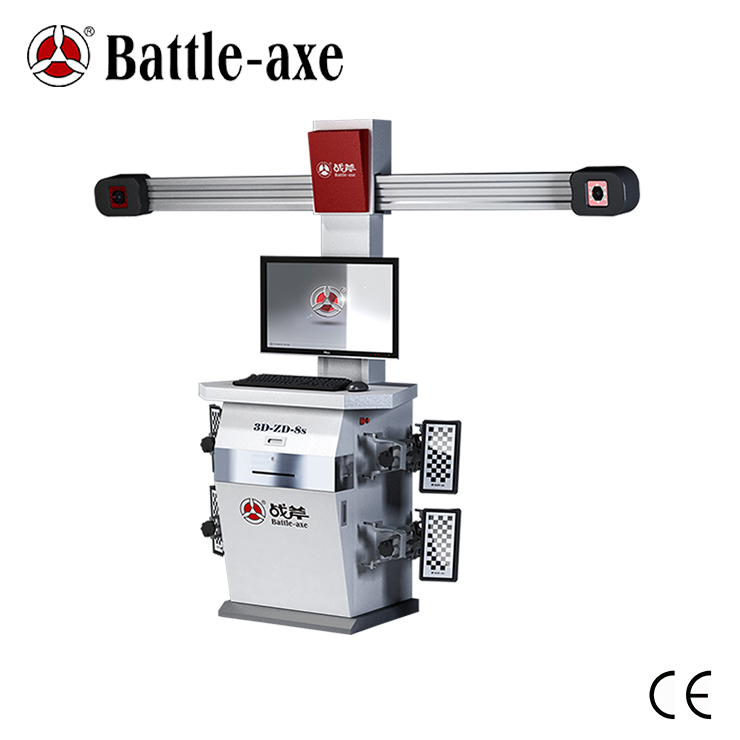

2 post lift wheel alignment
Jimmysu's Whatsapp+8613016308510
| Automatic Tracking Target and Electronic remote controller, Camera beam Length:2782mm |
| Column lift height: 1450-2110 |
| 2pcs 32''TV show Measuring data & Parking Turntable Function |
| with static measuring,Turn Wheels & Static Alignment measuring function |
| 2pcs 5 Mega pixel camera |
| One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc) |
| with Track width and Wheelbase measuring interface also |
| Calibration data Saved inside of Camera instead of Software |
| No need to Re-calibartion even Exchange Camera Inside Processor |
| With Parking Camera Function |
Camera Beam Length2782mm,With 2pcs Mega Pixel Industrial Cameras
Camera Beam Automatic tracking function(Sames as 3D-ZD-6S,following image only for reference)
Battle-Axe wheel alignment Software Function
Battle-Axe 3D alignment Machine Configuration Including
One or Two Target Plate Break for Careless and Waiting for Supplier sent New one? oh.. No, Battle-Axe Machine Still can Alignment Vehicle
Worried About Software Copyright?
Specification
Parameter | Precise | Resolution | Test Range | Total testing Range |
Total toe | ±2′(±0.03º) | 0.6′( 0.01º) | ±20º | ±30º |
Individual toe | ±2′(±0.03º) | 0.6′( 0.01º) | ±10º | ±20º |
Camber | ±2′(±0.03º) | 0.6′( 0.01º) | ±10º | ±10º |
Castor | ±4′(±0.06º) | 0.6′(0.01º) | ±20º | ±30º |
SAI / KPI | ±4′(±0.06º) | 0.6′(0.01º) | ±20º | ±30º |
Setback | ±2′(±0.03º) | 0.6′(0.01º) | ±10º | ±20º |
Thrust angle | ±2′(±0.03º) | 0.6′( 0.01º) | ±10º | ±20º |
Wheelbase difference | ±2′(±0.03º) | 0.6′(0.01º) | ±10º | ±20º |
Track width difference | ±2′(±0.03º) | 0.6′(0.01º) | ±10º | ±20º |
Wheel size working range | 13-24 | |||
-Warranty : within 12 months From Bill of loading date not including PC Unit including computer hard disk, LCD and Printer
-Easy spare parts like USB power line, insurance tube we will sent together with whole machine for future replacement, for other spare parts belongs to chargeble Range if replacement, Express cost beared by Buyer
-Generally Clear customs Documents we only supply Bill of loading, packing list and Commercial Invoice, if any special documents need like CO kindly Inform us in advance, otherwise we will not responsible for loose during clear customs
BATTLE-AXE is the leading manufacturer of tyre service equipment in China, specializing in Dynamic 3D Wheel Alignment System, CCD wheel alignment, Scissor Tyre Lifting Equipment, and Pneumatic Car Jack Since 2002, Located in Zhongshan City Guangdong Province China Not Far From Hongkong & Macau..Nearest Sea Port is Guangzhou and Shenzhen
Milestones
Batttle-Axe Garage equipment Factory-Service
The Reason We exist is to Satisfy all the customers,all demand
Battle-Axe Garage equipment Factory-Quality Management
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
Battle-Axe Wheel Alignment Factory For Reference
Battle-Axe Wheel Alignment Customer Show
Battle-Axe other Garage Equipment for your choose
