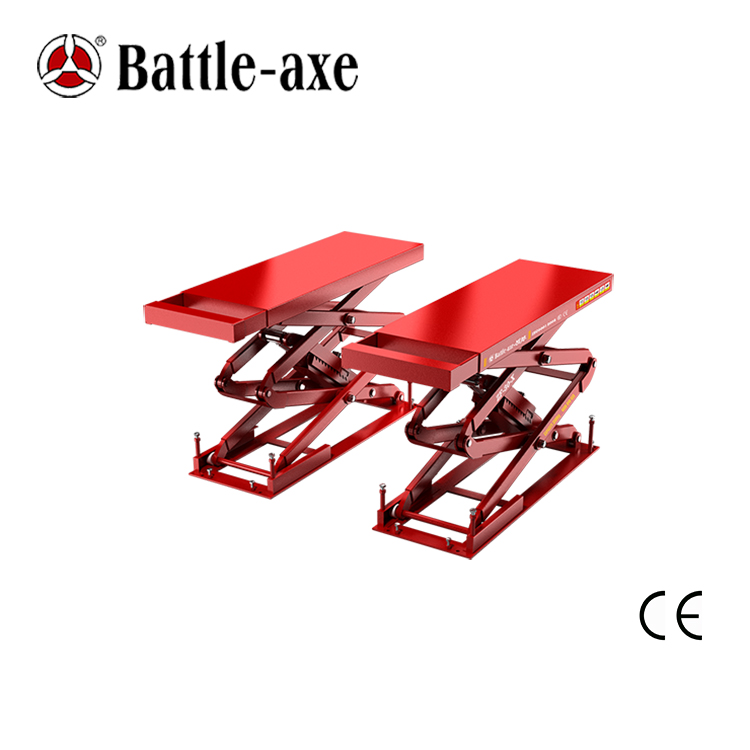

in ground mid rise scissor hoist.3.0tons
Jimmy's Whatsapp +8613016308510
This 3 tons capacity lift is totally open between the runways from front to rear, allowing easy access to the complete undercar repairs, increasing productivity for shops. The 600mm wide run way allows shops to perform undercar operation on a variety of vehicle sizes. Enhanced 18 level mechanical safety locks and locked positions ensure undercar operation is SAFE always.
Materials: Cold Rolling Steel
Specification
Lift Capacity | 3000kgs | Runway length | 1530mm |
runway width | 550mm | distance between runway | 800-900mm |
lifting height | 2100mm | power | 220V/380V |
min height | 330mm | Raise Time | 12sec |
All electro hydraulic lift Have been done weight testing, level testing and overpressure testing | |||
Special Features: Battle-Axe Developed Self-Diagnosis Function on Control Box ,used for easy Maintenance
Control Box inside Electronic Components Battle-Axe adapt Branded type to make sure The Quality(will not notify furture if any change according to factory )
Body color you can choose: Blue, Yellow, Gray,Black etc...
Overall size of Alignment scissor Lift ZF-30-X
Certification
Package Item | Package quantity | Package size | Weight |
| Platform | 1 | 1510X650X340MM | 850/860kgs 30 set/20FCL |
| Control box | 1 | 560x420x1040mm | |
| Accessories Box | 1 | 500x320x230mm |
-Whole machine with 12 months warranty since bill of loading date
-Spare Parts: Generally we will sent freely spare parts together with whole machine for customer or dealer future replacement, but will subject to order amount
-All spare parts available in our warehous , you can select and pay for them
-Installation: through user manual, and we installed the Connect Nos to different Oil Pipe and control box, you directly find no 1 connector, and find another no 1 connector, connect both together then finished
-With Problem shooting explaination
BATTLE-AXE is the leading manufacturer of tyre service equipment in China, specializing in Dynamic 3D Wheel Alignment System, CCD wheel alignment, Scissor Tyre Lifting Equipment, and Pneumatic Car Jack Since 2002, Located in Zhongshan City Guangdong Province China Not Far From Hongkong & Macau..Nearest Sea Port is Guangzhou and Shenzhen
Milestones
Batttle-Axe Garage equipment Factory-Service
The Reason We exist is to Satisfy all the customers,all demand
Battle-Axe Garage equipment Factory-Quality Management
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
Alignment Scissor lift Factory Show
Or May be you Like Install Surface Ground Lift? We Have Also
ZF-40-2C ZF-40-C
