Introduction
| 1. All electronic hydraulic scissor lift parts produced by numerical control equipment, high accurate and precise |
| 2.Super mute,you can not heared the parts friction noise at all, only can hear the oil transport noise. |
| 3.All hydraulic car lift electronic components inside controller box are all imported, stable and reliable. |
| 4. Electronic hydraulic lift adopted spraying powder technology and static electricity body surface, compare with painting oil, More strong, surface painting no easy to scratch and fall off |
5.Special design: Self diagnosis function by remote controller. |
Specification
Lift Capacity | 3500kgs | Runway length | 4500mm |
runway width | 600mm | distance between runway | 800-900mm |
lifting height | 1850mm | Secondary Lift Height | 500mm |
min height | 330mm | Raise Time | 12sec |
All electronic hydraulic lift Have been done weight testing, level testing and overpressure testing before out of factory
| |||
Special Features: Battle-Axe Developed Self-Diagnosis Function on Control Box ,used for easy Maintenance
Control Box inside Electronic Components Battle-Axe adapt Branded type to make sure The Quality(will not notify furture if any change according to factory )
Body color you can choose

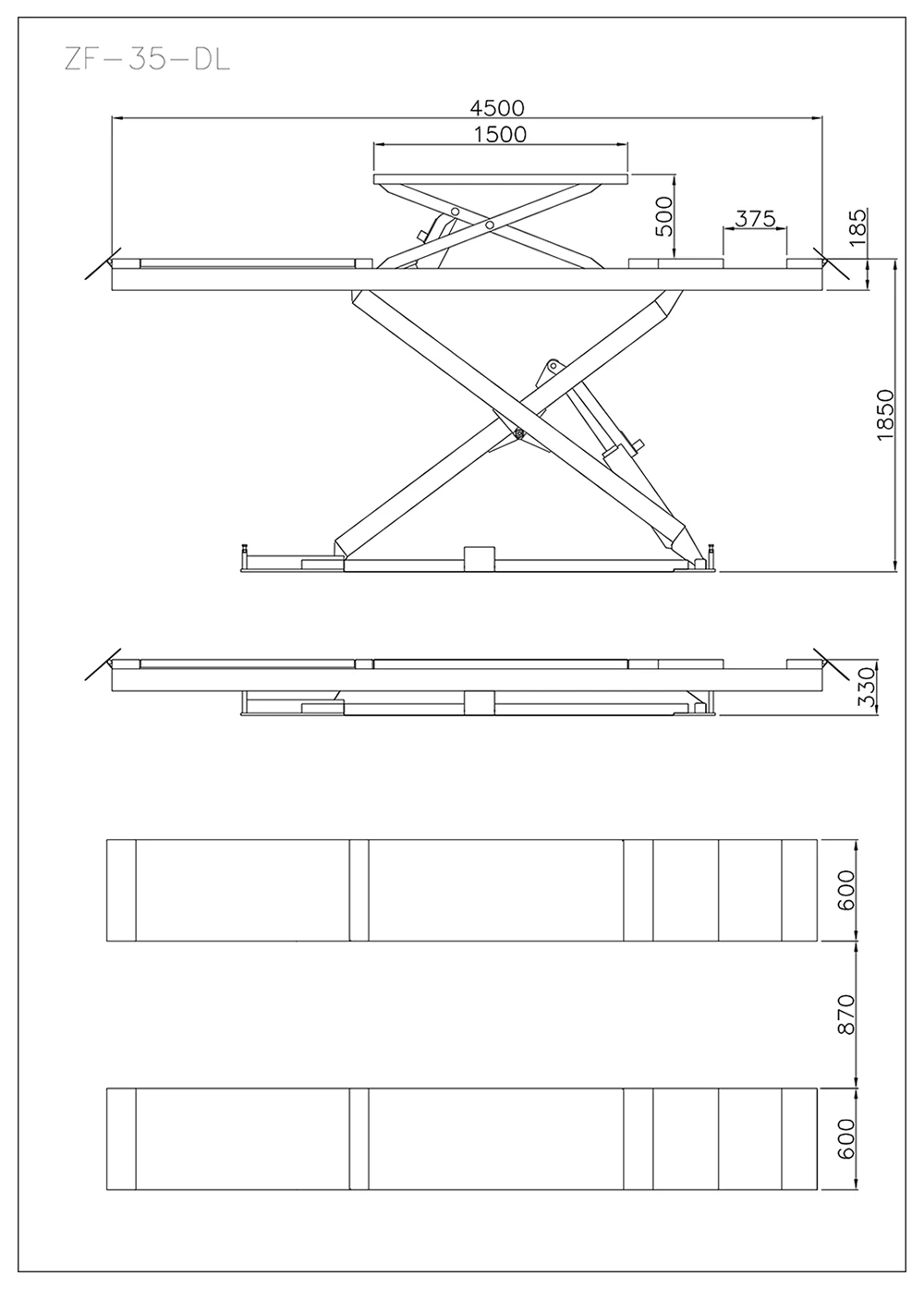

Overall size of Alignment scissor Lift ZF-35-DL
Certification
Package Item | Package quantity | Package size | Weight |
| Platform | 2 | 4300x620x340mm | 1890/1900kgs 7 set/20FCL |
| Control box | 1 | 560x420x1040mm | |
| Accessories Box | 1 | 610x320x420mm |
-Whole machine with 12 months warranty since bill of loading date
-Spare Parts: Generally we will sent freely spare parts together with whole machine for customer or dealer future replacement, but will subject to order amount
-All spare parts available in our warehous , you can select and pay for them
-Installation: through user manual, and we installed the Connect Nos to different Oil Pipe and control box, you directly find no 1 connector, and find another no 1 connector, connect both together then finished
-With Problem shooting explaination
BATTLE-AXE is the leading manufacturer of tyre service equipment in China, specializing in Dynamic 3D Wheel Alignment , CCD wheel alignment, Scissor Lift Equipment, and Pneumatic Car Jack Since 2002, Located in Zhongshan City Guangdong Province China Not Far From Hongkong & Macau..Nearest Sea Port is Guangzhou and Shenzhen
Milestones
Batttle-Axe Garage equipment Factory-Service
The Reason We exist is to Satisfy all the customers,all demand
Battle-Axe Garage equipment Factory-Quality Management
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.

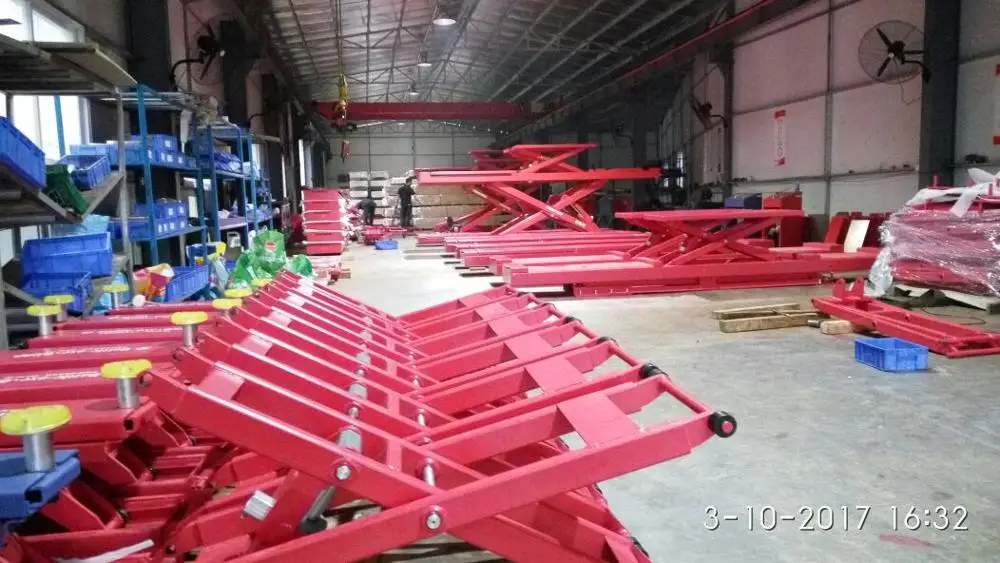

Alignment Scissor lift Factory Show
FAQ:
Q:Can we use 220V as power supply to BATTLE-AXE scissor car lift?
A:Yes, additional cost is needed.And if possible please use 380V to keep the equipment at beat working condition.
Q:Does the BATTLE-AXE car lift work well with other brand wheel aligner?
A:All brand of wheel aligner can work well with BATTLE-AXE car lift. But the car lift works in the most efficient way if matched with BATTLE-AXE 3D/CCD wheel aligner.
Q:What is included in free spare parts?
A:Oil pipes, air pipes, air valves and oil pipe valves
Q:Can i be exclusive local representative?
A:We are looking for long term exclusive distributor worldwide. Welcome to join BATTLE-AXE.
Q:How many car lift model do you have?
A:We have 7 standard models. What's more we have strong R&D and customization ability to develop your own model.
Q:Where is your factory?
A:Our factory is located in ZHONGSHAN city,within 2 hours drive from SHENZHEN, GUANGZHOU, ZHUHAI and MACAU.A
Q:Can I get 2 year warranty or longer warranty?
A:We offer 1 year warranty for free. 2 year warranty with extra cost.
Q:Can I pay RMB currency?
A:Yes ,but we need to add extra 20% based on the current price. Because we need to pay more tax. So we suggest you pay in US dollars.
Q:What is delivery time?
A:2 working days upon reception of down payment and confirmation of all details.
Q:How to install the scissor car lift ?
A:Trough video show training.
Q:How long is the lifetime of BATTLE-AXE scissor car lift ?
A:At least ten years, under good preservation.
Q:What is needed for the installation of BATTLE-AXE scissor car lift?
A:#46 anti-wear hydraulic fluid. Forklift, at least 2 battens longer than 700mm.
Q:Can I design and dig my pit in my own way?
A:It depends. The drawing must be checked by BATTLE-AXE before digging. Otherwise we are not responsible for any working failures.
