Lahoo Autoparts can supply various kinds of Axles for trucks, trailers and agriculture vehicles.
The annual turnout is over 100,000 pieces per year.
1) Type: American/FUWA, German/BPW type Axle, Stub Axle, Agricultural Axle
2) Drum Axle, Spoke Axle, Front Axle, Rear Axle
3) Capacity: 8T, 11T, 13T, 14T, 15T, 16T, 18T, 20T etc.
4) Track can be made according to customers' request
5) Certificate: ISO/TS16949
American Drum Series Axle Specification:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Wheel Rim | Total Length (mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1×D2 | L1 | Inner/Outer | ||||||
| LHAD08-A01 | 8 | 1840 | ο127/◊150 | 455 | S 420×150 | 8×M20×Φ285×Φ221 | 7.5V-20 | 2185 | 320 | 33215/33213 |
| LHAD11-A01 | 11 | 1960 | ο127 | 670 | S 310×190 | 10×M22×Φ285.75×Φ221 | 6.5-16 | 2250 | 347 | 218248/218248 |
| LHAD13-A01 | 13 | 1840 | ο127/◊150 | 388 | S 420×180 | 10×M22×Φ335×Φ281 | 7.5V-20 | 2185 | 362 | HM518445/10 |
| LHAD13-A02 | 13 | 1840 | ο127/◊150 | 388 | S 420×180 | 8×M20×Φ285×Φ221 | 7.5V-20 | 2185 | 365 | HM518445/10 |
| LHAD14-A01 | 14 | 1840 | ο127/◊150 | 348 | S 420×180 | 10×M22×Φ285×Φ281 | 8.0V-20 | 2192 | 408 | |
| LHAD15-A01 | 15 | 1850 | ο127/◊150 | 396 | S 420×180 | 10×M22×Φ285×Φ281 | 8.0V-20 | 2185 | 382 | HM518445/10 |
| LHAD16-A01 | 16 | 1850 | ο127/◊150 | 354 | S 420×220 | 10×M22×Φ285×Φ281 | 8.5V-20 | 2205 | 425 | HM220149/10 |
| LHAD20-A01 | 20 | 1850 | ◊150 | 354 | S 420×220 | 10×M24×Φ285×Φ281 | 8.5V-20 | 2270 | 460 | 32222 HM518445/10 |

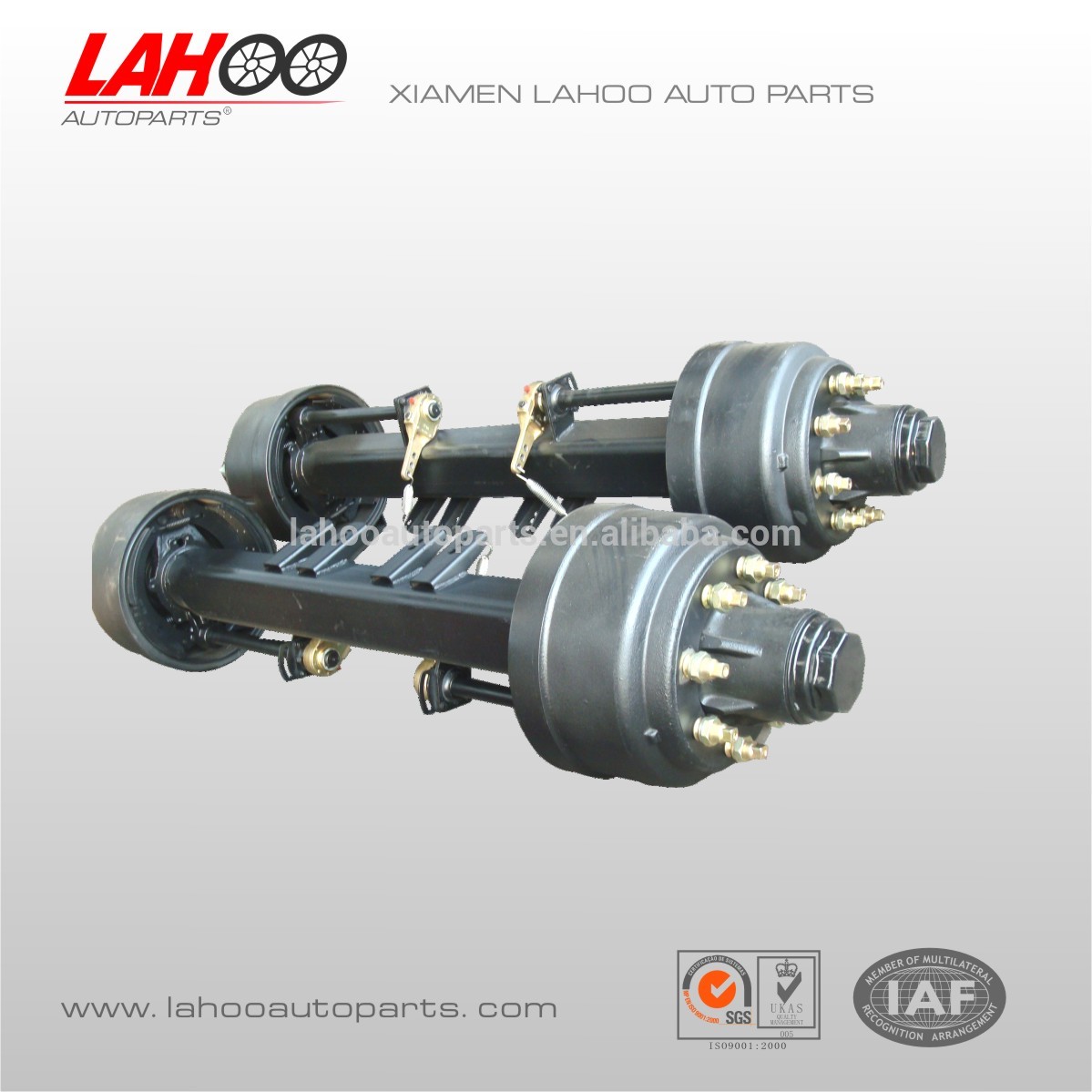

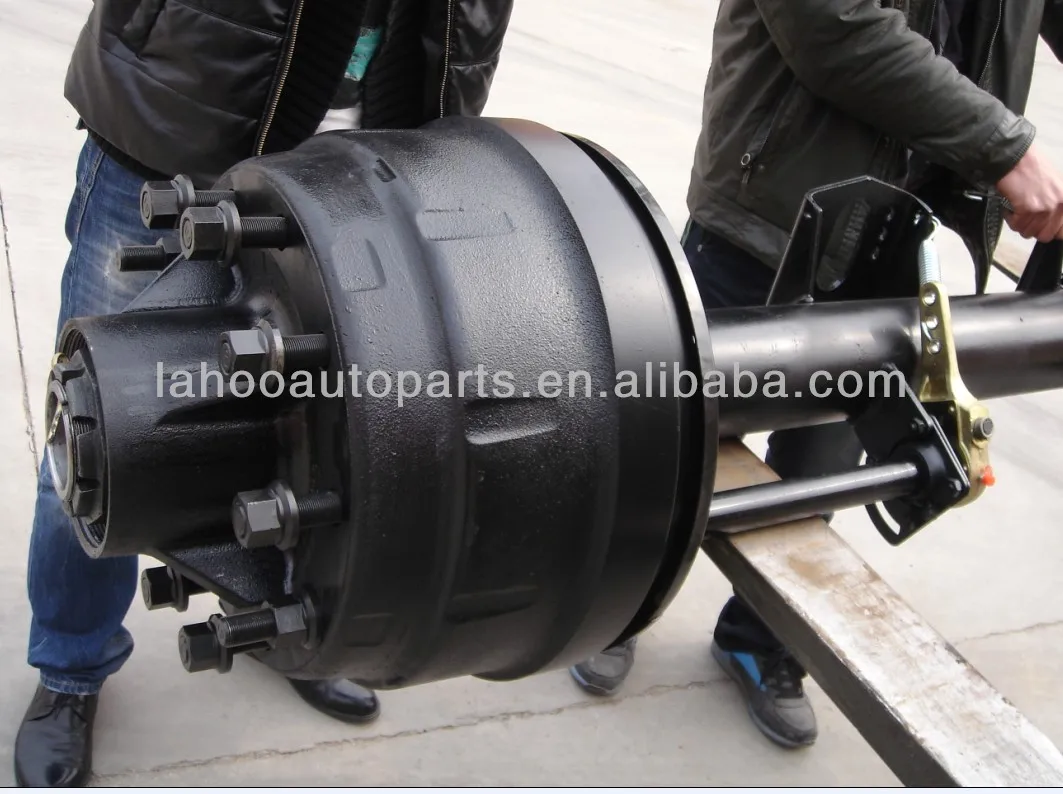

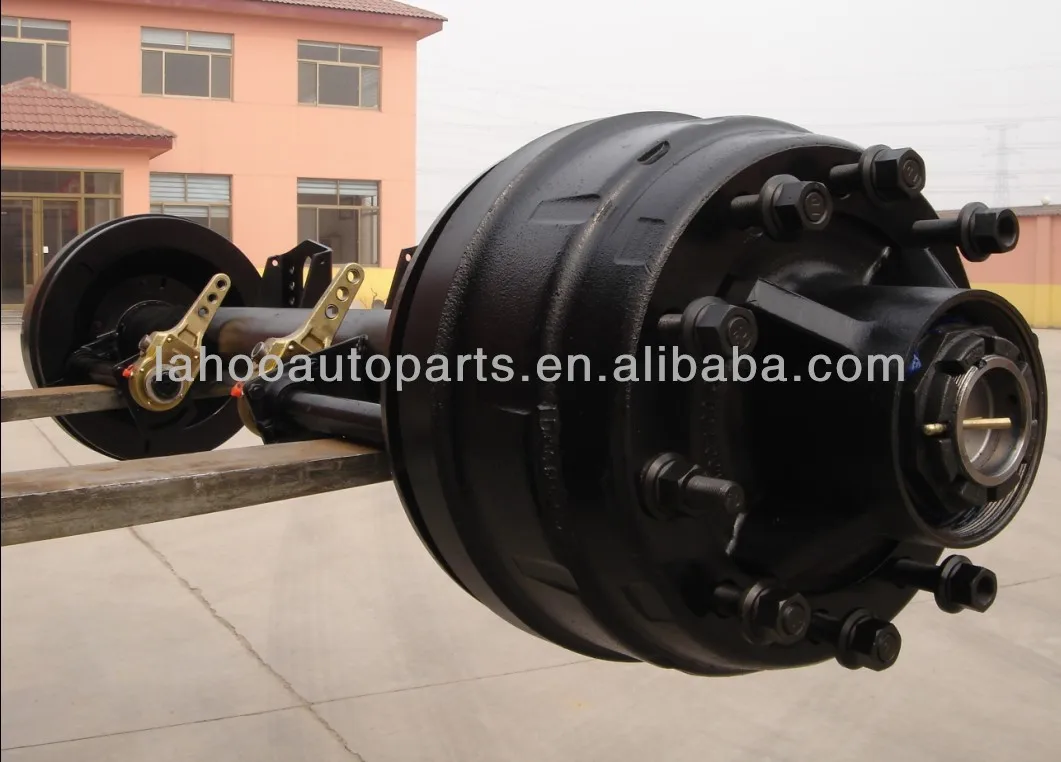

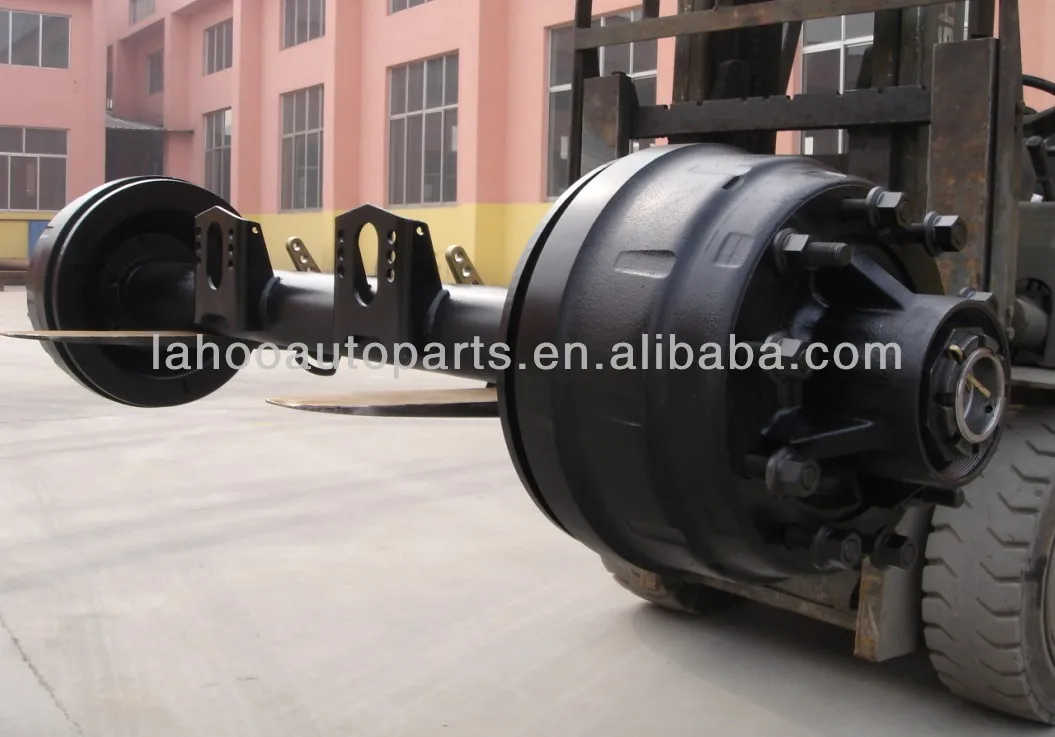

American Type Axle Detail Photos:

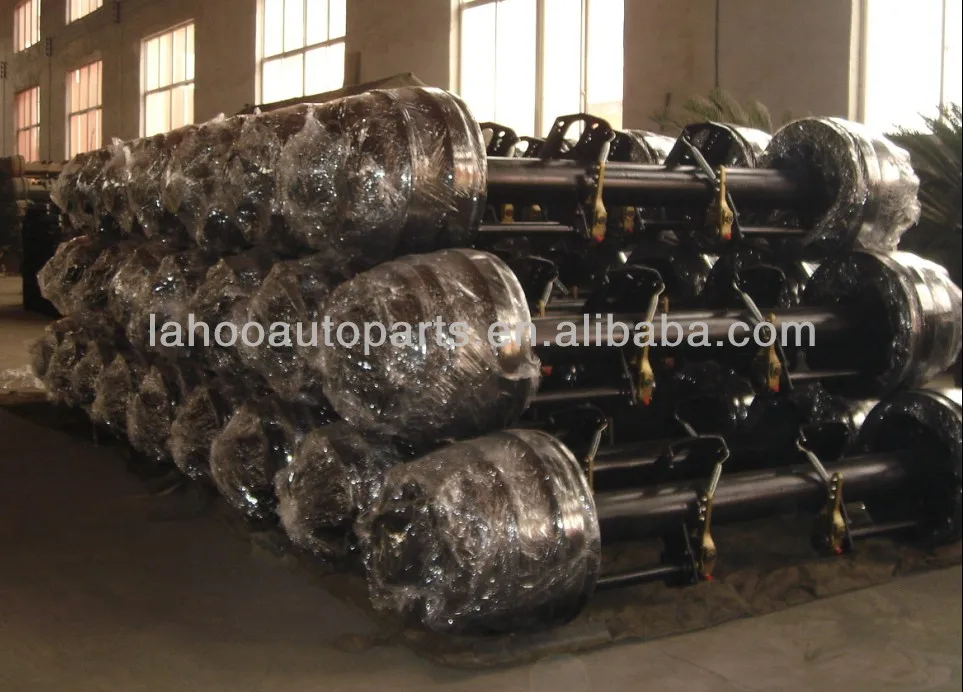

Packaging: by pallets
1. We supply many kinds of axles with diferent capacity.
2. American and German Type Axle are available.
3. Besides general size axles, we can produce by customers' request or drawings.
