Lahoo Autoparts has been supplying more than 100 sizes Wheel Rims, including Tube, Tubeless, Engineering, car wheel rims:
1. Tube wheel rim sizes are from 5.5-15 to 8.5-24;
2. Tubeless wheel rim sizes are from 6.00x17.5 to 16.00x22.5;
3. Engineerring wheel rim sizes are from 8.5-24 to 25-14.00/2.0;
4. Car wheel rim sizes are from 13x5.5J to 15x6J, 5.5x20 to 9.00x15.3;
5. Also supply multi kinds of wheel rim parts: Rim, demountable rim, lock ring, disc etc.
6. Certificate: ISO/TS16949
Product Name: Truck Tubeless Wheel Rim
9.00X22.5
| SIZE | Bolt | P.C.D. | C.B.D | Offset | Disc Thick | Mounting tyre | ||
| No. | Dia. | Type | (mm) | (mm) | (mm) | (mm) | ||
| AXB | N | D | T | P.C.D. | C | E | F | |
| 9.00X22.5 | 8 | 32.5 | SR22 | 285 | 221 | 160 | 14 | 12R22.5 |
| 9.00X22.5 | 10 | 32 | SR22 | 285.75 | 222 | 169 | 16 | 12R22.5 |
| 9.00X22.5 | 10 | 26 | ISO | 335 | 281 | 175 | 14 | 12R22.5 |
| 9.00X22.5 | 10 | 26 | ISO | 285.75 | 221 | 175 | 14 | 12R22.5 |
| 9.00X22.5 | 10 | 27 | SR18 | 335 | 281 | 0 | 12 | 12R22.5 |
| 9.00X22.5 | 10 | 26 | ISO | 335 | 281 | 170 | 12 | 12R22.5 |
| 9.00X22.5 | 10 | 27 | SR18 | 335 | 281 | 175 | 12 | 12R22.5 |
9.75X22.5
| SIZE | Bolt | P.C.D. | C.B.D | Offset | Disc Thick | Mounting tyre | ||
| No. | Dia. | Type | (mm) | (mm) | (mm) | (mm) | ||
| AXB | N | D | T | P.C.D. | C | E | F | |
| 9.75X22.5 | 8 | 32 | SR22 | 285 | 221 | 175 | 14 | 12R22.5 |
| 9.75X22.5 | 10 | 32 | SR22 | 285.75 | 222 | 175 | 14 | 12R22.5 |
| 9.75X22.5 | 10 | 26 | ISO | 335 | 281 | 175 | 14 | 12R22.5 |

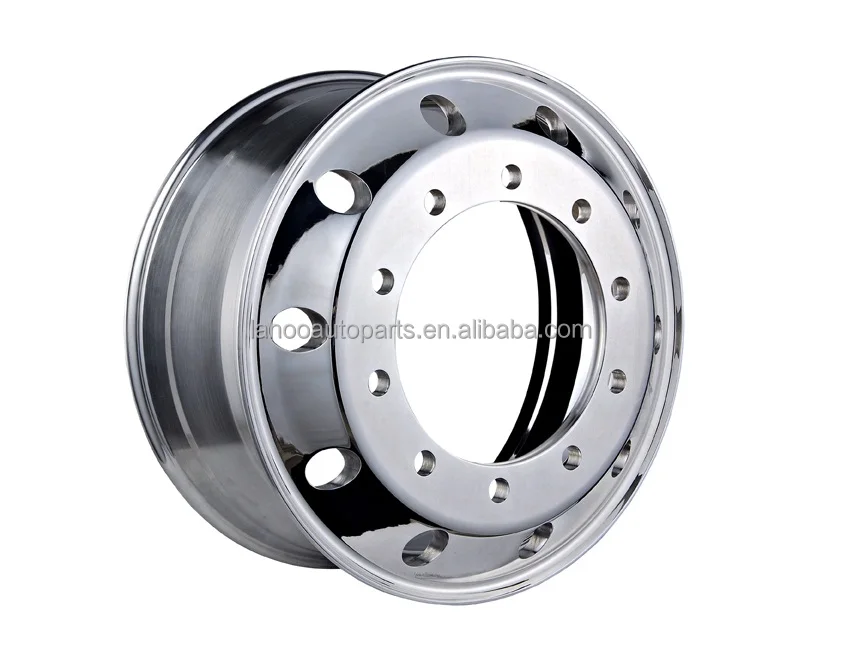

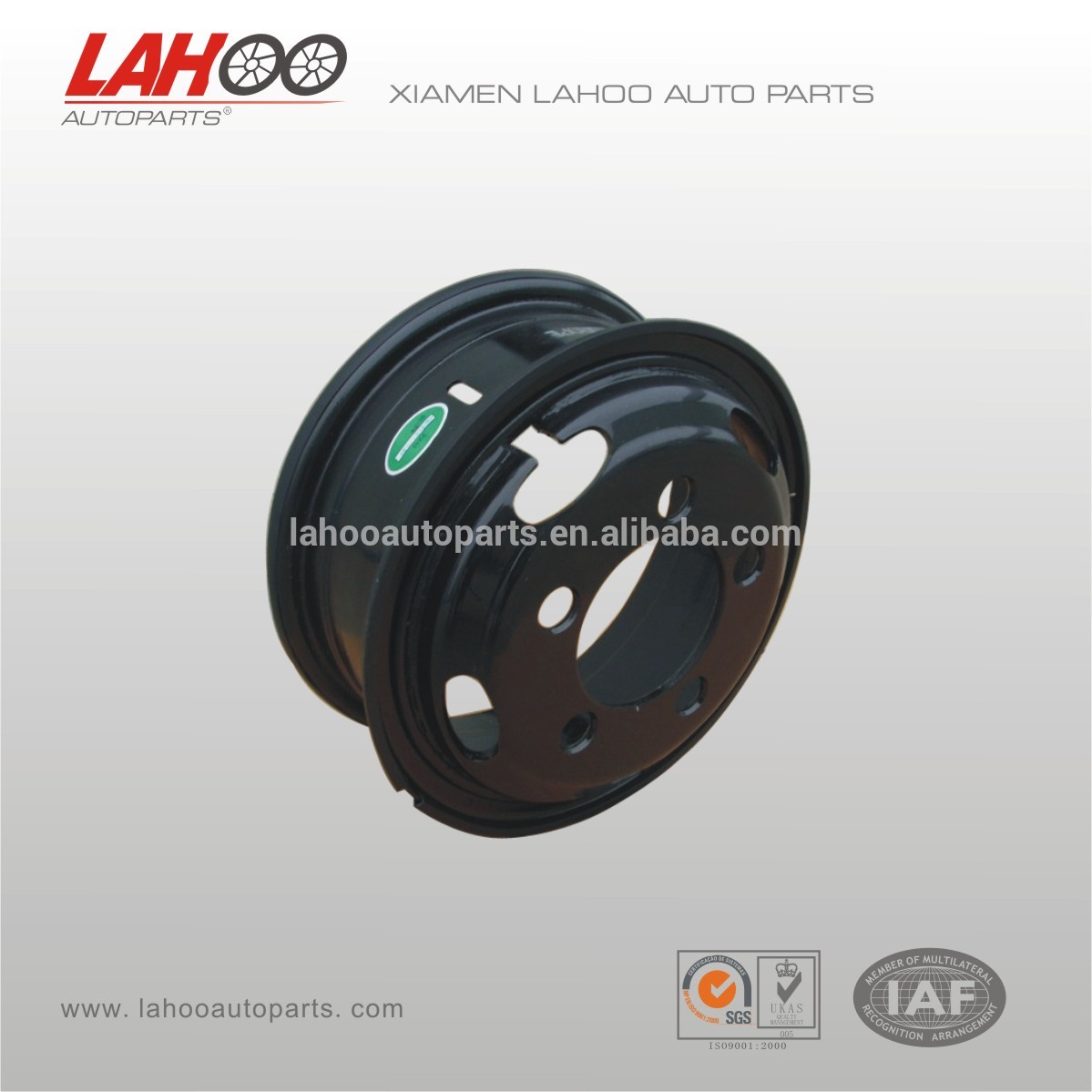

Product Photos: Truck Tube&Tubeless Wheel Rims
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
