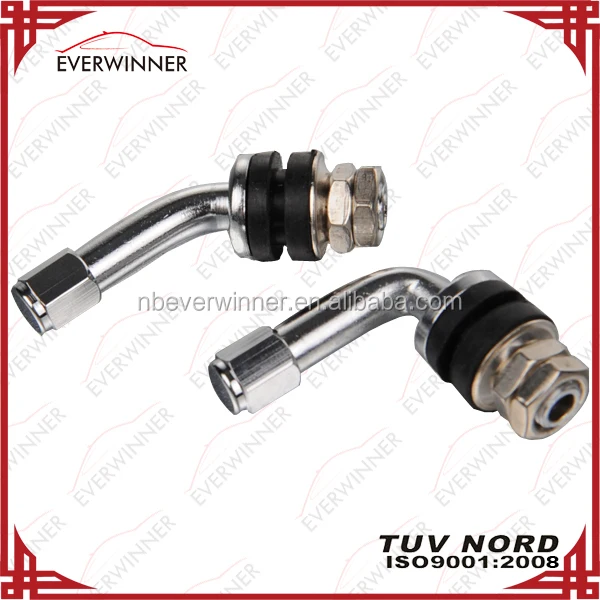

V-S-45° Tubeless Metal Clamp-in Valves
The function
It is used to inflate your tire or adjust the air pressure. Through its action it automatically closes when you are not using it, however it opens easily when you need to add or remove air from the tire to increase or decrease the tire pressure.
Detailes
1.VS-8-45 is made of brass stem ,core valve and Special Formula rubber. in order to resist to O-zone Damage and Preventtemperatiredeterioration caused by rim hole, heat, cold.
2.Maxium Inflation is 420k Pa (60P S. I)
3. tensile force >600-700N
4. Cold,Heat and Ozone Resistant
5:
TR NO. | ETRTO NO.(REF.NO. | RIM HOLE | EF.LENGTH(mm) | PARTS(CORE&CAP) RUBBER FROMMETWASHER NUT CAP | |||
TR416 |
| Φ16/.625’’ | Φ18.5*40 | RG39 | RW13 | HN4 | FT |
TR416B |
| Φ11.5/.453’’ Φ16/.625’’ | Φ17*38,34 | RG39 RG54 | RW8 | HN4 | AT |
TR416S |
| Φ11.5/.453’’ | Φ17*40 | RG54 | RW8 | HN4 | FT |
TR416L |
| Φ11.5/.453’’ | Φ16.7/59 | RG59 | RW8 | HN4 | FT |
TR416SS |
| Φ11.5/.453’’ | Φ14*38 | V801 | RW8 | RW8 | FT |
TR5991B | WH402 | Φ11.5/.453’’ Φ16/.625’’ | Φ14*39 | RG11 | RW6 | RW8 | FT |
V-3 | TR33E,WH23A | Φ11.5/.453’’ | Φ14*33 | HRG2*2 | RW8 | HN4 | AT |
V-4 | TR43E.WH206 | Φ14*43 | RW5 | HN2*2 | ET/BT | ||
V-5 | TR48E | Φ14*48 | |||||
V-6 | TR53E,WH204 | Φ14*53 | |||||
V-7 | TR63E | Φ14*63 | |||||
V-8 | TR26A | Φ16*34 | HRG1,HG2 | RW12 | |||
VS-8 | TR26G,PVR43A | Φ16*38 | |||||
V-9 | JS43E | Φ16*43 | |||||
VS-8-45 | WH303,PVR75A | Φ16*53-45 | |||||
VS-8-90 |
| Φ16*63-90 | |||||
TR6008C | TRJF944 | Φ16/.625’’ | Φ17.5*34 | RG39 | RW8 | HN4*2 | DT |
PVR152 |
| Φ11.5/.453’’ | Φ16*65-90 | RG54 | RW8 | HN4 | ET/BT |
PVR153 |
| Φ11.5/.453’’ | Φ17*70-90 | RG54 | RW8 | HN4 | ET/BT |
VS-6 |
| Φ6/.236’’ | Φ11*40 |
|
|
|
|
TR435 |
| Φ11.5/.453’’11.5/.453’’ | Φ19*34 | RG54 | RW8 | HN4 | ET/BT |
50pcs/bag,250 pcs/carton
Export standard carton
According the customer’s requirements of shipping mark and sticker
At first ,our factory promise the product quality and do not shoddy work and use inferior material . We want to build friendly and longterm business relationship with each customers not only once .we want to be your partner ,not just customer.We hope to grow up with you in the future!
1.Beautiful package
2.100% tested before each shipment
3.Quickly shipping arrangement
4.BL.Packing list,commercial invoice or other documents will be sent soon
5.season promotion
Since 1996,Ningbo everwinner auto parts Co.,Ltd is a manufacture and global exporter for quality performance auto parts production which mainly including tire and wheel rim accessories,
tire repairtools and equipments etc.
24 hours service! Welcome to Contact us!
