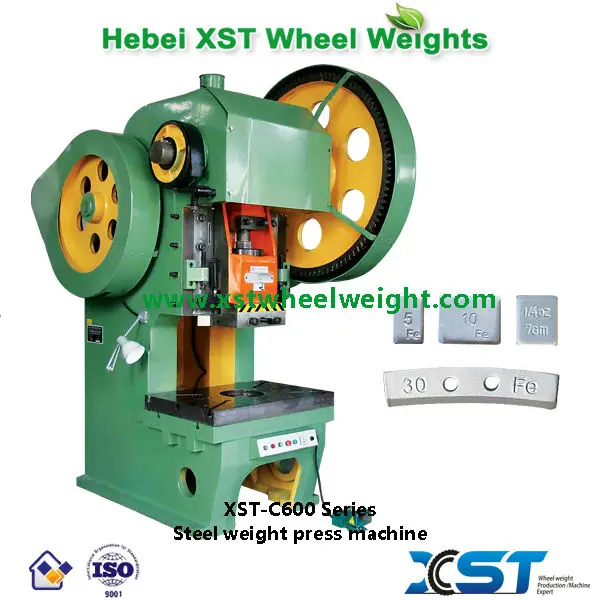

C600 Series STEEL WEIGHT MAKING MACHINE
This machine is specifically designed for production of the segments of steel clip-on weights and adhesive weights.
Specifications Model | Unit | C600-40 | C600-63 | C600-80 | C600-100 | C600-100A |
Wheel weight type | GM | CLIP-ON 10-15 | CLIP-ON 20-30 | CLIP-ON 35-45 | CLIP-ON 50-60 | ADHESIVE 5G, 10G, 1/4 OZ 1/2 OZ |
Tonnage | TON | 40 | 63 | 80 | 100 | 100 |
Nominal capacity | KN | 400 | 630 | 800 | 1000 | 1000 |
Stroke of slide | MM | 80 | 80 | 100 | 100 | 100 |
Strokes per minute | SPM | 50 | 50 | 50 | 40 | 60 |
Close height | MM | 220 | 250 | 270 | 300 | 300 |
Max. die height | MM | 45 | 50 | 60 | 45 | 45 |
Size of the handle hole | φMM | 50X70 | 50X70 | 60X80 | 60X80 | 60X80 |
Main motor power | KW | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
Quantity per minute | pcs | 50 | 50 | 50 | 40 | 300 |
Products photos:

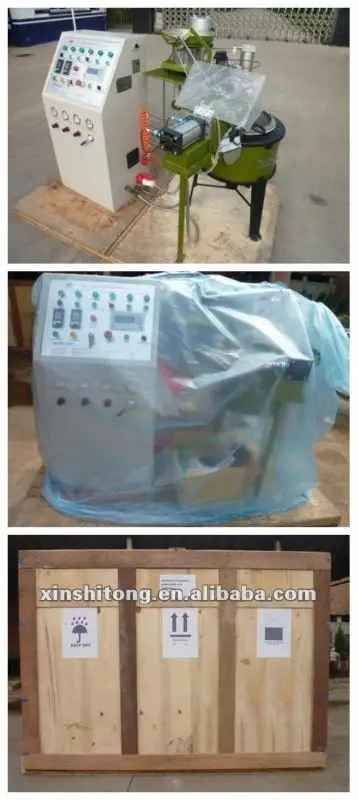

Our products are packed in strong sea worth wooden crates.
Shipping terms
Loading port: Tianjin
Lead time:15-40 days after confirmation/advance payment
Shipping method:By sea/by air/by train
Free sample/freight collected
Samples are available in 7 days.
Our Workshop:
Exhibition:
Our service\Buyer Guidelines:
