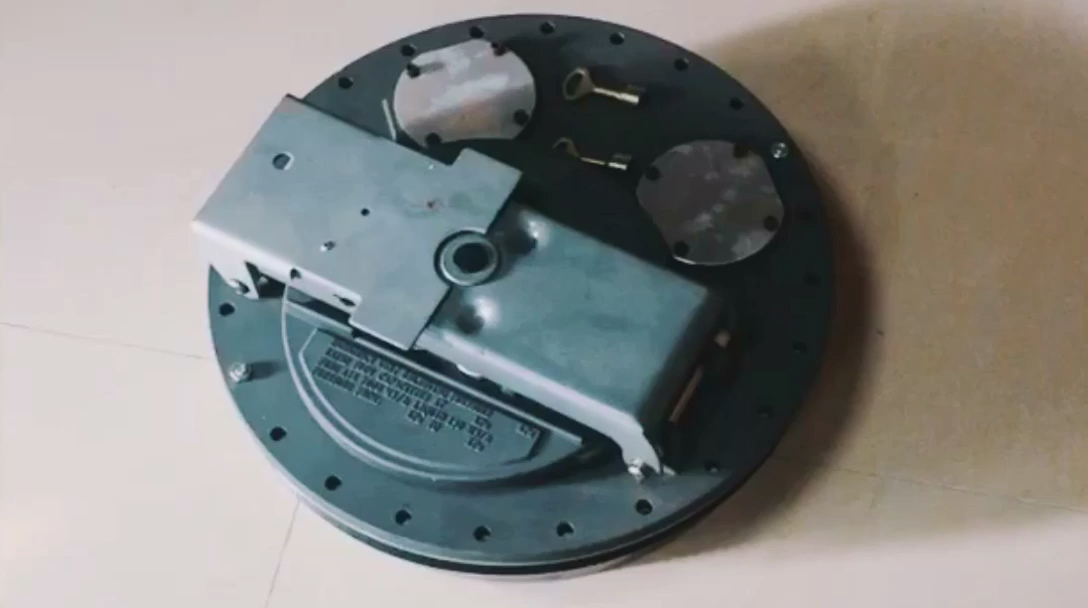

Manhole Cover is installed on the top of the tanker to prevent the inside fuel from leakage when the tanker is over rolled. With P/V vent inside to adjust the pressure. When there is pressure differences inside and outside the tanker, it will automatically inlet or exhaust air to adjust the pressure so that it can ensure the safety and environmental protection. It is suitable to transport petroleum, diesel, kerosene, and the other light fuel, etc.
��Benefit and Features

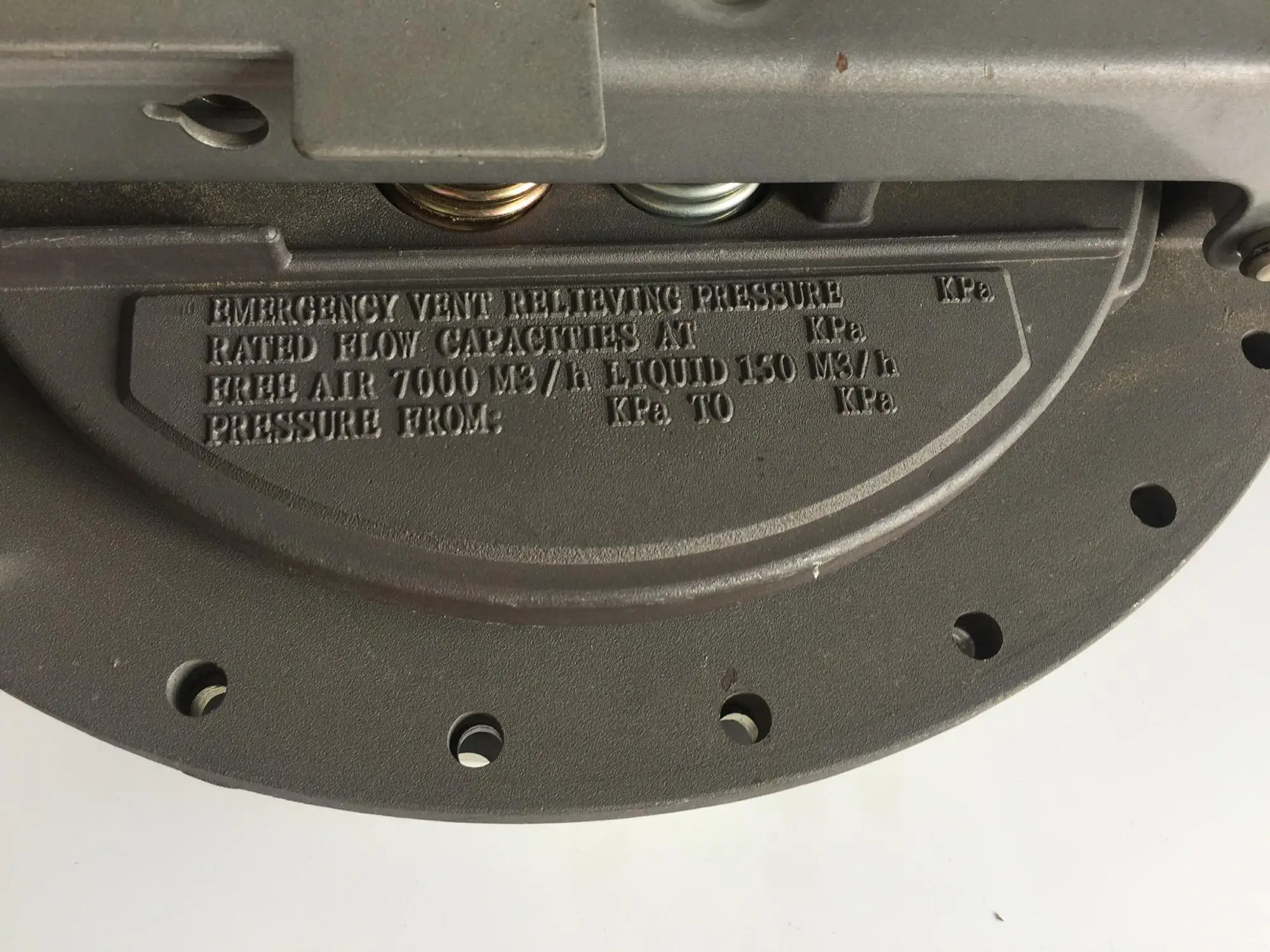

��Emergency Exhausting Design
��When the tanker truck is in high temperature condition,themanhole will automatically exhaust the air insudeto release the pressure,ensuringthe safety of the tanker.

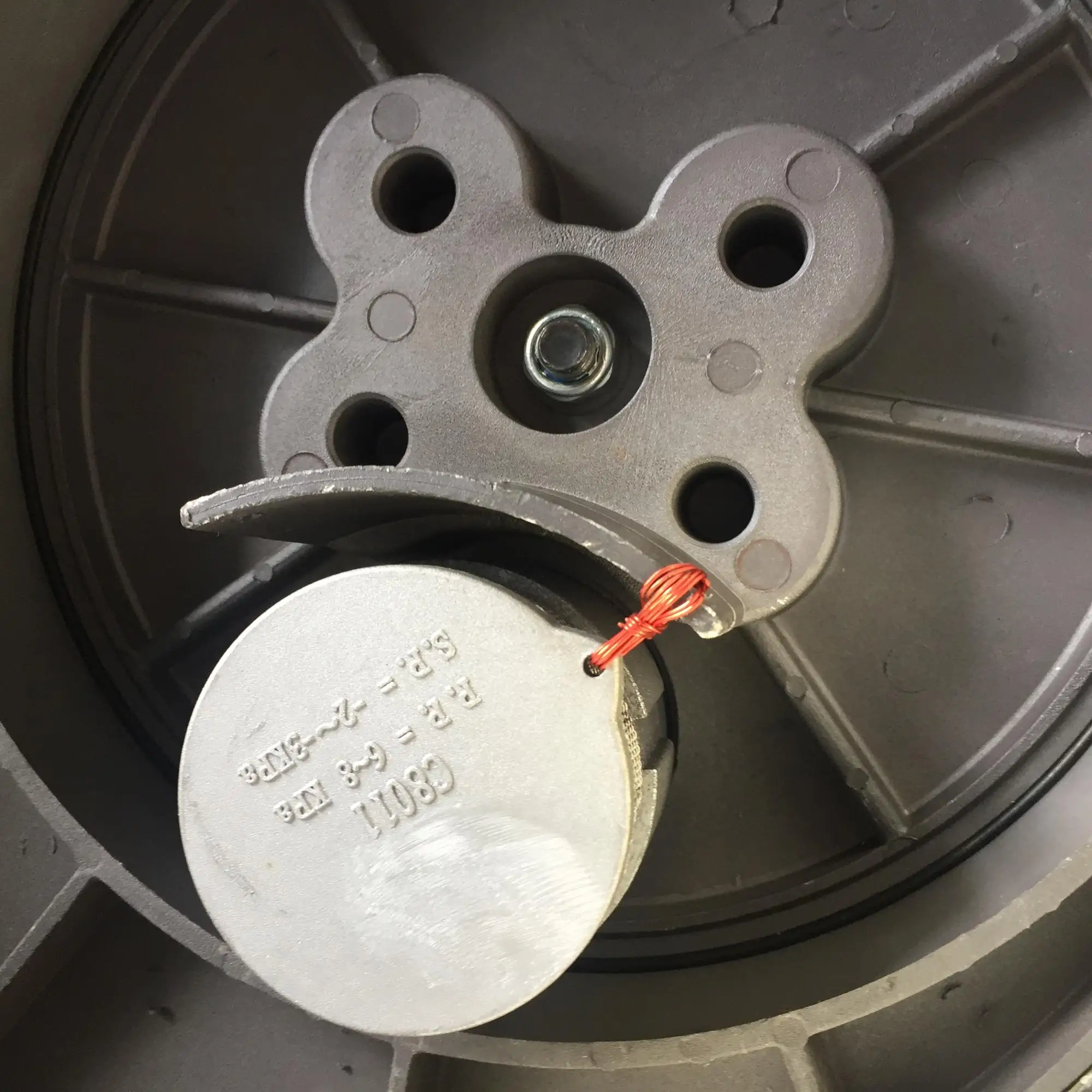

��With P/V Vent inside
��When there is pressure differences inside and outside the tanker,itwill automatically inlet or exhaust air to adjust the pressure so that it can ensure the safety and environmentalprotection.
��Secondary Open Design
��When open the up binder plate,itwill release the pressure out to prevent the workers from pushing over.
��Blinding Holes Design
��In the main plate of the Manhole,thereare three binding holes can be installed with Vapor Valve,OpticSensor,DipTube or OuternalVacuum Valve according to the user's demand.
��Superior Process Performance
��The main platais stamped,itis more light and sturdy.P/V Vent Secondary Open Design
Technical Data:
Diameter 20"Nominal
Emergency open pressure 21KPa~32KPa
Max emergency flow rate 7000m³/h(When 34KPa)
Material Aluminium
Temperature range -20~+70℃
Delivery: 7 days upon received deposit payment
