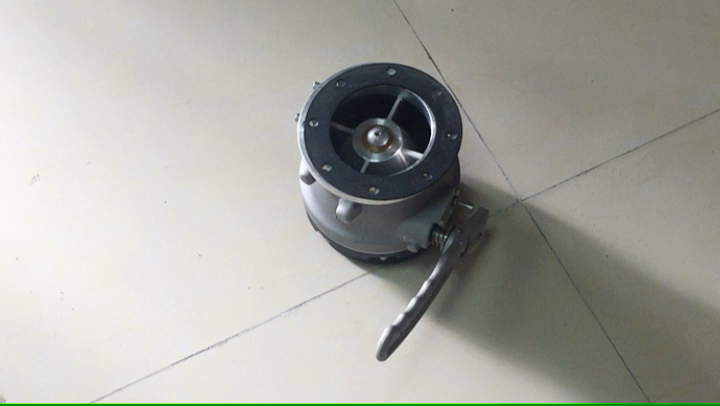

API Adaptor Valve is installed on one side of the bottom of the tanker,with the design of quick connecting structure.Interface dimension is designed according with the API RP1004 standards. This is an important component of the bottom loading system to get quick detachment without leakage,itis much more safe and reliable when doing the work of loading and unloading. This products suitable for water,diesel, gasoline and kerosene and other light fuel,but it can not be used in corrosive acid or alkali medium.
Benefit and Features
��Hardening Treatment The whole valve body is passed a special hardening process to improve its service life.
��Second Gear Open When do the handle open,there are two stalls to set the flow rate according to the customers'demand.
��Standardized Size Interface dimension is designed according to the API RP1004 standard,docking with the standard API connector.
��Light weight The main body is made of aluminum alloy,it is more light and sturdy.
��Superior Process Performance Reasonable design for the less pressure differences ensures the large input and output flow rate.
��With the SightGlass Convenient to observe the inner working situation.
��Foundation for Interlock Valve When install the interlock valve,the API Adaptor can be controlled by air.
��Easy-Maintenance When in the situation of no need to replace the valve,just to replace the sealing gasket.
Technical Data
Nominal diamter4"
Working pressure 0.6MPa
Max flow rate 2500L/min
Open method Mechanical
Temperature range ‐20~+70℃
Material Aluminum alloy
