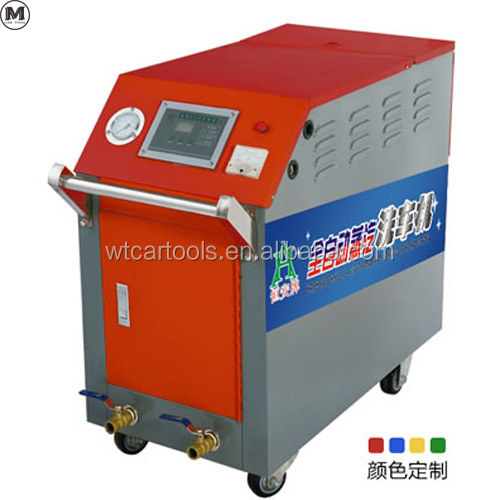

High pressure waterless steam cleaning machine for cars
Basic Information:
1. Feature(Best model for cars with thick dirty mud)
380V 3ph electricity power, two steam gunjets (can wash two cars at the same time, all day long working available) , It has steam humidity adjustment function for dry steam (clean for car interior and engine), wet steam (clean for car exterior and tire, etc.) and additional function of 8bar micro hot pressure water (clean for thick hard dirty mud)
2. Application Area
Car wash shop, Door to door car wash service, underground car wash business, parking lot (in supermarket, living department, industry zoom, park, etc.)
3. Function
Remove dust, oil, insect body, ice-cream, coke stains, etc. Full cleaning, disinfection and bad smell killing on car interior, exterior and engine.
4. Technical Parameter
Power resource | 380-420V AC 3ph, 50-60Hz |
Power | 12KW (Standby no loss) |
Steam Pressure | 0.8 MPa (8bar or 116psi) |
Steam Gunjet No. | 2 (available for using together all day long) |
Max Steam Temperature | 170℃ |
Effective Operating Temperature | 60℃-120℃ |
Water Consumption Rate | 26kg/h |
Humidity Adjustment | Available for dry and wet steam |
Continuous Work Time | Non-stop, All day long |
Size | 920(mm)x440(mm)x780(mm) |
Net Weight | 70 kgs |
Tank Capacity | 18 Liters (Can automatically supply by external water connection) |
Material | Stainless steel, Hi-Q sodium silicate for heat preservation & insulating |
Steam Hose Length | 10 meters |
5. Protection system
1) Current leakage automatically shutdown protection.
2) Overheat automatically shutdown protection.
3) Water shortage alarming and automatically shutdown protection.
4) Overpressure protection automatically shutdown protection, and the safety valve will also take effect to release pressure.
6.Advantage
1)Water& Energy Saving——1.5-2L, 0.8KW.H wash a car
2)Multi-function: Car inside, outside and engine washing——One Stop Wash
3)Steam Humidity Adjustment: stepless regulation
4)Environment Friendly: Free from detergent, but wonderful cleaning effect
5)Disinfection and Smell Removing,360 degree no dead corner
6)Mobile and Automacted Controlled: Texas imported chip, LCD display for working condition and defaults.
7)Various Models
Saturated Steam & High Pressure
Micro Hot Water & Self Service & Customized models
8)Multiple Safety Protection Measure: Digital detecting(pressure, temperature, water level) and alarm protection system; Safety valve; Shutdown protections of over-pressure, water shortage, electricity leaking and accident.
9)Durable: Stainless steel body, Hi-Q sodium silicate for heat preservation & insulating.
10)Imported Electricity Components and Important Parts.
11)Short Steam Generating Time, Steam Standby All the time.
12)Modularized Parts for Easy Maintenance.
13) Working All Day Long, Stable Pressure.
14)Guarantee: One year.
15) Inner Self Clean: Unique cleaning design of tank bottom, cleaning up the scale easily!
16) Certification: CE (European Certificate) & National QS Test
7. Advice on model choices
1) If you only have 220-240V 1ph electricity system, HF1060, HF2060 are suggested to you;
2) If you can have 380-420V 3ph electricity system, HF1090 and HF2090 are suggested, as they are of higher cost performance.
3) If the cars are of thick mud, HF2060 or HF2090 are suggested with the additional function of micro hot pressure water.
4) If your electricity system are not stable, or you want to offer door to door car wash services, LPG powered model HA1190 is suggested to you.
All types of steam car washing machine:
| Power Resource | Model | Gunjet | Function | Voltage | Pressure | Max | Power | Water Consumption | Net Weight | Size |
| No. | PSI | Temperature | KW | L/H | Kg | mm x mm x mm | ||||
| Electric | 1060 | 1 | Steam & Humidity Adjustment | 220V AC Single Phase | 120 | 170℃ | 6 | 13 | 63 | 920x440x780 |
| 2060 | 1 | Steam & Humidity Adjustment & Micro Hot Water | 220V AC Single Phase | 120 | 170℃ | 6 | 13 | 68 | 920x440x780 | |
| 1090 | 2 | Steam & Humidity Adjustment | 380V AC 3 Phases | 120 | 170℃ | 12 | 26 | 63 | 920x440x780 | |
| 2090 | 2 | Steam & Humidity Adjustment & Micro Hot Water | 380V AC 3 Phases | 120 | 170℃ | 12 | 26 | 70 | 920x440x780 | |
| Liquefied Petroleum Gas | 1190 | 2 | Steam & Humidity Adjustment | 24V DC battery for control system | 120 | 170℃ | LPG 1.2 kg /h | 26 | 94 | 920x470x780 |
