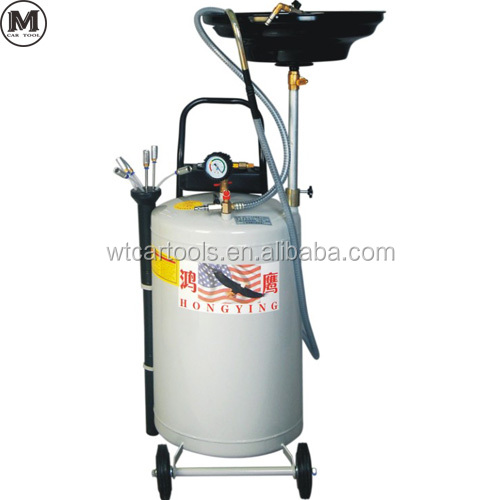

Waste Oil collecting and extracting machine 8085
Advantages of our products:
1. ladder type oil pan avoid splash of hot waste oil
2. Ball valves make excellent performance of sealing. It can be used for 10000 times, much better than Single direction push valve.
3. Aluminum Alloy cap for oil tubes, no shrink under high temperature ,more endurable than plastic caps.
4. There are steel wires in the oil pipes between tank and oil pan (or motor of cars)
5. More reasonable structures : the steel pipe under oil pan is powder coated, insert directly in the tank to avoid too high pressure in the tank
Feature:
1. Imported vacuum generator is endurable
2. Imported sealing ring, ladder type oil pan with filter mesh
3. Thickened steel make sure stable of the machine
4. Each machine has passed 15 minutes test before leaving the factory
Parameters:
Tank capacity | 80L |
Working pressure | 2.5-8.5BAR |
Extracting pressure | <3bar |
Vacuum | 0-0.1MPA |
Oil temperature | 40℃-60℃ |
Pumping needle | Stainless steel 2pcs, High temperature resistant tube 4pcs 6cm/8cm |
Standard accessories | Oil pan, generator, vacuum gauge, muffler, ball valves 5pcs,plastic tool box, safety valve |
Fixable wheels | 2pcs |
Universal wheels | 2pcs |
GW. | 26KGS |
Packing size | 470*430*790mm |
Collecting Tube Length | 1.5m |
Extraction tube length | 1.5m |
