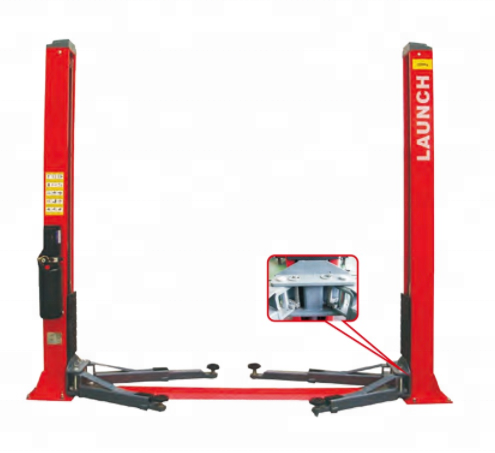

JLY240SC 4000 kg used hydraulic car lift for car service shop car lifts home garage
JLY Car Lift JLY240SC is 4000kg lifting capacity two post gantry lift, with Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable. it make your work more stable & convenience and save your time.
Specification:
| Lifting capacity | 4000kg / 10000Lbs |
| Lifting height | 1870mm |
| Min. Height | 105mm |
| Overall height | 3900mm |
| Overall width | 3420mm |
| Width between columns | 2860mm |
| Lifting time | <50seconds |
| Lower time | <30seconds |
| Power supply | 220V-380V 1ph/3ph |
| Motor power | 2.2kw |
Features:
1.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
2.Japanese oil sealing elements, oil pipe explosion protective device, overload protection, international brand oil pipe.
3.Direct drive twin cylinders, with safety steel wire as synchronization.
4.Polymer wear-resistance slider.
5.Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable.
6.Gantry type, for operation more easy, no obstruction onto the floor.
7.Roof protection safety device, automatic arm lock by built in ratchet tooth.
8.Shot blasting and high temperature baking powder coated surface finish.
9.Pass CE6T static test and 4.6T dynamic test
Here Are Some Details of Me :
4tons Gantry Autolift JLY240SC
What's The Total Height of Your Workshop ?
Overall Size of JLY240SC :
Foundation Diagram of JLY240SC Gantry Car Lift:
What's The Best Installation Site of Garage Room ?
Packing of JLY240SC Car Lift :
JLY Car Lifts:Double Hydraulic Cylinder & High Strength Chain Drive & Single Point Safety Unlocking Designed.
Reinforced Floor 4t JLY240SBD Heavy Duty 5t JLY250SC Stable 4.5t JLY245SC
