electric reinforced plate floor elevador de coches 4tons used car hoist electric car hoist
JLY Car Lift JLY240SBD is 4000kg lifting capacity stable reinforced plate floor double hydraulic autolift with Single point release/unlocking system. Safety is the most important for work.
Specification:
Lifting capacity: 4000kg / 10000Lbs
Lifting height: 1870mm
Overall height: 2865mm
Overall width: 3860mm
Width between columns: 2860mm
Lifting time: <50seconds
Lower time: <30seconds
Power supply: 220V-380V 1ph/3ph
Motor power: 2.2kw
Features:
1. Direct drive twin cylinders, with safety steel wire as synchronization
2. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
3. Automatic arm safety lock and dook type post lock
4. Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable
5. 3-stage Screw-up pads suitable for low chassis vehicles,more reliable.
6. Door opening protection rubber as standard
7. Laser cutting surface
8. Shot blasting and high temperature baking powder coated surface finish
9. Japanese oil sealing elements, oil pipe explosion protective device, overload protection.
10. Polymer wear-resistance slider
11. Pass CE6T static test and 4.6T dynamic test
Details of Me for You here:

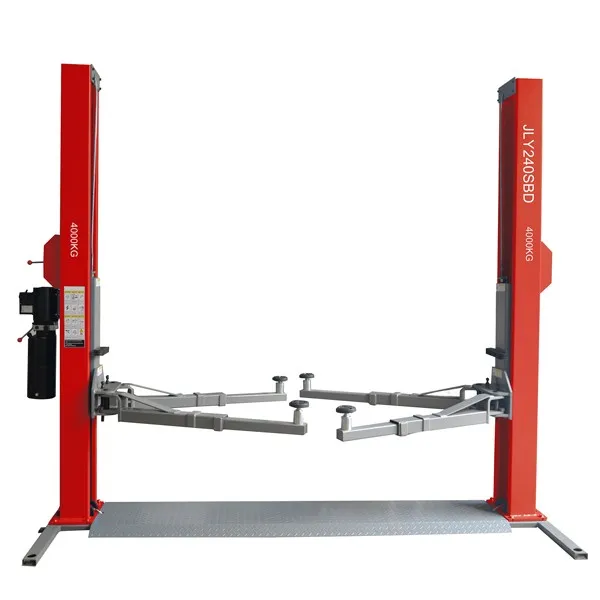

Stable reinforced plate floor hydraulic 2 post car lift JLY240SBD.
What's The Total Height of Your Workshop ?

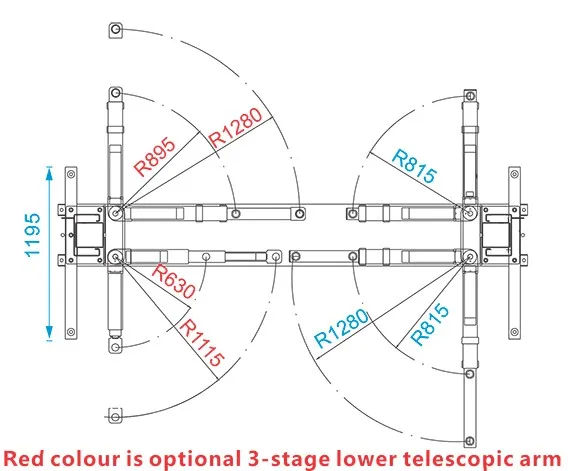

Overall Size of JLY240SBD :

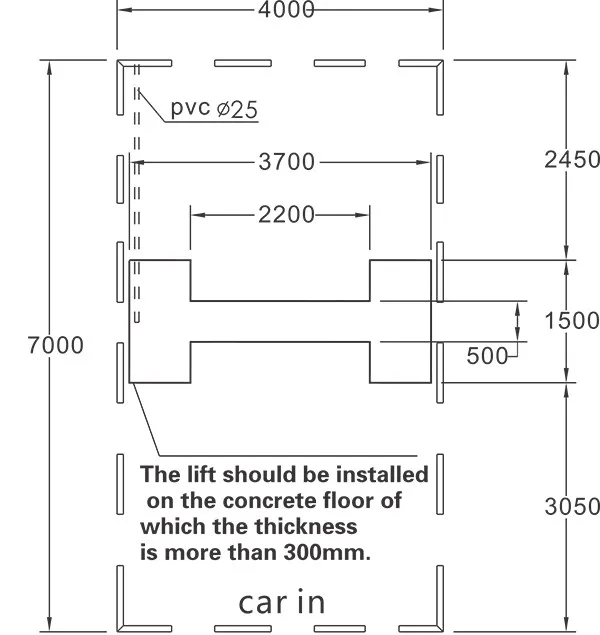

Foundation Diagram:
JLY240SBD Reinforced Plate Floor Car Lift:
What's The Best Installation Site of Garage Room ?
JLY Car Lifts:Double Hydraulic Cylinder & High Strength Chain Drive & Single Point Safety Unlocking Designed.
Plate Floor 4t JLY240SB Heavy Duty 5t JLY250SC Stable 4.5t JLY245SC
Packing of JLY245SC 2 post car lift :
Q1. What is your terms of packing?
A: Generally, JLY240SBD 4.0t reinforced plate floor car lift will be iron shelf and plastic paper packaged.
Q2. What is your terms of payment?
A:1. 100% Trade Assurance.
A:2. T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the JLY240SBD 10000lbs two post car lift.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF are available for JLY240SBD 4000kg double hydraulic autolift .
Q4. How about your delivery time?
A: Generally, it will take 12 to 20 days after payment received. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, JLY240SBD 4.0t car hoist is Ok to make the model no. as yours.
Q6. What is your sample policy?
A: Sample is available if we have ready parts in stock, but the customers have to pay the costs of sample and the shipping.
Q7: How do you make our business long-term and good relationship?
A:1. Good quality and competitive price to ensure our customers benefit ;
A:2.You are my best friend no matter where they come from.Best service offered to you all the time,
