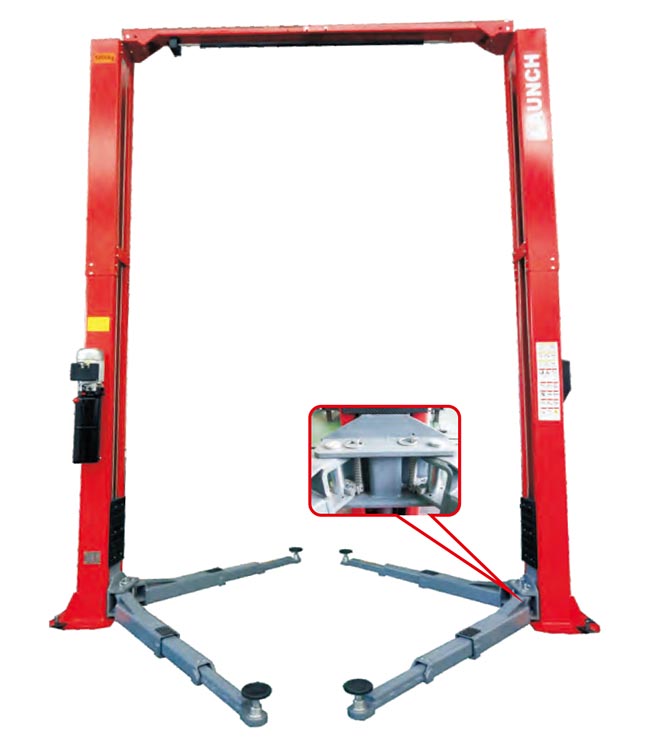

jly250sc electric hydraulic heavy duty 2 post 5tons autolift car hoist
JLY Car Lift JLY250SC is 5000kg lifting capacity two post gantry lift, with Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable. it make your work more stable & convenience and save your time.
Specification:
Lifting capacity: 5000kg
Lifting height: 1850mm
Min. height: 85mm
Overall height: 3900mm
Overall width: 3560mm
Width between columns: 3000mm
Lifting time: <50s
Lower time: <30s
Power supply: 220V-380V 1ph/3ph
Motor power: 3kw
Features:
1.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
2.Japanese oil sealing elements, oil pipe explosion protective device, overload protection.
3.Direct drive twin cylinders, with safety steel wire as synchronization.
4.Polymer wear-resistance slider.
5.Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable.
6.Gate type, for operation more easy, no obstruction onto the floor.
7Roof protection safety device, automatic arm lock by built in ratchet tooth.
8.Shot blasting and high temperature baking powder coated surface finish.
9.Pass CE 7.5T static test and 5.7T dynamic test.
Here Are Some Details of Me :

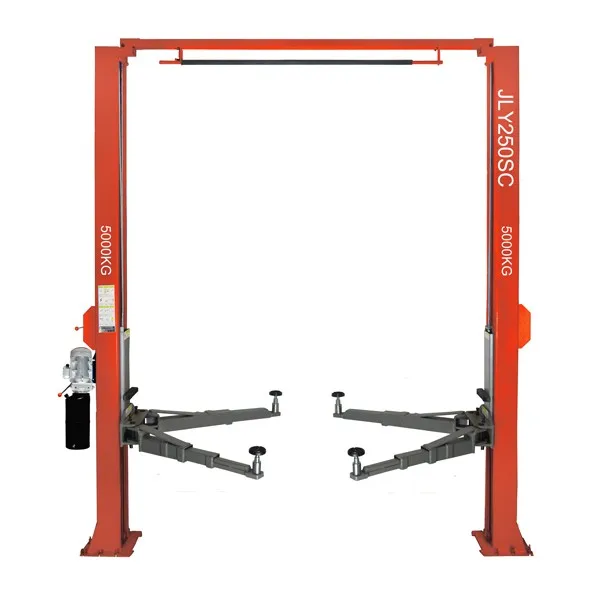

5tons Heavy Duty Gantry Autolift JLY250SC
What's The Total Height of Your Workshop ?

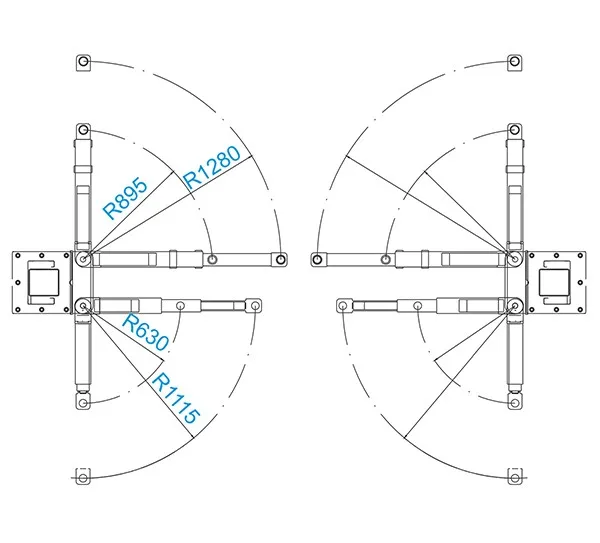

Overall Size of JLY250SC :

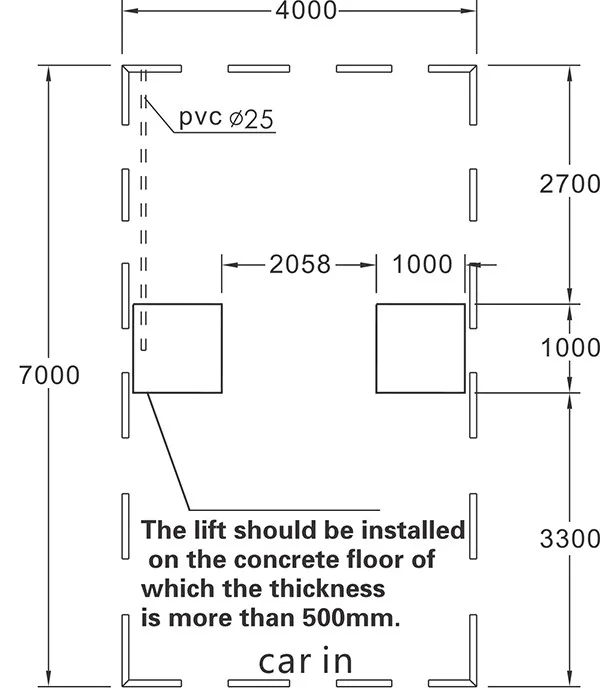

Foundation Diagram of JLY250SC Heavy Duty Gantry Car Lift:
What's The Best Installation Site of Garage Room ?
Packing of JLY250SC 2 post heavy duty car lift :
JLY Car Lifts:Double Hydraulic Cylinder &High Strength Chain Drive &Single Point Safety Unlocking Designed.
Reinforced Floor 4t JLY240SBD Single point release JLY240SB Plate Floor 3.5t CW235SB
Clear Floor 4tons JLY240SC Heavy Duty 5t JLY250SC 3m Passing Width JLY245SC
Q1. What is your terms of packing?
A: Generally, JLY250SC 5.0t hydraulic car lift will be iron shelf and plastic paper packaged.
Q2. What is your terms of payment?
A:1. 100% Trade Assurance.
A:2. T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the JLY250SC 5.0t heavy duty garage car lift.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF are available for JLY250SC 5.0t car lift .
Q4. How about your delivery time?
A: Generally, it will take 12 to 20 days after payment received. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, one set JLY250SC 5.0t gantry car lift is available.
Q6. What is your sample policy?
A: Sample is available if we have ready parts in stock, but the customers have to pay the costs of sample and the shipping.
Q7: How do you make our business long-term and good relationship?
A:1. Good quality and competitive price to ensure our customers benefit ;
A:2.You are my best friend no matter where they come from.Best service offered to you all the time,
Located in Guangzhou City and founded in 1999. is a global supplier of auto maintenance service supplier.
2post/4post/scissor/single/underground/bus Car lift, Diagnostic tool, Wheel alignment, Tire changer, Wheel balancer, Spray booth, Paint lamp, Frame machine, Air Condition machine, ATF changer, spot welder, battery charger, washing machines, etc.
We adhere to the tenet of "Customer First", with the idea of "Quality, Honesty, and Innovation". Please feel free to contact us for further information
