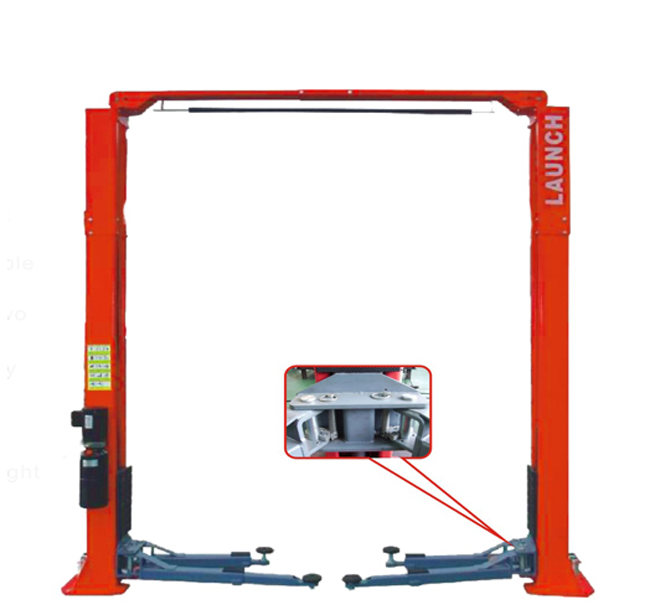

used hydraulic piston garage car lift JLY240SB car elevador car hoist lift
JLY240SB is 4000kg lifting capacity two post floor plate lift, with Single Point Release System. It make your work more stable & convenience and save your time.
Specification:
| Lifting capacity | 4000kg |
| Lifting height | 1870mm |
| Overall height | 2820mm |
| Overall width | 3420mm |
| Min.Height | 105mm |
| Inner width | 2860mm |
| Power supply | 220V-380V 1ph/3ph |
| Motor Power | 2.2KW |
| Lifting time | 50s |
| Lower time | 30s |
Features:
1. Direct drive twin cylinders, with safety steel wire as synchronization.
2. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
3. Automatic arm safety lock and hook type post lock.
4. Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable.
5. 3-stage Screw-up pads suitable for low chassis vehicles,more reliable.
6. Door opening protection rubber as standard.
7. Laser cutting surface.
8. Shot blasting and high temperature baking powder coated surface finish.
9. Japanese oil sealing elements, oil pipe explosion protective device, overload protection.
10. Polymer wear-resistance slider.
11. Pass CE6T static test and 4.6T dynamic test.
What The Details of Me You Want to Know?
4tons Gantry Autolift JLY240SB:
What's The Total Height of Your Workshop ?
Overall Size of JLY240SB :
Foundation Diagram of JLY240SB Car Lift:
What's The Best Installation Site of Garage Room ?
Packing of JLY240SB 2 post car lift :
JLY Car Lifts: Double Hydraulic Cylinder & High Strength Chain Drive & Single Point Safety Unlocking Designed.
Reinforced Floor 4t JLY240SBD Heavy Duty 5t JLY250SC Stable 4.5t JLY245SC
1. One year will be offered warranty for JLY240SB 4tons plate floor car lift.
2. One set JLY240SB car lift available to order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will make the necessary documents for your Import customs clearance. When you receive your JLY240SB 4tons plate floor car lift, please give me a feedback.If you have any questions about the problem, contact with us, we will offer the solution for you as the situation.
Q1. What is your terms of packing?
A: Generally, JLY240SB 4t floor plate car lift will be iron shelf and plastic paper packaged.
Q2. What is your terms of payment?
A:1. 100% Trade Assurance.
A:2. T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the JLY240SB hydraulic autolift.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF are available for JLY240SB hydraulic car lift.
Q4. How about your delivery time?
A: Generally, it will take 12 to 20 days after payment received. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, JLY240SB hydraulic floor plate car lift is Ok to make the model no. as yours.
Q6. What is your sample policy?
A: Sample is available if we have ready parts in stock, but the customers have to pay the costs of sample and the shipping.
Q7: How do you make our business long-term and good relationship?
A:1. Good quality and competitive price to ensure our customers benefit ;
A:2.You are my best friend no matter where they come from.Best service offered to you all the time.
Located in Guangzhou City and founded in 1999. is a global supplier of auto maintenance service supplier.
2post/4post/scissor/single/underground/bus Car lift, Diagnostic tool, Wheel alignment, Tire changer, Wheel balancer, Spray booth, Paint lamp, Frame machine, AC machine, ATF changer, spot welder, battery charger, washing machines, etc.
We adhere to the tenet of "Customer First", with the idea of "Quality, Honesty, and Innovation". Please feel free to contact us for further information
