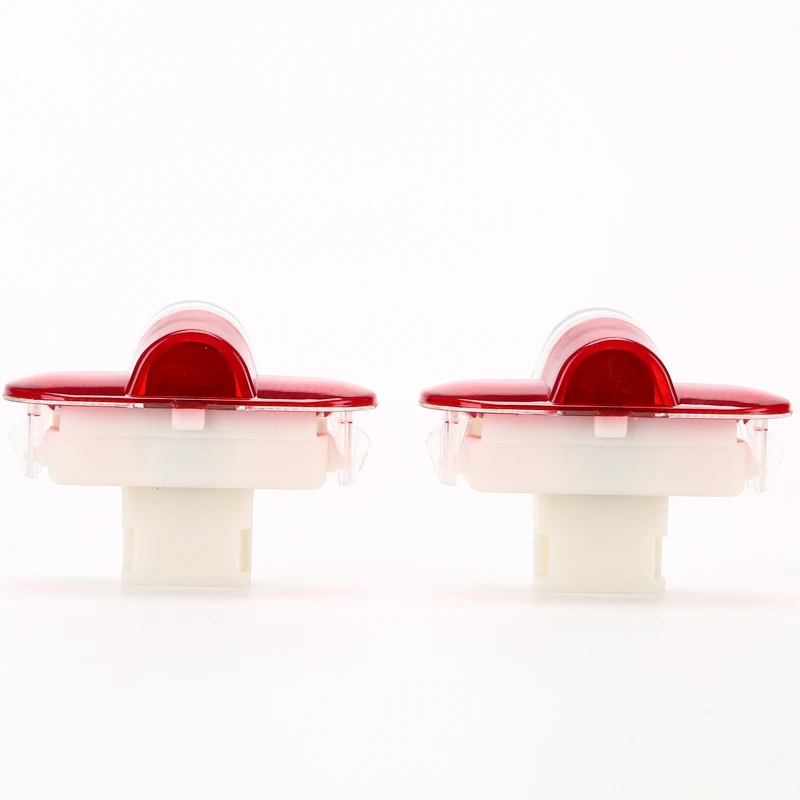

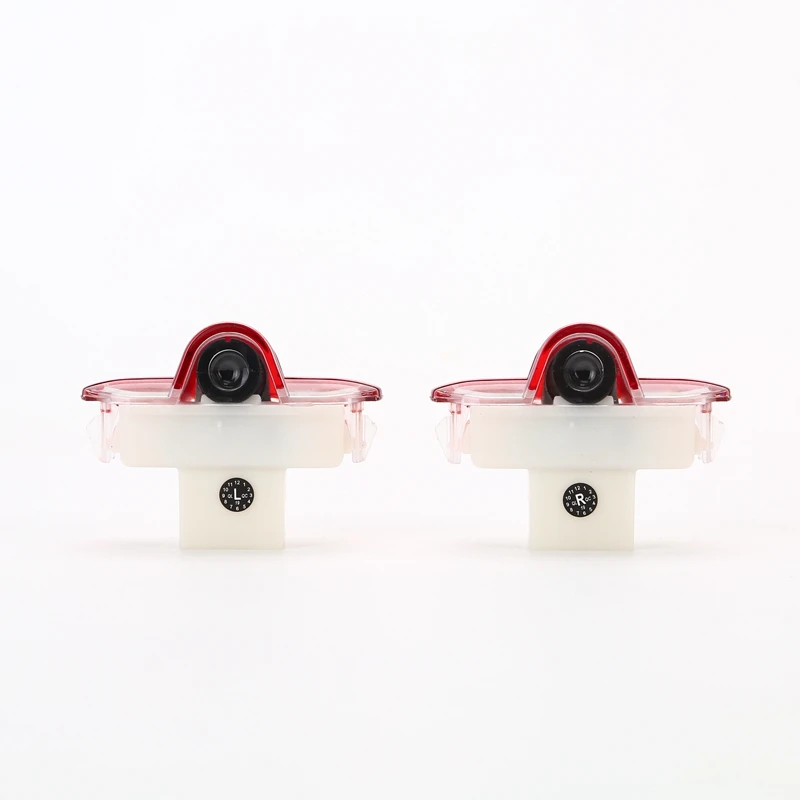

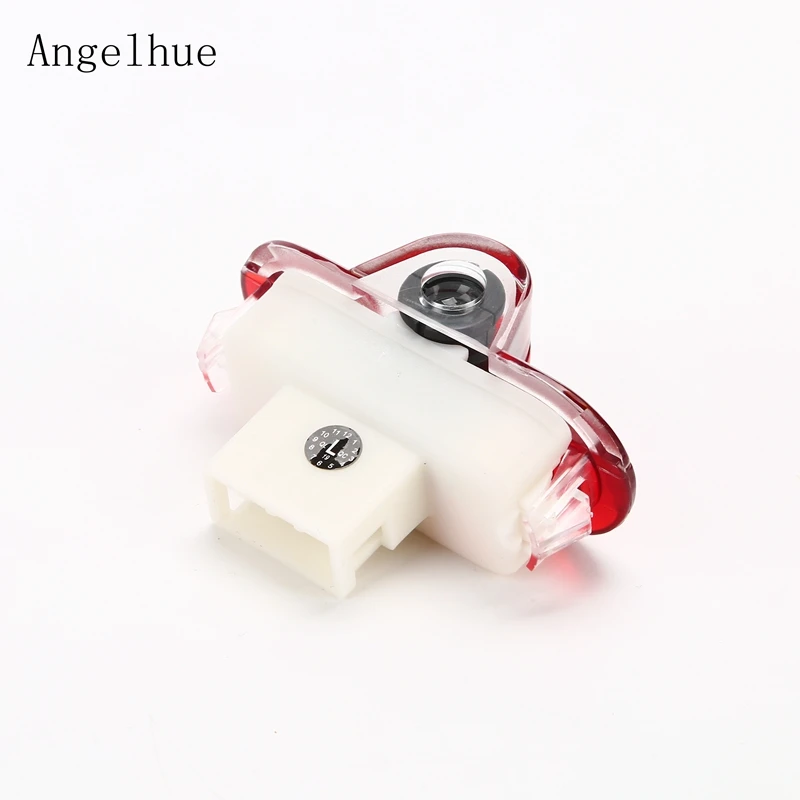

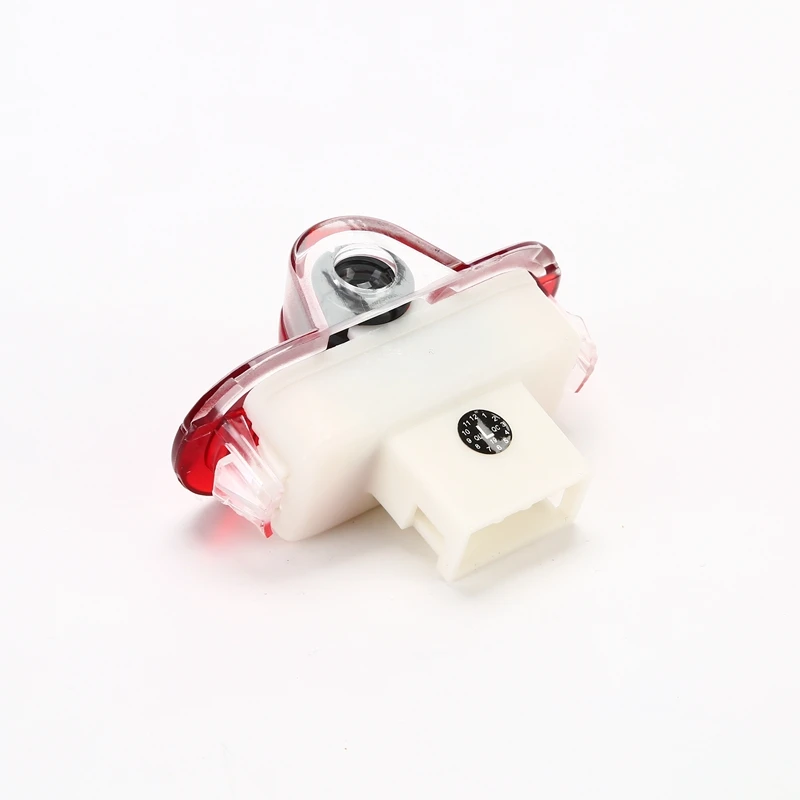

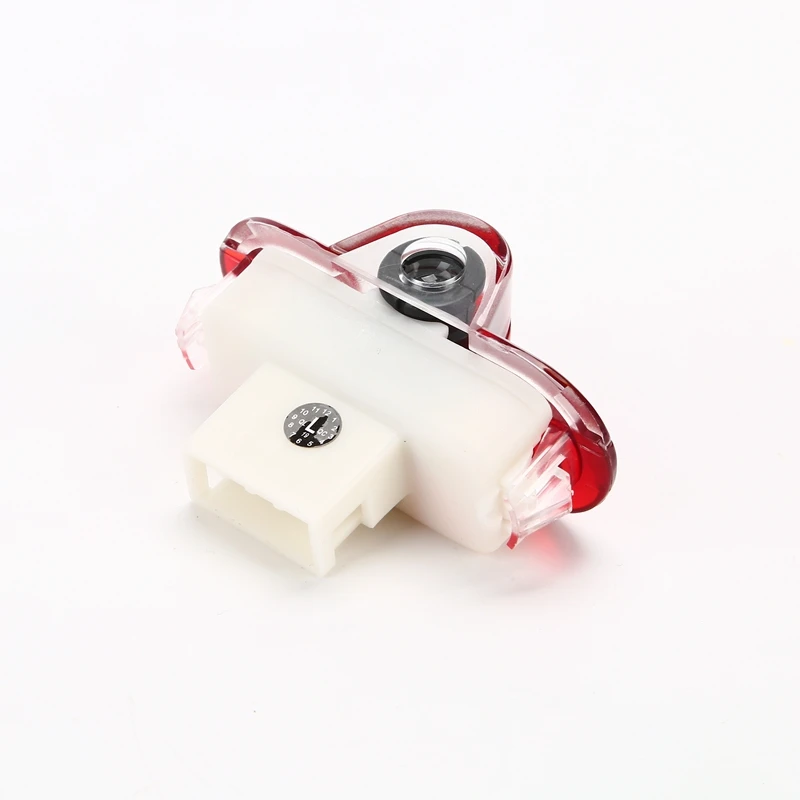

ANGELHUE 2019 new productlogo puddle lights fit for ford LED door logo light projector door lightning
This Car Logo LIGHT can fit all below models:
| FOR FORD | Mondeo 2007-2013 | 2 |
Passat | S-MAX 2007-2008 | 2 |
shot lights projected image
No need to change the line,
simply remove the original lights,
no need to purchase the harness,
without decoding!
Just intall the lamp.
If you need for other LOGO, or customize your own LOGO,
pls contact with our sales, who will offer more details for you.
Description:
1. LED LOGO LIGHT is a car new green light.
2. Car logo for vw logo Used CREE XP-E R3 LED
3. Germany advanced constant current control technology, luminous uniformity, identity clear;
4. No flickers, no errors, no warnings, no interference to FM radio;

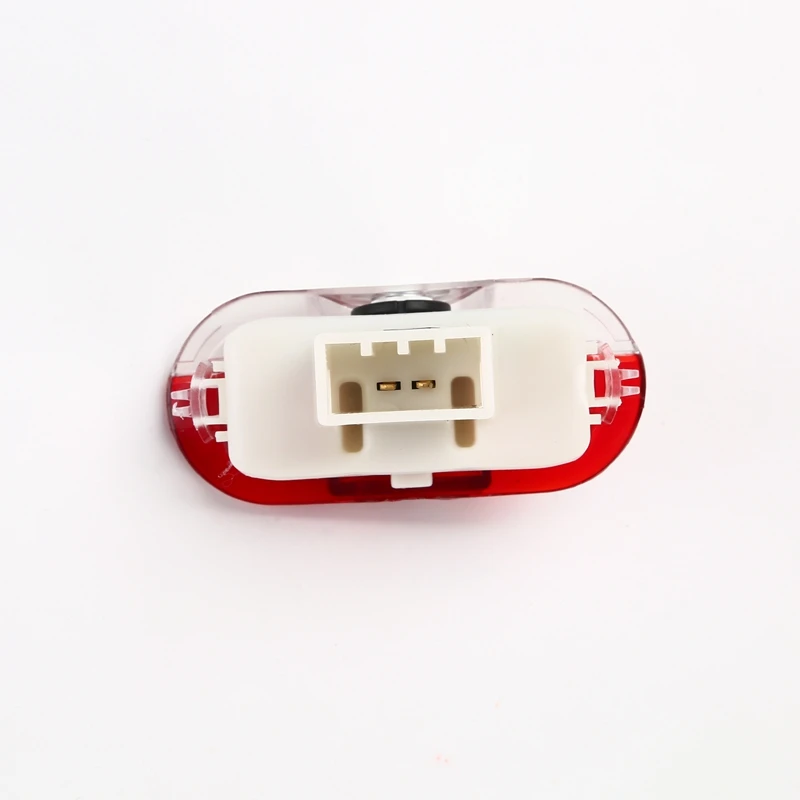

5. Car logo for vw logo is OEM interface, easy to install;
6. Automatically shut down to prevent the long hours of work at the start of the 150S;
7. Strictly control of the production process, do 100% tests for each product,
the working current, brightness, sharpness, and the aging test;
Our company has the most professional mechanical, optical, thermal simulation,
electronic field design team, to meet the special needs of the customers for special products.
Absolute Maximum Ratings at Ta=25 °C
Parameter | Symbol | Rating | Unit |
Power Dissipation | P | 3.5 | W |
Input Voltage Range | VIN | 9-30 | V |
Input Current | IIN | 0.3A/DC13.5V | A |
Output Voltage | VLED | 3.2 | V |
Output Current | ILED | 0.7 | A |
Power Efficiency | η | >90 | % |
Power Reverse Polarity Protection | YES | ||
EMC Protection | YES | ||
Output Short Circuit Protection | YES | ||
Output Open Circuit Protection | YES | ||
Operating Temperature Range | Topr. | -40 to +120 | °C |
Note:
1.IV is measured with an accuracy of ±5%
2.Luminous Flux Error in ±5%
Typical Electrical/Optical Characteristic Curves(25°C Ambient Temperature Unless Otherwise Noted)
Most complete, factory direct sales, cost-effective, welcome to buy
We will provide you the final price and best quality
thank you!
