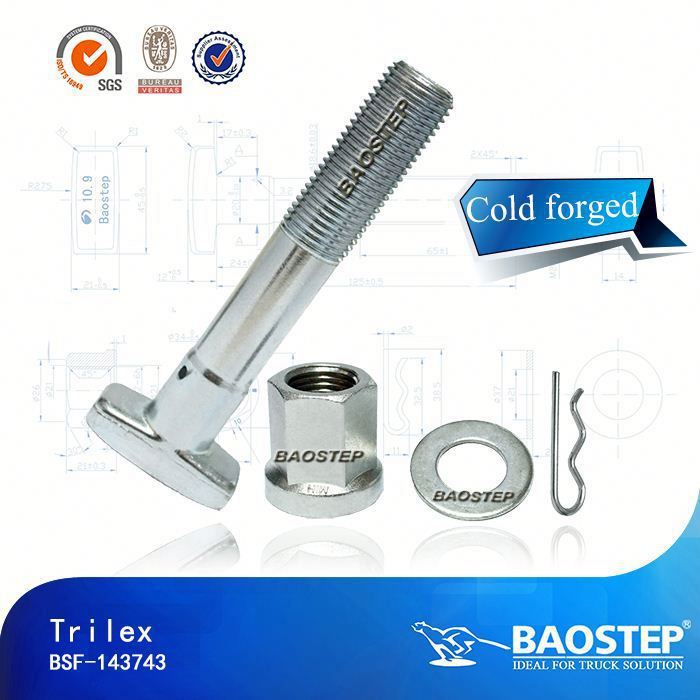

BAOSTEP Excellent Quality Iso Certified Supplier Bolt And Screw For Trilex

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Guangzhou Baostep Industrial Limited
  • Place of Origin: Guangdong, China (Mainland) Brand Name: Baostep ; BSF
    Model Number: BSF-143743 125L For Trilex Standard: ISO/GB/DIN/ANSI/JIS/BS
    Certification: ISO9001:2008/ TS16949:2009 Qiality/Grade: 10.9/12.9
    Material: ASTM5140(40Cr)/ML40Cr/435Cromo/SCM435 HRC: 36-44
    Tensile Strength: 1160N/mm2 ~1340N/mm2 Surface Treatment: Phosphated/Galvanized/Black Oxid
    Product Standard: ISO/GB/DIN/ANSI/JIS/BS Packing: Neutral export carton & Pallet
    Advantage: Produce strictly according to drawing(or Subject: # BSF-143743 wheel bolt nut for Trilex T
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces

BAOSTEP® BAOSTEP Excellent Quality Iso Certified Supplier Bolt And Screw For Trilex



Product Description
 SIZE BOLT WHEEL NUT
 No. OEM LSW  H
BSF-143541659112615

M22x2.0

60

 27      21

BSF-143542

 659112615

M22x2.0

60

 27      25

BSF-143681 659112501

M22x2.0

110  27      21
BSF-143683 659112501

M22x2.0

110 27      30
BSF-143701659112612

M20x2.0

115  27      21
BSF-143703659112612

M20x2.0

115  27      30
BSF-143741659112503

M20x2.0

125  27      21
BSF-143743659112503

M20x2.0

125  27      30
BSF-143761659112613

M20x2.0

130  27      21
BSF-143763659112613

M20x2.0

130  27      30
BSF-143781659112614

M20x2.0

145  27      21
BSF-143783659112614

M20x2.0

145  27      30
KEY PARAMETERS

 TechnologyCold Forged
Rockwell Hardness36° - 39°
Tensile Strength1180N/mm2
Grade/Material10.9-ML40Cr
Surface TreatmentGalvanized

MODEL PARAMETERS


Dimension

Bolt: M20x2.0x125mm

Nut: SW27  H30mm

Carton Size(L*W*H)

42cmX24cmX14cm

Packing Quantity

5pcs/box ; 10boxes /Ctn ; 50pcs/Ctn

20GP container:

60000 pcs


    PRODUCT IMAGES



   SIMILAR MODELS    Pls click to see more>>





   RECOMMENDED PRODUCTS     Pls click to see more>>


  for Trilex

  series >>



  for Daihatsu

  series >>



  for Hyundai

  series >>



  for Isuzu

  series >>


   OEM PROCESS


1. Body Formed Directly,Precise Dimensions,No Defects,Roughness less than 3.2 um.

2. Verticality & Concentricity tolerrance less than 0.1mm.

3. No Burrs Crack & Roughness less than 6.3 um on the head.

4. Distinct Thread, High Assembly Accuracy.

Company Information




   OUR ADVANTAGES


We have advanced inspection equipments which helps to guarantee the precise size and the best quality. Those testing machines are more than 10 types, such as Rockwell hardness test, 10 ton Tensile strength, Salt spray test, Metallography microscope, etc.


   ABOUT US


Founded in August 2003 and with 10 years’ growth, Baostep has developed into one of the leading manufactures specialized in R&D, production and export. We have more than 2,000 kinds of high-tensile fasteners for different commercial vehicles with capacity of 3,000 tons per month.Baostep will never stop improving service and products quality to provide ideal choice for truck solution.Bolt And Screw


   OUR CERTIFICATES


We have passed ISO/TS16949:2009 certification in 2012 and trademark “BAOSTEP” are famous in many countries. Until now we have possessed 33 national patents  such as Invention Patent 3; Utility Model Patent 20 and Industial Design Patent 10.


   EXHIBITION SHOW


Our products have been sold to South America, Eastern Europe, Middle East, South-East Asia  and other regions, and have been favored and trusted by domestic and overseas customers.Covering 65 countries and area



Packaging & Shipping




   Packaging & Shipment & Payment


We can arrange shipment by Sea,Express . For the terms of payment, we accept T/T,L/C,D/P.

Our Services




   OUR SERVICE

CUSTOMISED (OEM/ODM)
We have our own factory and own designers. Accept OEM/ODM customers, you are welcome to cooperate with us. Strict QC before shipping to ensure every product you get is perfect.BAOSTEP Excellent Quality Iso Certified Supplier Bolt And Screw For Trilex
Considerate customer reception service

1. For customers visit,we provide free local pickup service in Guangzhou city.

2. With special and responsible staff to offer and solve customer problems in the fastest manner.

3. Senior leader is present in the reception to guarantee customer trust and satisfaction.

Considerate customer reception service

Tel:0086-20-32376088
Email:

sales@

baostep.com

Web:http://www.baostep.com/ http://baostep.en.alibaba.com
Office Add:7F, Block D3, Link Development Business Park, 3# of No. 38, Huicai Road, Dongpu, Tianhe District,Guangzhou China.
Factory:No.6 Mawu Industrial Zone,QiaoliChangping Town,Dongguan




FAQ




                FAQ

Q1Why choose us?

a.More than 10 years professional team in auto fastener industrial.

b.Value for money, high quality and competive price.

c.Fast delivery.

d.Baostep-a strong brand, deliveries in over 60 countries

e.Freely offer LCL service.Save time and money.

Q2What`s your auto fastener guarantee ?
Strictly complying with quality management systems of ISO9001/TS16949. If you have any problems concerning quality, we will offer you a refund or a replacement.
Q3How many quantities about packaging for each item?
Without quantity limitation for inventory goods; more than 3000pcs/item for customization order.
Q4How long is the date of delivery?
For inventory goods, we will deliver within 2 working days. For customization order,30-60days.
Q5What is the technology difference between “Baostep wheel bolt” to “Ordinary wheel bolt”?
Different viewpointBaostep wheel boltOrdinary wheel bolt
Machinefull automatic machinemanual
Metallographygoodso-so
MaterialML40CrASTM5140Cr
RockwellHRC36-39HRC33-38
Tensile Strengh1180N/mm1110N/mm
Decarburized Layernonexistencemore or less existence
Surfacevery smoothslight rough
Qualityvery stablenot stable
Application Lifelong life in abnormal conditionnormal condition



M22x1.5
