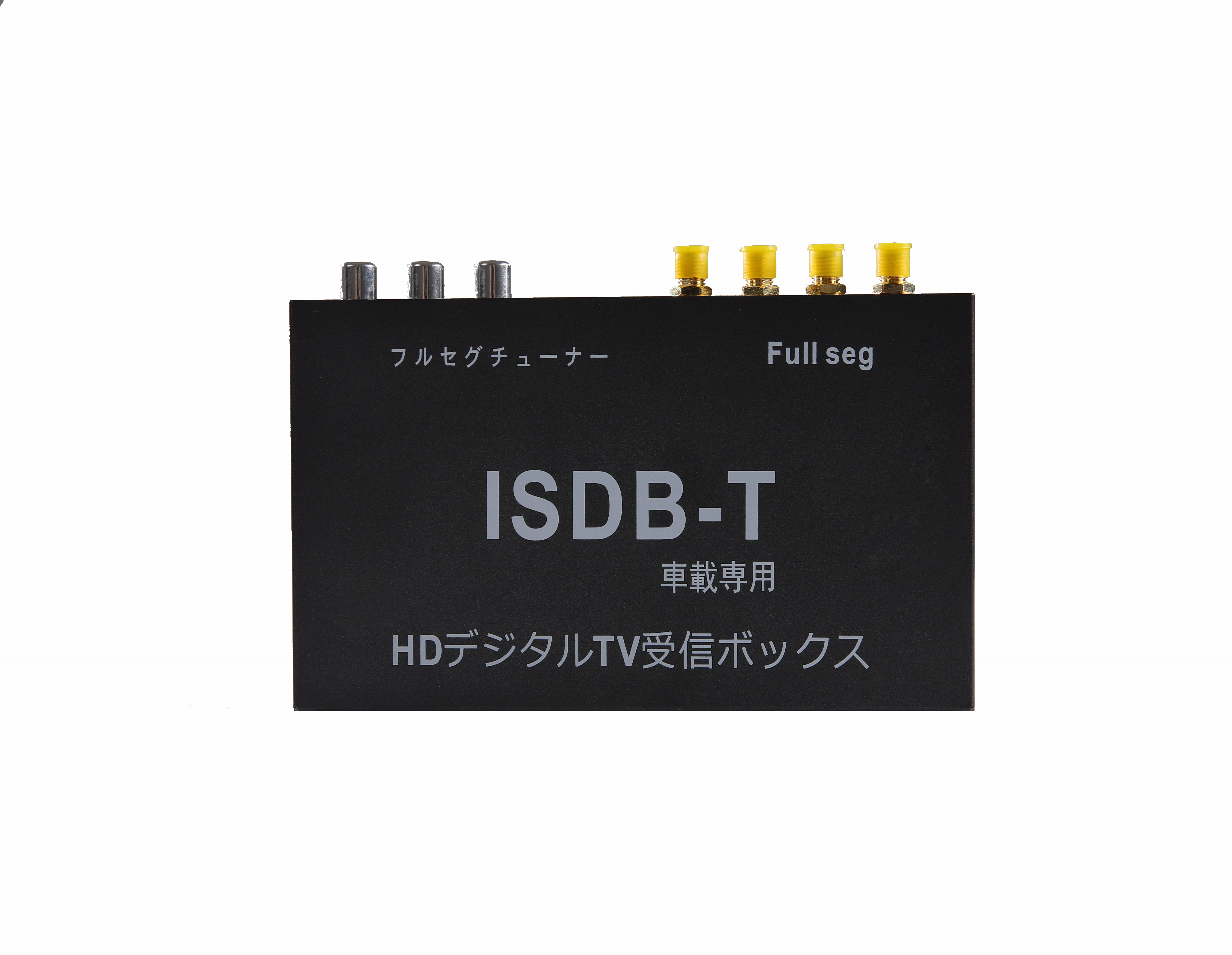

Japanese digital tv receiver set top box
Description: CAR Mobile HD ISDB Full Seg Receiver
Specification
RF Input: UHF:470MHz~806MHz
Input Impedance:50Ω
Signal Level:-80dBm~-10dBm
Connector Type: SMA type terminal×2
OFDM decoder IF bandwidth: 6M
Transmission Rate:23.234Mbit/s Max( 64 QAM ,CR:7/8,GI:1/32,13Segment)
Video Decoder : MPEG-4 Level 5 / H.264 Level 3
MPEG-2 MP@HL/ML
Video System: PAL/NTSC (optional)
Video Output: 1±0.3Vpp
Audio Decoder: MPEG-2 AAC
Audio Channel: R/L/ST
Audio Output: 1Vpp 47Kohm Adjustable With E Volume
Power Cable And Jack: 4Pins:
1. DC+12~24V Input
2. CAR Back (Audio and video input control)
3. GND
4.NC
IR Extension Jack: For IR Extension Box
A/V Output Jack: Video RCA Jack×1,Audiop RCA Jack(R/L) ×2
Upgrade and Multimedia Port: TF Card
S-AV connector :
Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)2
Ouput Jack: Video RCA Jack×2
ANT1,ANT2 Input Jack: Female SMA Type
Operating Temperatuer:-10℃~+50℃
Storage Temperatuer:-40℃~+65℃
Power Supply: DC+12V~24V±10%
Power Consumption: Running: 4.5W Max.
Standby: <0.85W.
Dimension: 25(H)*118(L)*78(W) mm
Main Features
Connector type ISDB-T receiver combo type full module
Twin tuners with diversity structure TV box for high speed driving
Subminiature appearance, Easy to install
Special design for car using, support high speed above 230km/hours
Support MPEG-2 MP/HL, MPEG-4, H.264 decoder
Audio Decoder: MPEG-2 AAC
Supports multiple OSD languages menu : English\ Portuguese\ Spanish
EPG (Electronic Program Guide) Function
Channel search with automatic/manual scan
T- Flash card ports:For Firmware update(Basic)
A/V output: composite Analog 2 CH Steeo L/R(RCA port ,basic)
A/V input load 1system; S-AV Jack port ,optional
Standby consumption less than 0.85W (True Standby)
Main product input power: DC 12-24V
