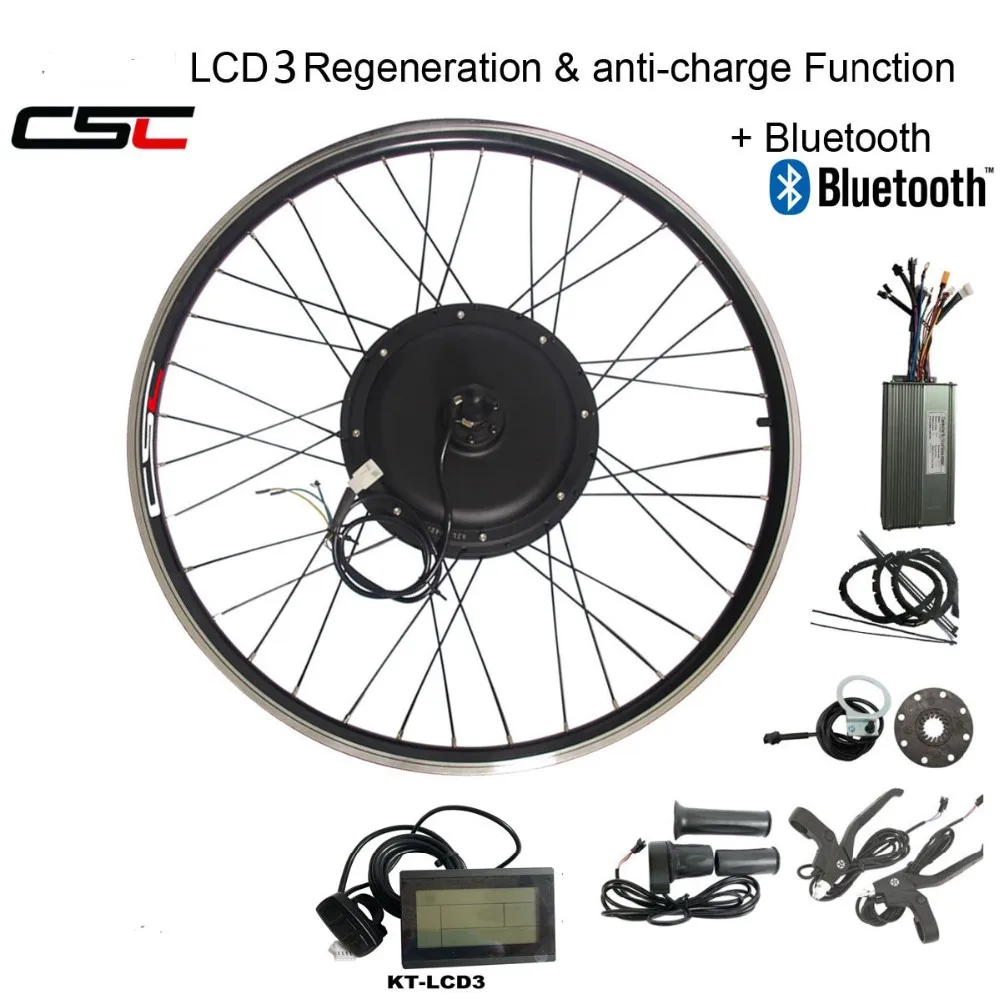

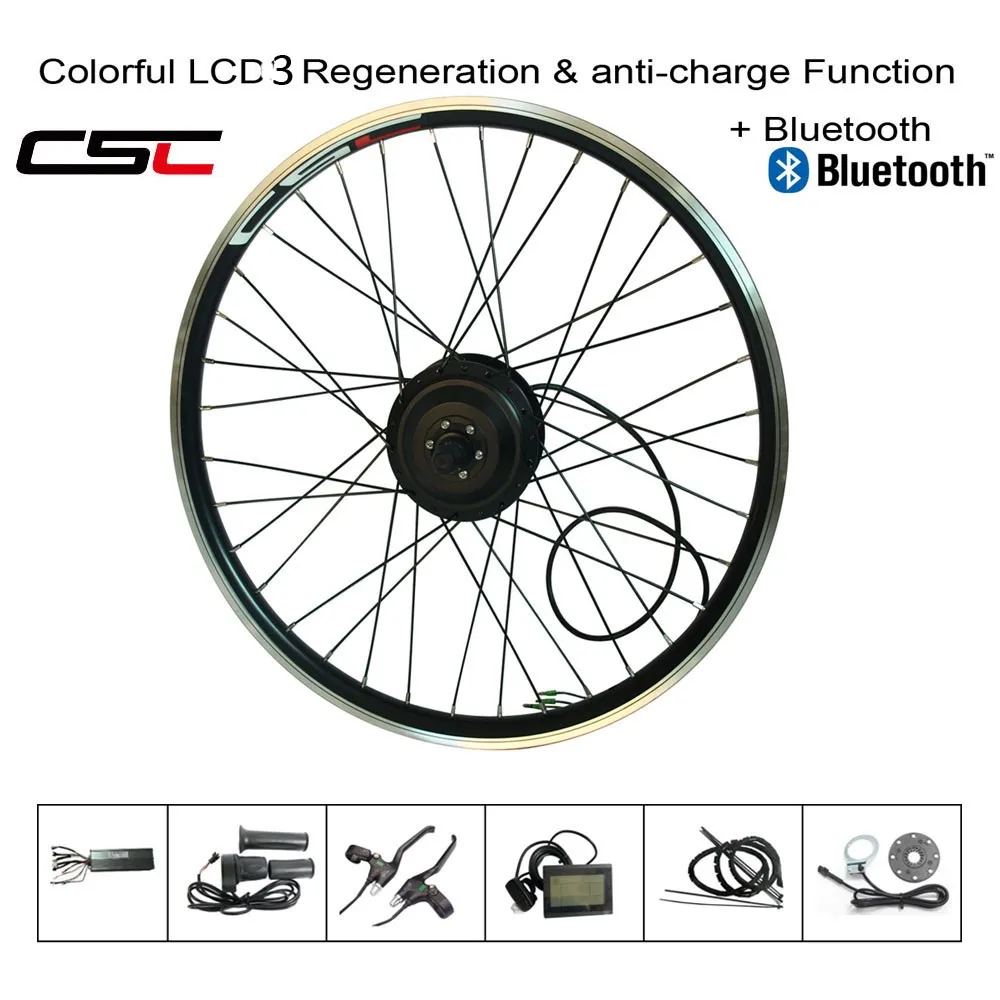

Item | Description | Remark |
Model | 26EFBCK48V750W | |
Motor | 1. 48V 750W Brushless Non-gear Hub Motor 2. V Brake/ Disc brake available 3. Efficiency>80% 4. Load≤200K | |
Rim | Double-wall Aluminum alloy rim | |

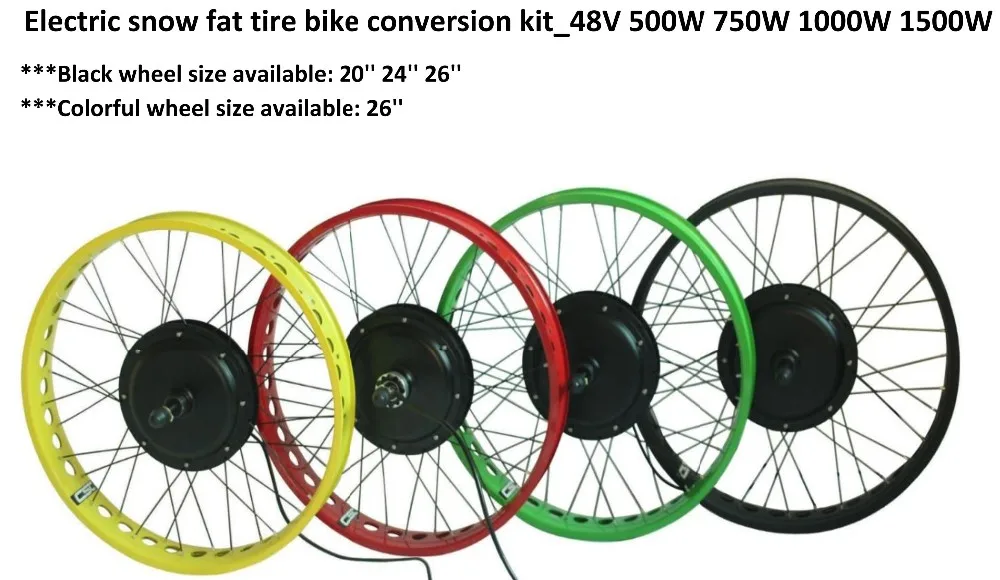

Wheel | size available 20"×4.0/24"×4.0/26"×4.0 | |

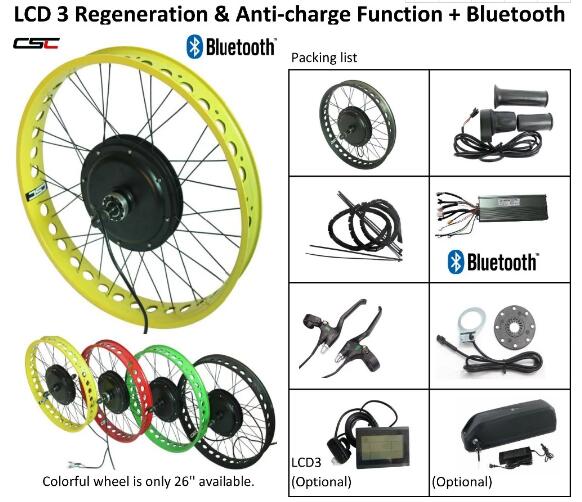

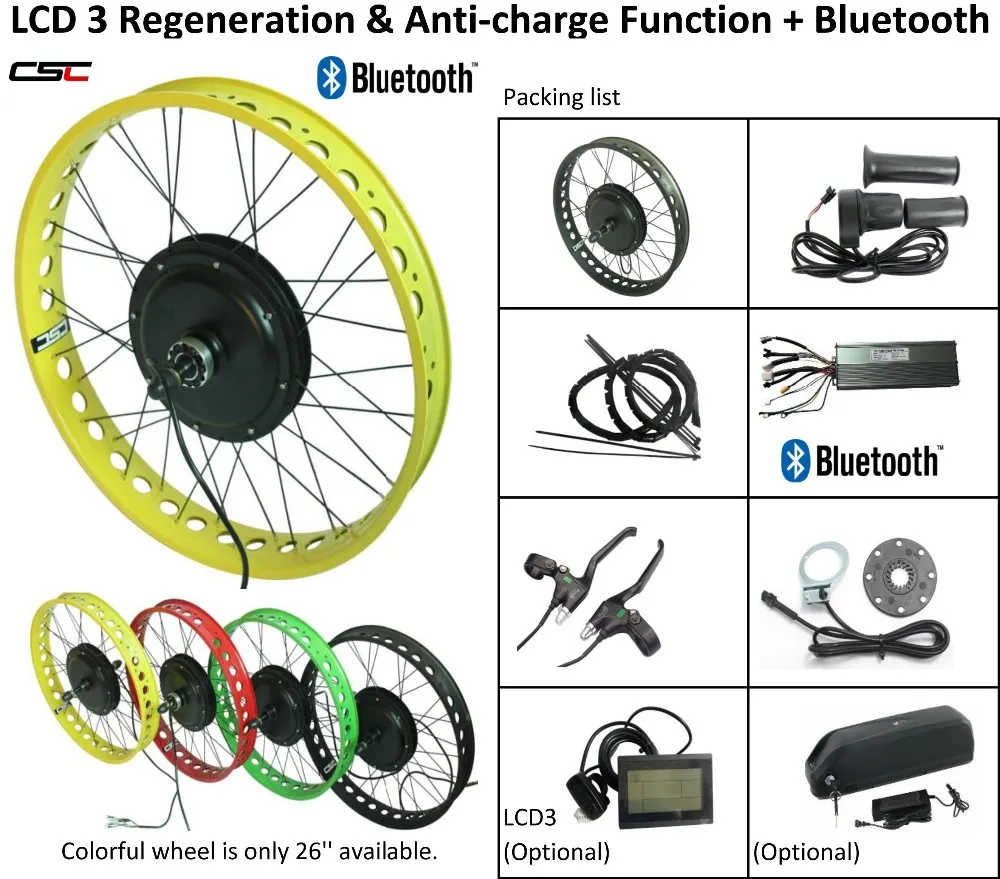

Wheel color | Black available: 20'' 24'' 26'' Colorful wheels available: only 26'' | Pls confirm it before order |
Speed | 45-55km/h | |
Dropout | 135mm (Front) / 170mm-190mm (Rear) | Pls confirm it before order |
Controller | 48V 750W controller with controller bag | |

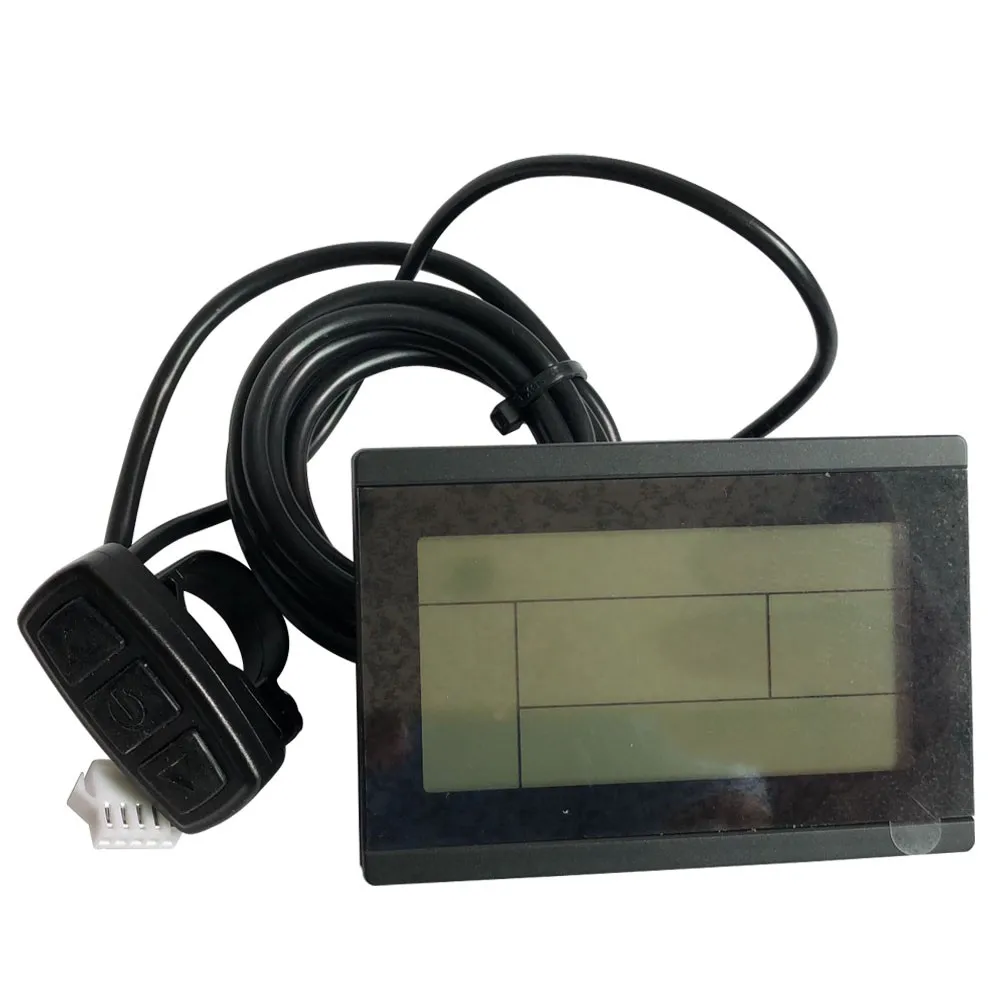

Display | KT LCD 3 included | LED/LCD 8 for your options |
Throttle | Half-Bar Twist Throttle or thumb throttle | |
Brake lever | Wuxing Black Aluminum Alloy Brake Levers | |
PAS | 8 Magnets Pedal Assistant Sensor | |
Battery | Not included | Optional |
CSC was established in 2009, which is a professional electric bike and carbon fiber bicycle manufacturer located in Fujian, China. All of our Ebike wheels and carbon wheels built by hand which is carefully crafted to provide you with the perfect balance between durability, stability and weight. These products are all in accordance with the EN standards.
Our primary products: Electric bike kit, Electric bike, Electric bike battery, Electric bike motor, Electric bike controller, Electric parts, Carbon bike wheels, carbon bike rim, and carbon parts, etc.
We strive to provide our customers with best quality products and first-class service. With more accessories and components available for online purchase, more efficient checkout systems, you'll find CSC has the power to win more markets and positive feedback. CSC support you in every mile! Meanwhile, all OEM and ODM Wheels and rims are welcome, we will try our best to make our electric bike and carbon wheels preferable for our customers worldwide.
1.Warranty: 1 year from the date of purchase under normal using.
2.We offer OEM &ODM service.
3.LCL available, MOQ is 1 PC.
4.100% full inspection before shipping.
5.Delivery fast and on time.
6.More than 8 years manufacturing experience, have professional R&D team.
7.24 hours online service and 24 hours on call.
1) Does your rear wheel support disc brake?
Yes, our motor wheel support standard 6-hole type disc brake. If you want to install hydraulic disc brake, we recommend you to put a 5mm washer between disc brake rotor and motor (to add distance between motor and rotor to put thicker caliper).
2) Why can't turn on power?
Please kindly check whether battery poles connect with controller is correct.
Please kindly check whether all connection correct and tight.
Please kindly check whether you connect electric lock plug and turn on throttle key.
Please kindly check whether you turn on LCD Display.
3) Why after I turn on power and turn throttle, motor doesn't work?
Please kindly check whether all power already turned on.
Please kindly check whether throttle connection is correct (Throttle is Red/Back/Blue wires).
Please kindly check PAS speed level on LCD, whether it is not 0 (0 will turn off PAS and throttle).
4) Why my speed display is not correct?
Please kindly check whether you have correct setting.
Correct wheel size setting: according to your wheel size.
Correct max speed setting: set it at max value 99.
Correct P1-P5 setting: P1=46,P2=0,P3=0,P4=0,P5=12 .
5) Why always cut off during riding?
Please kindly check whether your battery support enough discharge current (Battery has enough capacity and battery BMS board support max continuous discharge current at 40A).
Please check whether controller MOSFET is burned and short circuit.
6) How can I active cruise function?
If your controller connect LCD display, please don't plug the jumper on cruise connector:
SM-2Y Female Black Connector with Black/Blue wires.
Please set C7=1 from LCD, save and restart LCD.
With hold throttle and keep definite speed not change, press "Down" key of LCD display Button 3 seconds at same time, cruise function is activated.
Any other operation will cancel cruise function.
How to disable cruise function?
To set C7=0 save and restart will disable cruise function again.
If your controller doesn't connect LCD display, please plug the jumper on cruise connector: SM-2Y Female Black Connector with Black/Blue wires.
When hold throttle and keep definite speed not change about 3 seconds, cruise function is activated.
Any other operation will cancel cruise function.
How to disable cruise function?
Please turn on power.
Please remove cruise plug (small black plug of Black/Blue wires).
Turn off power.
Turn on power again .
7) Why after turn on, LCD show "03_Info"
This is because of hall sensor abnormal, and most time is because hall sensor wires connection doesn't contact well, please kindly check the 5-wire hall sensor connector and also inside whether any pin bent doesn't contact well.If use quick release wire, please kindly check whether connector plugged very tight. If every connection is ok, then the most possible reason is hall sensor burned.
(Very important: during installation, if need to remove the white hall sensor plug, please don't let hall sensor connector terminal touch phase connector terminal, otherwise hall sensor is very easy to be burned)
8) LCD C4 setting
C4=0: PAS 0 level will turn off both PAS and Throttle, PAS 1-5 speed level only valid for PAS but not for Throttle
C4=3: PAS 0 level will turn off only PAS, Throttle still work, PAS 1-5 speed level only valid for PAS but not for Throttle
C4=4: PAS 0 level will turn off both PAS and Throttle, PAS 1-5 speed level is valid for both PAS and Throttle
9) How to activate Regenerative Function?
Set C13=1 from LCD, save and restart LCD. During braking, battery will be charged back.
10) Which battery shall choose?
You can choose 36V/48V Battery (full charged voltage shall be maximal 43.8/58.4V), Battery capacity best should be more than 15AH, battery and battery BMS board must support max continuous discharge current at 40A, otherwise battery will always cut off!
