CSC Free Shipping to Russia Japan 36V 500W Electric bike kit Ebike kit Hub Motor Drive Front Rear Wheel Motor ebike conversion

  • Factory price： There is no set price, you can ask the supplier to get a product quote
    Initial batch size：
     123412 ¥310
  • Delivery merchant：Shanghai CSC Sports Co., Ltd.
    • Part： Wheel Place of Origin： Jiangsu, China (Mainland)
    Brand Name： CSC Display： KT LCD 8 Display
    Motor： 36V 500W Brushless Geared Hub Motor Controller： 36V 500W Controller
    Wheel size： 20",24",26", 27.5", Rear wheel bottom bracket： 135mm-142mm
    Front wheel bottom bracket： 100mm
  • Purchase type：
  • Offers：

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies，While supplies last。

  • Net content：5000g
  • Specifications：
  • Delivery to：

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity：
    Inventory0pieces
Product Description

To avoid the high import duty for EURO customers, we suggest you to ship by DPD.
If need, pls click below image to get the DPD shipping.

If you need the battery to fit the kit, pls click below image to take it.

Available batteries: bottle battery, hailong battery, tiger shark battery, triangle battery with bag, triangle battery with PVC case, rear rack battery, etc.
Item No
Description
Remark
Model
2029EBCK36V500W
Motor
1. 36V 500W Brushless geared motor
2. V Brake/ Disc brake available
3. Efficiency>80%
4. Load≤120KG
Rim
Double-wall Aluminum alloy rim
Wheel
size available 20" 24" 26" 27.5" 700C 29" 28"
Pls confirm before order
Speed
20-35km/h
Dropout
100mm (Front) / 135mm-142mm (Rear)
Pls confirm before order
Controller
36V 500W 6mosfet controller
Display
KT LCD 8 Display
LED/LCD3/LCD 8 for Options
Throttle
Half-Bar Twist Throttle
thumb throttle also available
Brake lever
Wuxing Black Aluminum Alloy Brake Levers
PAS
8 Magnets Pedal Assistant Sensor
Freewheel
7 speed freewheel included
Disc brake
160mm disc brake included
Tyre
Kenda tyre not included. If need, pls let me know.
Battery
Not included
Optional

Different rim size & suitable tyre table for buyers reference

Detailed Images

Related Products

For 36V 500W electric bike kits, we offer different versions for your options.
More information, pls click below product link or images.

2. 36V 500W ebike kit_KT LCD 3 + bluetooth
4. 36V 500W ebike kit_KT LCD 8+bluetooth version

***Remarks***
1. For below images, L means the left side, R means the right side.
2. The 7 speed freewheel is only suitable for rear wheel.

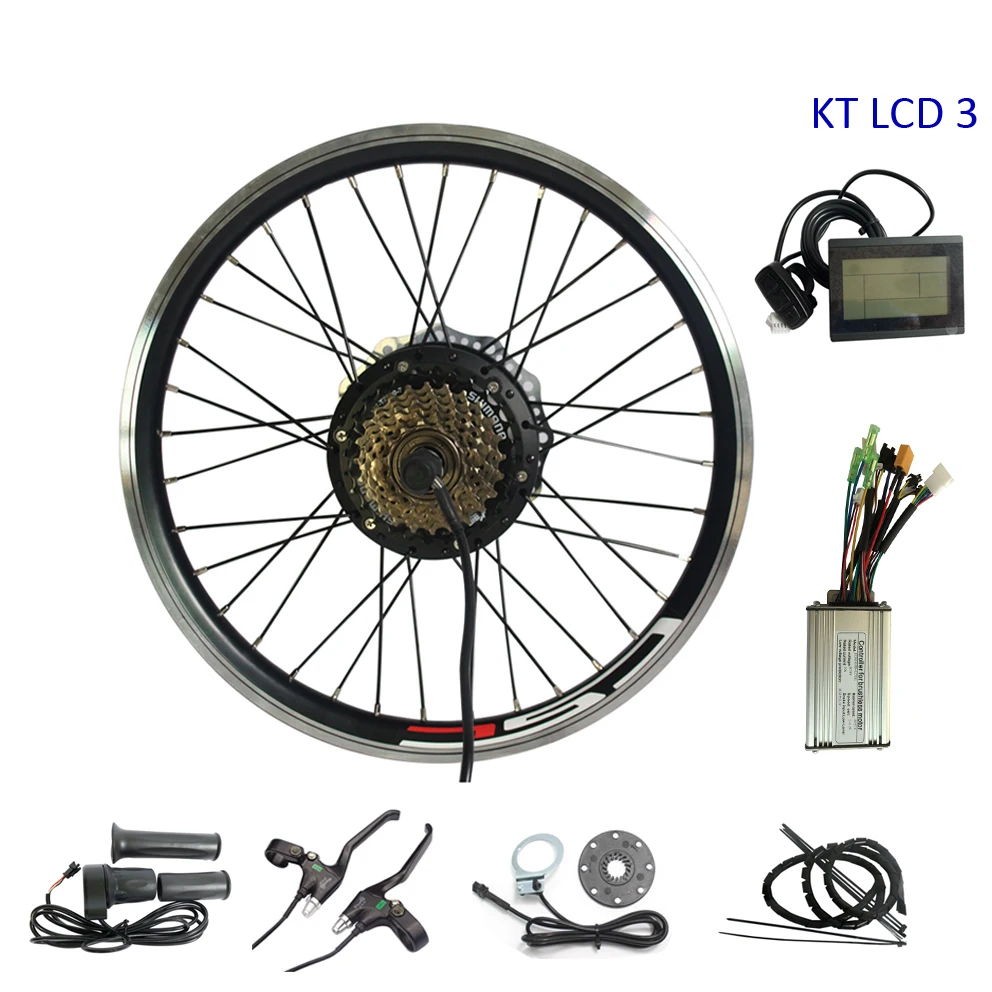

1. 36v 500w kit KT LCD 3 display, pic as below

2. 36V 500W kit KT LCD 3 display+ bluetooth version, pic as below

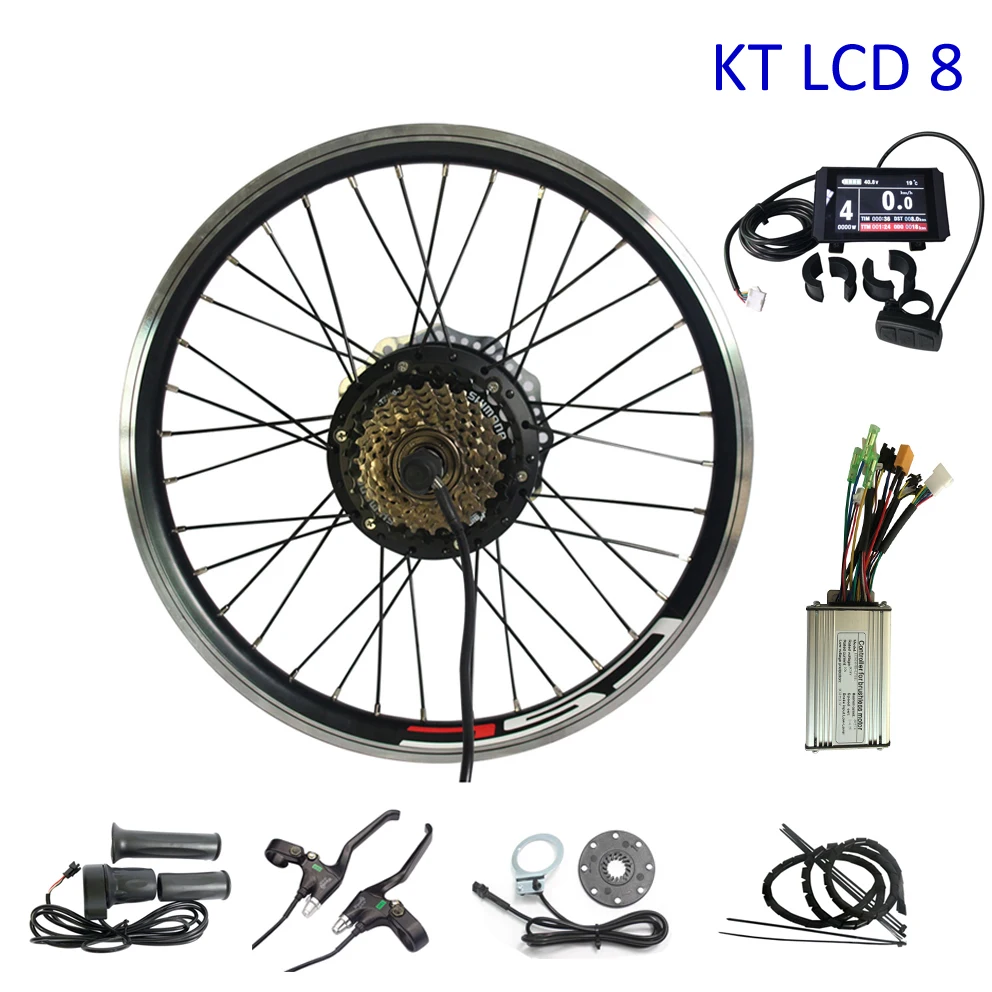

3. 36V 500W ebike kit_KT LCD 8 display version, pic as below

4. 36V 500W kit KT LCD 8 display+bluetooth, pic as below

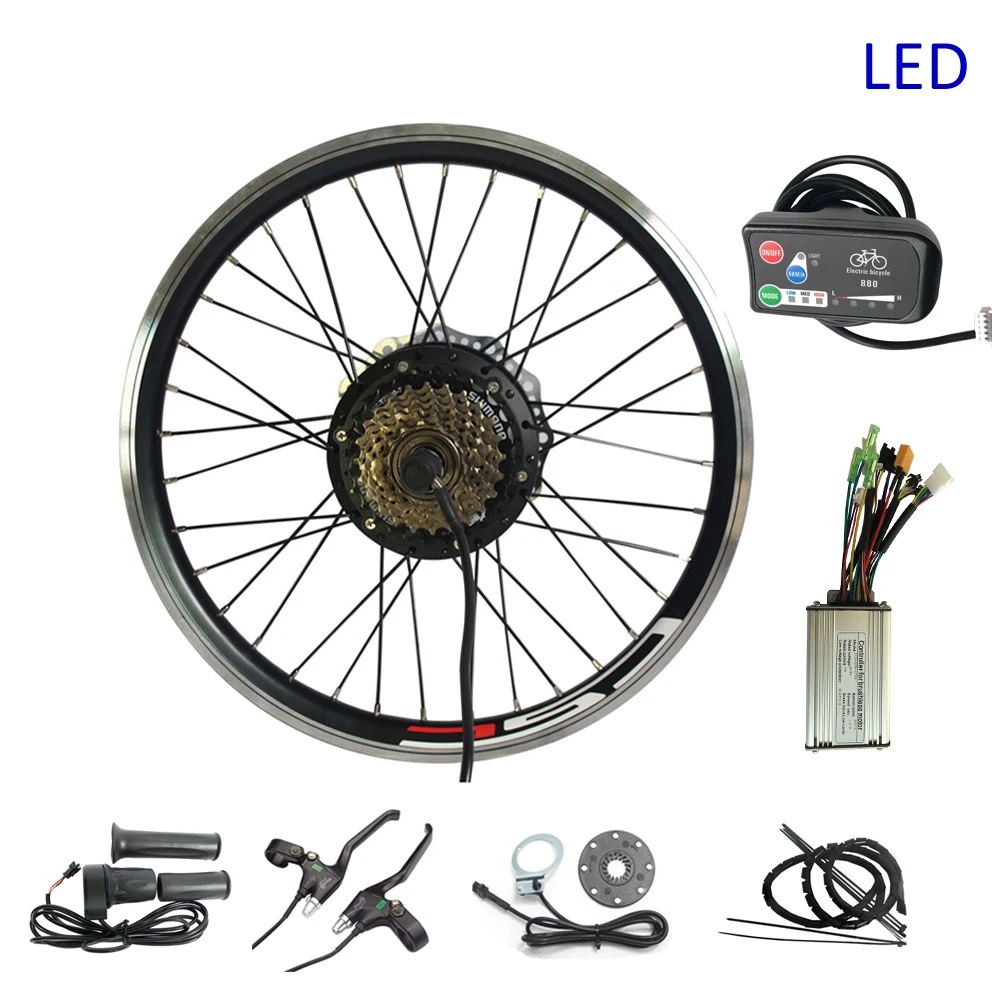

5. 36V 500W kit_KT LED display, pic as below

6. 36V 500W kit_without display, pic as below
