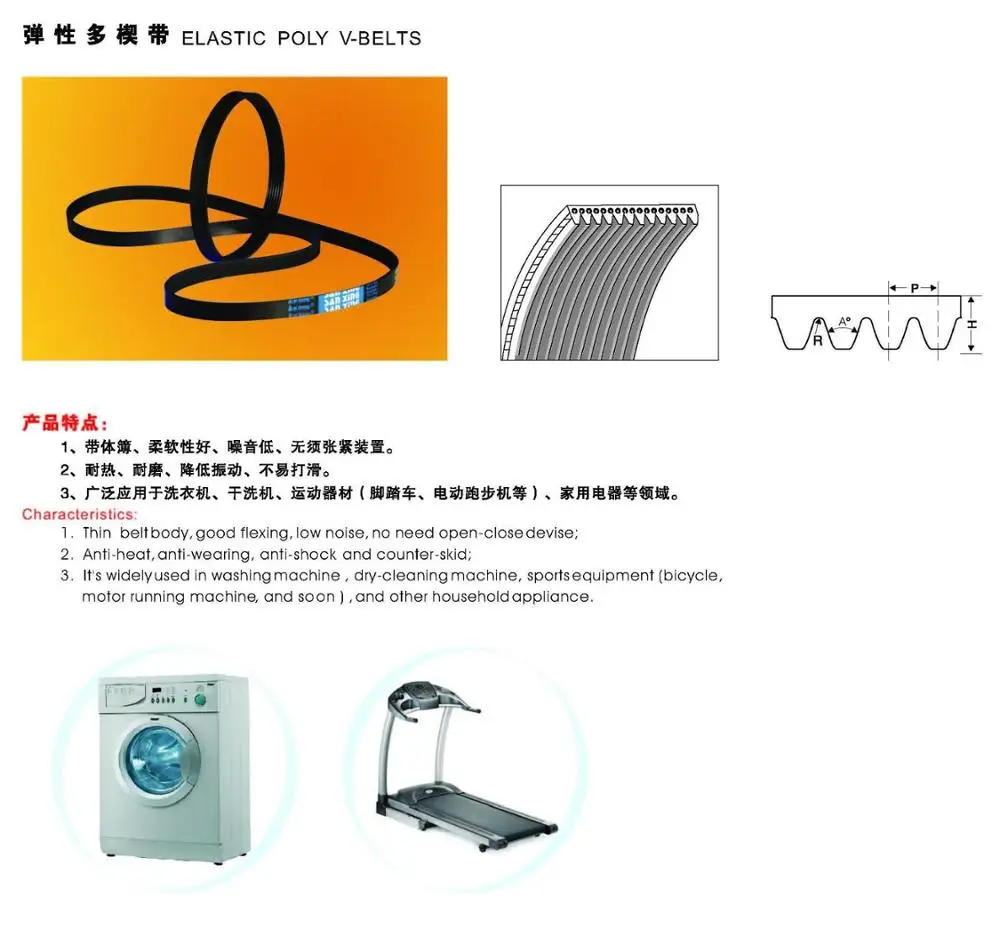

profile | PH | PJ |
Pitch | 1.6 | 2.34 |
Teeth height | 1.25 | 1.6 |
r | ≤0.15 | ≤0.2 |
Belt thickness | 2.6 | 3.0 |
Angle | 40° | 40° |
| Special designed for roller diameter :50mm, Pulley Diameter: 43mm | ||
| PJ type | ||
| Central Distance | ||
| 2.165 inch | 55 | PJ246 |
| 2.362 inch | 60 | PJ256 |
| 2.637 inch | 67 | PJ270 |
| 2.874 inch | 73 | PJ282 |
| 3.000 inch | 75 | PJ286 |
| 3.071 inch | 78 | PJ288 |
| 3.149 inch | 80 | PJ290 |
| 3.267 inch | 83 | PJ302 |
| 3.543 inch | 90 | PJ314 |
| 3.700 inch | 94 | PJ316 |
| 4.000 inch | 100 | PJ336 |
| 4.133 inch | 105 | PJ346 |
| 4.330 inch | 110 | PJ348 |
| 4.724 inch | 120 | PJ376 |
| 5.236 inch | 133 | PJ416 |
| 5.905 inch | 150 | PJ435 |
| 6.300 inch | 160 | PJ456 |
| 6.889 inch | 175 | PJ486 |
| 7.874 inch | 200 | PJ536 |
| 8.543 inch | 217 | PJ570 |
| -0.04/+0.12 | -1/+3 mm | tolerance |

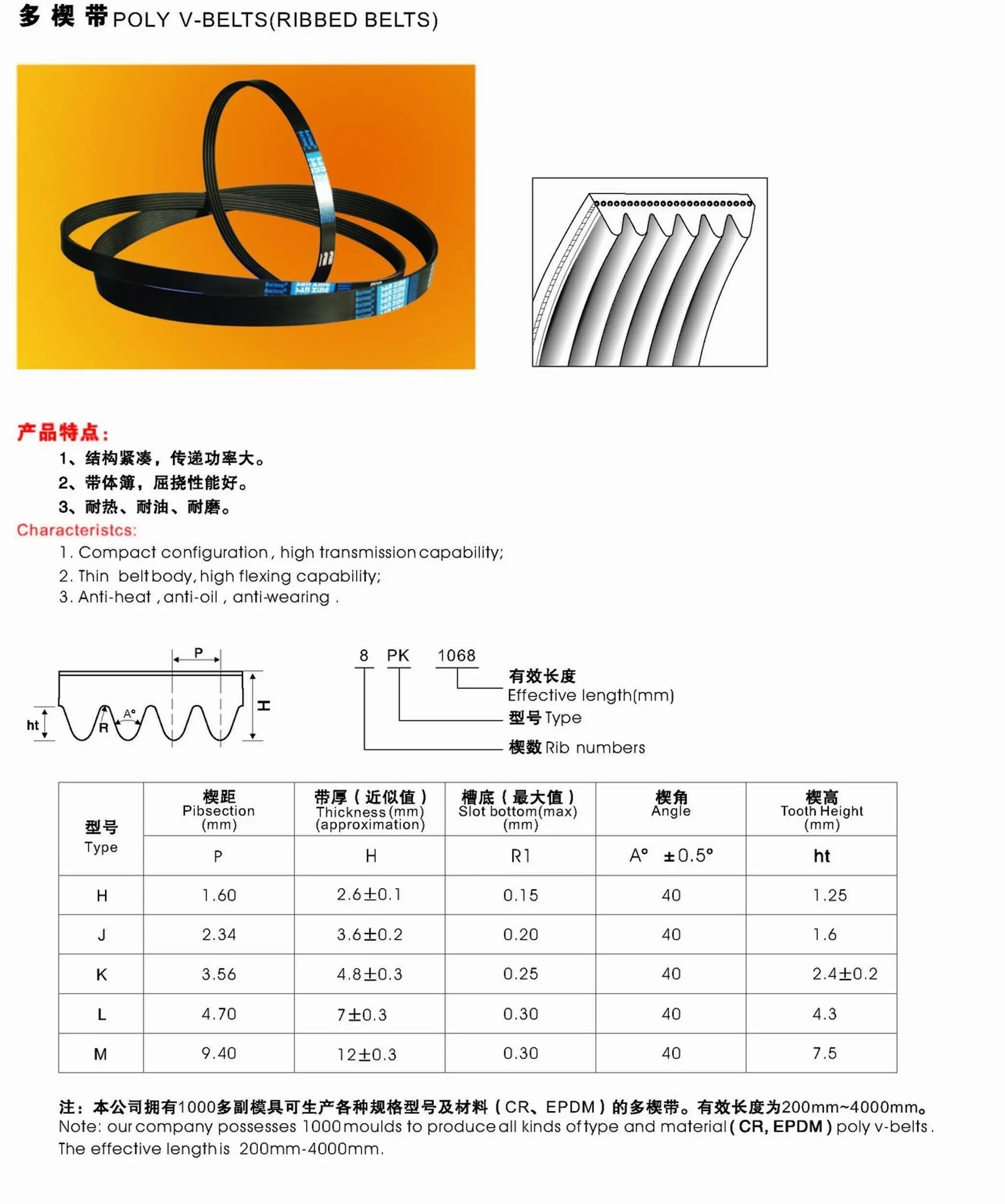

profile | PH | PJ | PK | PL | PM |
Pitch | 1.6 | 2.34 | 3.56 | 4.7 | 9.4 |
Teeth height | 1.25 | 1.6 | 2.4 | 4.3 | 7.5 |
r | ≤0.15 | ≤0.2 | ≤0.25 | ≤0.4 | ≤0.75 |
Belt thickness | 2.6 | 3.0 | 4.8 | 7 | 12 |
Angle | 40° | 40° | 40° | 40° | 40° |
1. Q: What is your main customer?
A: Damon, Qinde, Hong'an, etc.
2. Q: What is the max. weight of each box can be transmitted?
A: Different weight use different width of belt. Usually 2PJ for less than 50 kgs, 3PJ for box less than 80kgs, 4PJ for box less than 120kgs.
3. Q: What is the delivery?
A: We usually have small quantity of stock. Some special items or Non-standard items no ready stock.
For quantity of 5000 pcs each item, we can ship out within 10 -15 days after receive payment.
4. Q: What is the payment term?
A: For small amount less than USD10000.00, we require 100% before shipment. For order amount more than USD 10000.00, and need more than 15 days for production, payment will be 30% deposit, balance before shipment.
5. Q: What is the guarantee ?
A: We guarantee for one year with correct installation.
6. Q: Which size of belt do you have?

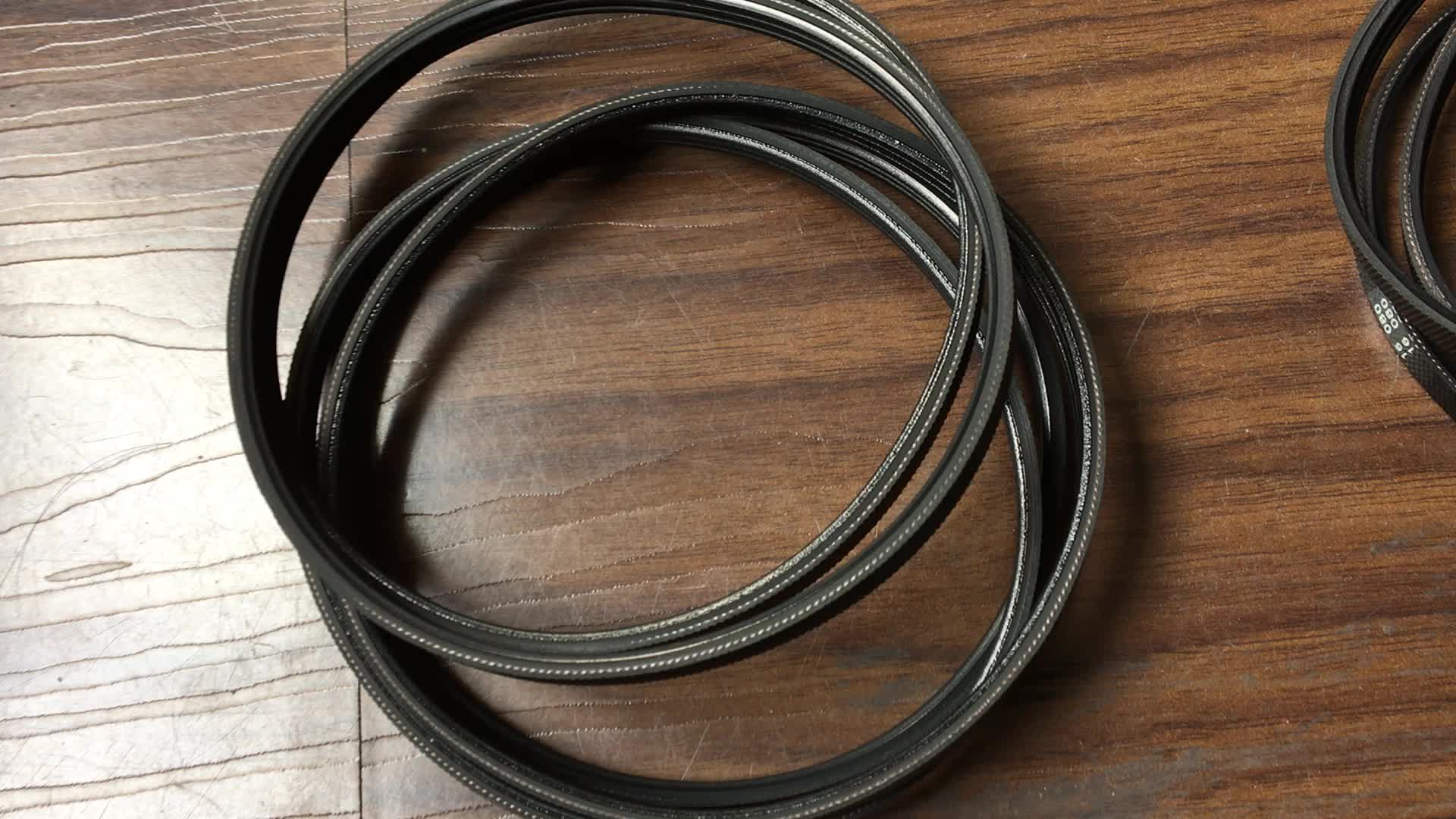

A: We have complete range of elastic PJ belt for roller conveyor.
We can also make belt according to your design , you just need to tell us the central distance and the roller diameter and pulley diameter, box weight .
