mould list

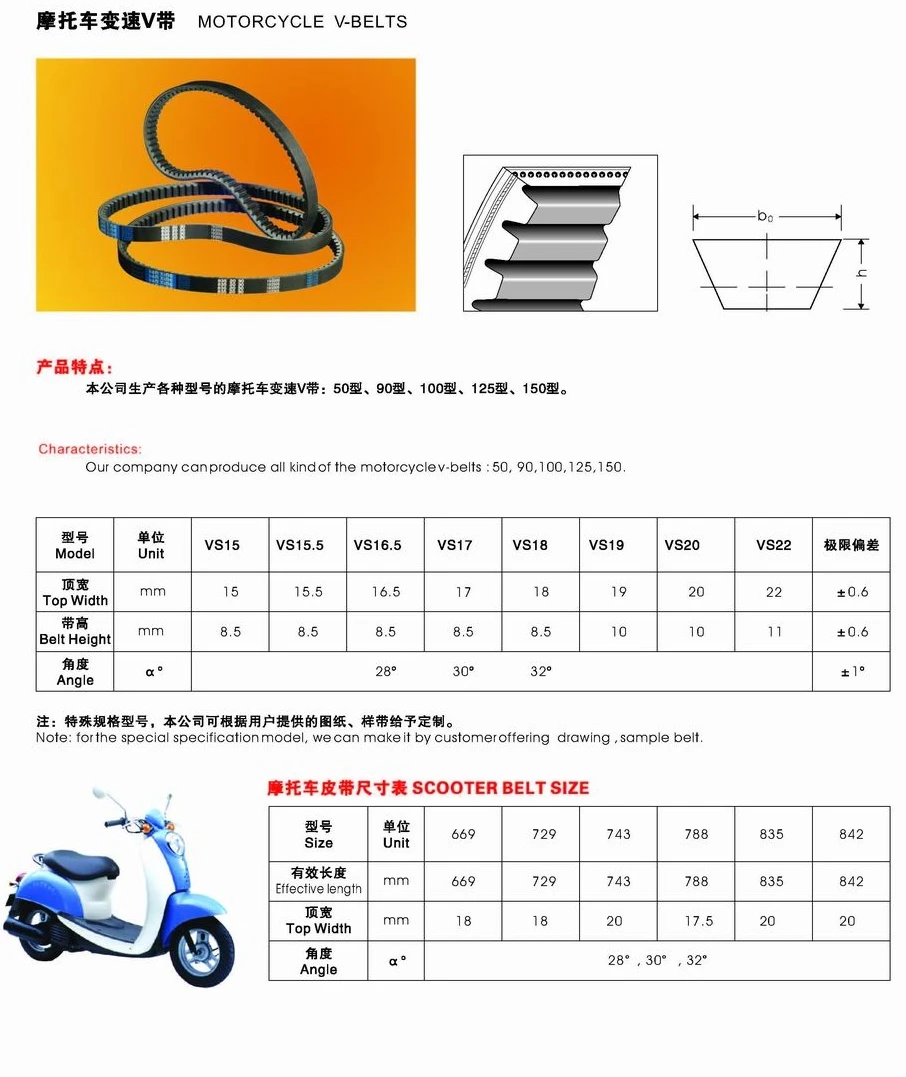

| SCOOTER & ATV BELT MOULD LIST | |||||||
| mm | |||||||
| ITEM | MODEL | Inside length +- 6 mm | Outside length (app.) +- 6mm | Effective length +-6mm | Thickness (mm) +-0.6 | Top width (mm) +-0.6 | |
| 1 | VS669 | 626.7 | 680 | 669 | 8.5 | 18 | |
| 2 | VS729 | 688 | 741 | 729 | 8.5 | 18 | |
| 3 | VS739 | 694 | 751 | 739 | 9 | ||
| 4 | VS743 | 700 | 760 | 743 | 9.5 | 20 | |
| 5 | VS755 | 709 | 767 | 755 | 9.2 | ||
| 6 | VS788 | 746.8 | 800 | 788 | 8.5 | 18 | |
| 7 | VS829 | 781.6 | 841 | 829 | 9.5 | ||
| 8 | VS835 | 789 | 848.8 | 835 | 9.5 | 20 | |
| 9 | VS842 | 800 | 859.5 | 842 | 9.5 | ||
| 10 | VS642La | 590 | 642 | 630 | 8.3 | ||
| 11 | VS650La | 598 | 650 | 638 | 8.3 | ||
| 12 | VS664La | 612 | 664 | 652 | 8.3 | ||
| 13 | VS668La | 616 | 668 | 656 | 8.3 | ||
| 14 | VS705La | 653.5 | 705 | 693 | 8.2 | ||
| 15 | VS729La | 677 | 729 | 717 | 8.3 | ||
| 16 | VS790La | 738 | 790 | 778 | 8.3 | ||
| 17 | VS802La | 750.5 | 802 | 790 | 8.2 | ||
| 18 | VS823La | 759 | 823 | 810 | 10 | ||
| The thinkness and width can be adjustable. If thickness is different, then the ouside | |||||||
| length is also changed. I can not make out all the items, as the change is so much. | |||||||
| Above items for your reference. Price will be calculated on the length, width, thickness. | |||||||
| If you have ready list, pls send me. I will check all your information, and find out the | |||||||
| inside length, then to check with our mould list. Because the mould is fixed, no change. | |||||||
| But belt length can be changed acoording to the thickness. Thickness is up to the width. | |||||||
Production lead time: 30-45 days
Payment term: 30% deposit, balance before shipment
Guarantee:
10000km
