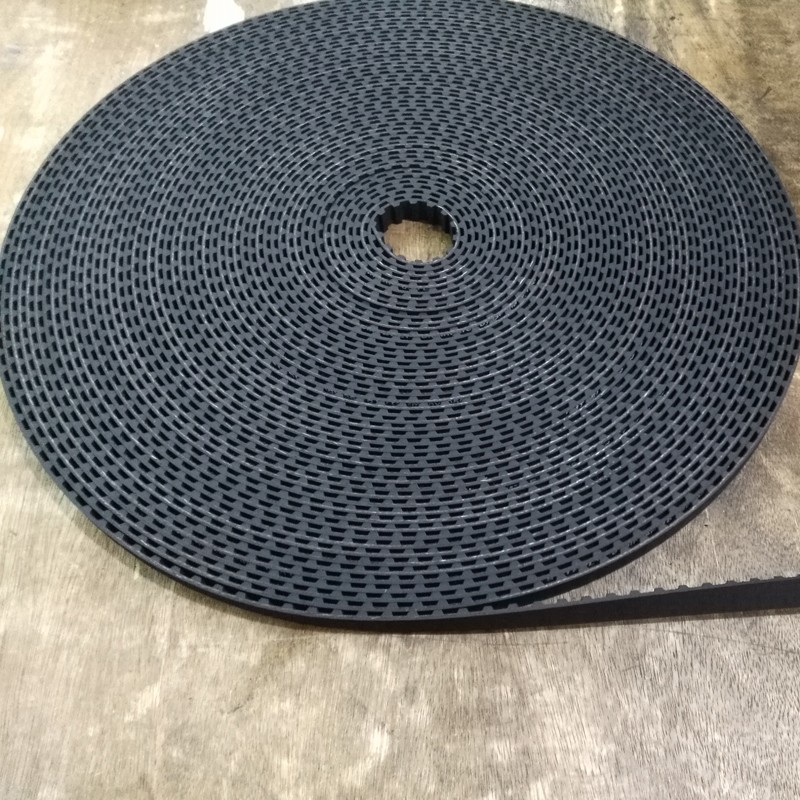

L Type Open ended Timing Belt Made in China

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Ningbo Ciguang Synchronous Belt Co., Ltd.
  • Standard or Nonstandard: Standard Type: Timing Belt
    Material: Rubber, CR, Fiber glass,Nylon Place of Origin: Zhejiang, China (Mainland)
    Brand Name: Ciguang Model Number: L
    Width: 050(can be other width as customer required) Color: Black
    Hardness: 75±5 Tensile Strength: ≥120 N/MM
    PACKING: Export Carton quality: ISO9001:2000
    OEM: offered
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces
Product Description
Product Name
Open ended Timing Belt L050
Material
Neoprene, Fiber Glass, Nylon
Color
Black
Tensile Strength
≥120N/mm
Hardness
75±5
Adhesion strength of doth
≥6.5N/mm
Adhesion strength of dcore
≥300N/mm
Sear shearing intensity
≥60N/mm

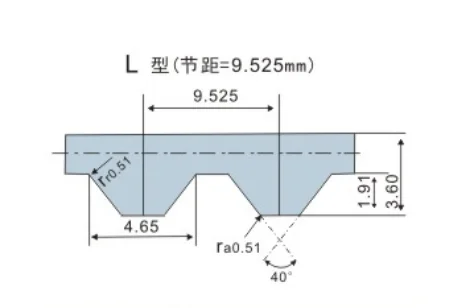

Products Show
Name
Open Ended Timing Belt L050
Width
0.5 inch
Pitch
9.525mm
Tooth height
1.91mm
Belt thickness
3.6mm
Angle
40
Our Related Products

Round Timing Belt

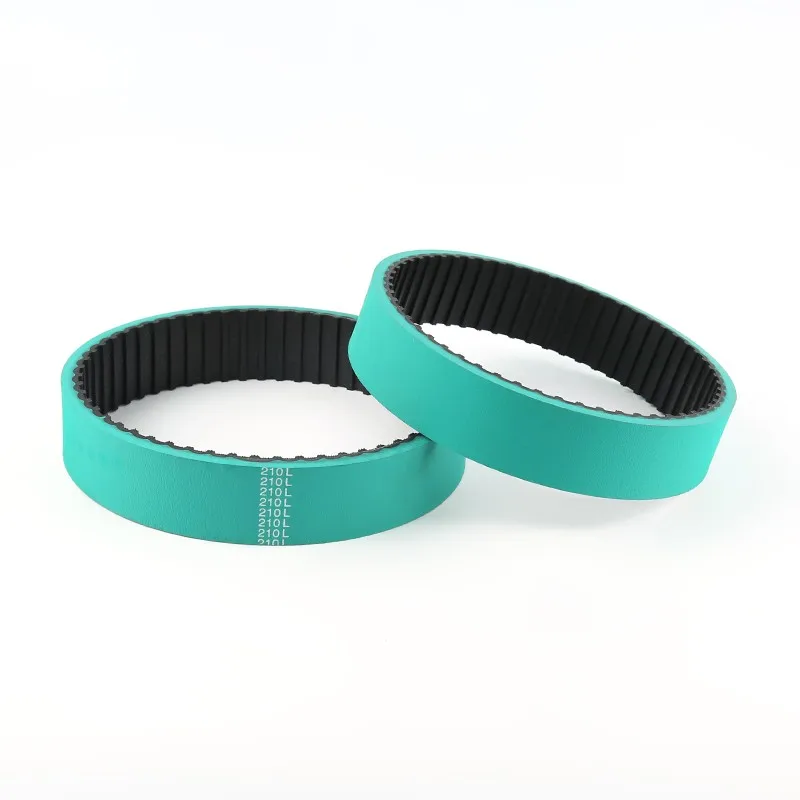

Coated Timing Belt


Double Side Teeth Timing Belt


Our Service

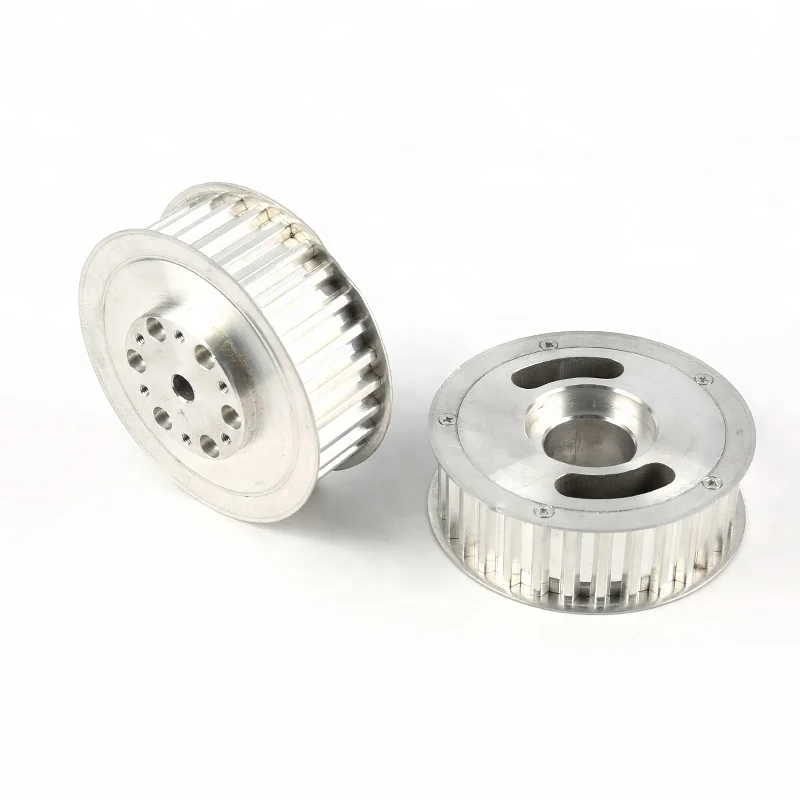

We Make All Kinds of Timing Pulleys!

We are professional manufacturer in the field of timing belts and pulleys for about 20 years.
If you need matched pulley, pls feel free to contact me too.
We can make all kinds of pulley as your required.

Our Company
Packing & Delivery

Packing Details  : Export Carton

Delivery Details : 3-30 days after order

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
