| Model No.: | C05H4 | Working Voltage: | 9v-16V |
| Product Type: | code readers / ELM 327/ OBD 2 | Working Current: | 45mA |
| Hardware Version: | V1.5 | Standby Current: | 25mA |
| Communication Mode: | Bluetooth 4.0 | Packing: | Colorful box |
| Chip: | PICI8F25K8 | Material: | Plastic |

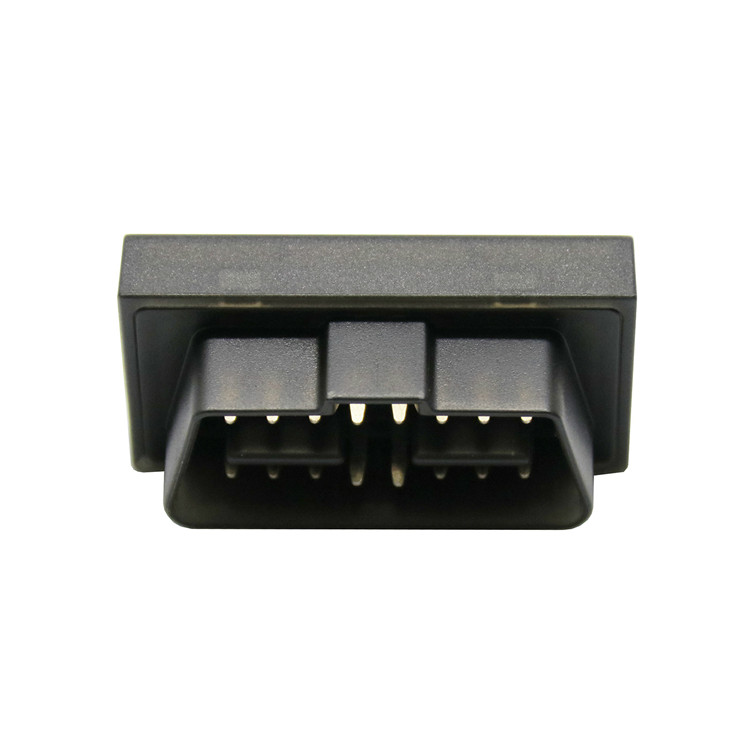

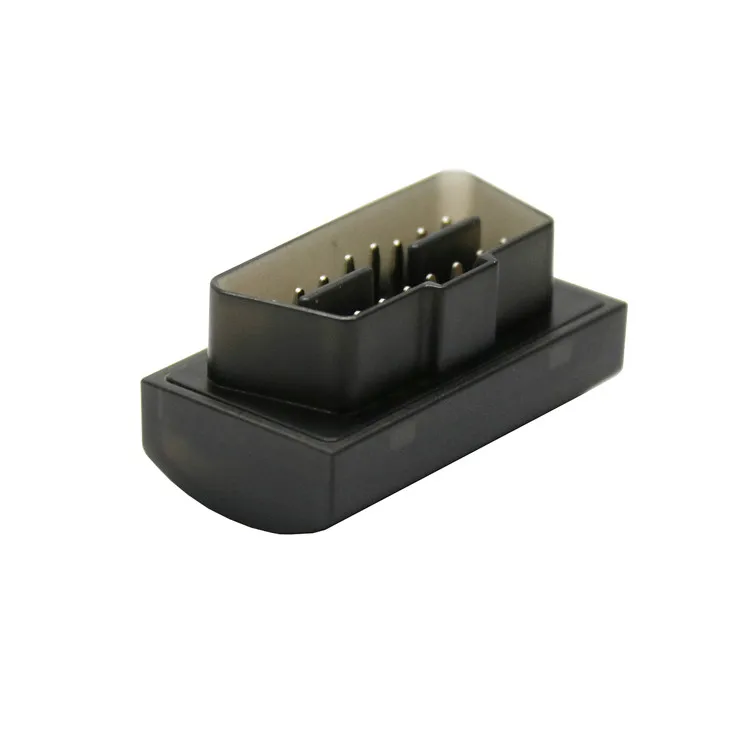

| Software platform: | support Android / Windows / iOS | Connector: | OBDII 16-pin standard plug |
| Color: | Black | Working Tempreture: | -40℃-85℃ |
| Size: | 43mm x25mmx 30mm | Operating humidity: | <60% |
Bluetooth Elm327 is a versatile, all-round automotive high-tech electronic products, monitoring vehicle data, so that the
driver can be more humane to use their own car. But also a very powerful fault detection, fault was found as soon as
possible to enable timely make the appropriate treatment to protect the interests of owners.
1) Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
2)Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...
3.Bluetooth ELM327 Description
Customer can dowload software for Smartphone(Android, Symbian), PC(Windows XP, Windows 7 and Windows 8) from our website: www.elm327.com
OBD-II Software for ELM327 Bluetooth is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.
3) Compatible software:
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Torque, OBD Car Doctor, DashCommand, EOBD;
Symbian version: OBDScope.
Support System:
Windows XP, Windows 7/8, Android, Symbian.
4) Item Includes:
1 * OBDII ELM 327
5) Other Bluetooth OBD2
1.what is the shipment way?
·Express company like DHL,TNT,UPS,Fedex,EMS (Door to Door service),by air company;
·By sea (LCL or whole container shipment), you can choose the one you prefer!
2.if the price include duty?
·Usually the price we quote without the duty in your country, as different country duty rate different, but to some countries, we will send by a special line which can with duty (e.g. European special line), please contact with us if you want to need more.
·100% QC inspection Before Shippment, we will provide the photos or video of the whole process of produce, package till sending.
·We have After-sales service, please contact us if there is any questions about the order, we will relpy you in 12 hours due to time zone.
·Shenzhen Clover Technology Co., Ltd. was established in 2008, over 11 years of experiences in manufacturing and exporting various Auto electronic products, and principally involved in areas of On-Board Diagnostics tools.
·We have a number of independent intellectual property rights, and a number of design patents and utility model patents in product design and production. We are also one of the industry's leading automotive electronics manufacturers specialized in R&D, design, production and sales. Over 2, 000 square meters of whole clean room, more than 6 automatic SMT equipments, with strong production capacity, and through ISO9001: 2008 quality management system certification,providing customers OEM and ODM services according to customer's different requirement.
·We manufacture and export auto products from China to various overseas markets and we also cooperate with satisfied buyers in US, Europe, South Africa, Southeast Asia and the Middle East. We have implemented a comprehensive quality control system. Relying on advanced instruments, perfect quality control system, highly experienced management staff and senior engineering personnel, we are able to satisfy customers' changing demands effectively.
·We adhere to the tenet of "Customer First", with the idea of "Quality, Honesty, and Innovation". Please feel free to contact us for further information.
1.Can we get a lower price? Any Discount?
·Yes, price is not a problem, everything could be negotiated based on the quantity.
2.What is your MOQ?
·No MOQ for any sample test.
3.OEM/ODM Service is available?
·Yes, LCB have strong ability to offer customers ODM&OEM products of highest quality,but it will require the MOQ.
4.For Trade Terms, such as payment and leadtime.
·Payment Terms: We mainly support T/T bank transfer,Paypal ,Western Union Or pay online on alibaba.
·Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
·Leadtime: Sample order 4 working days; Bulk order 10-25 working days(after your payment)
5.How about the Warranty?
·There are 12 month warranty.
·While the warranty is not responsible for those broken by violence or updated with other
brands.
