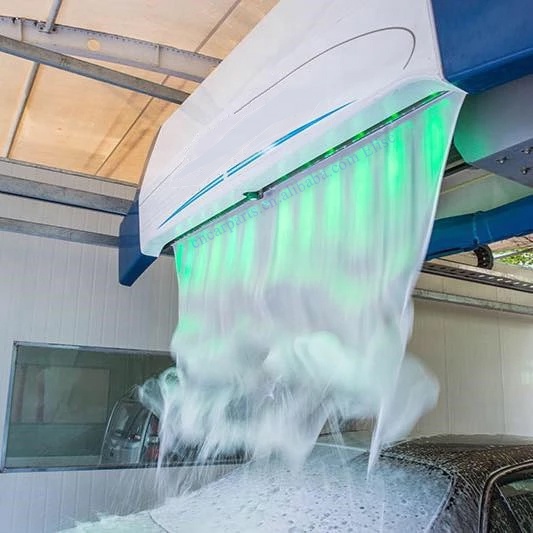

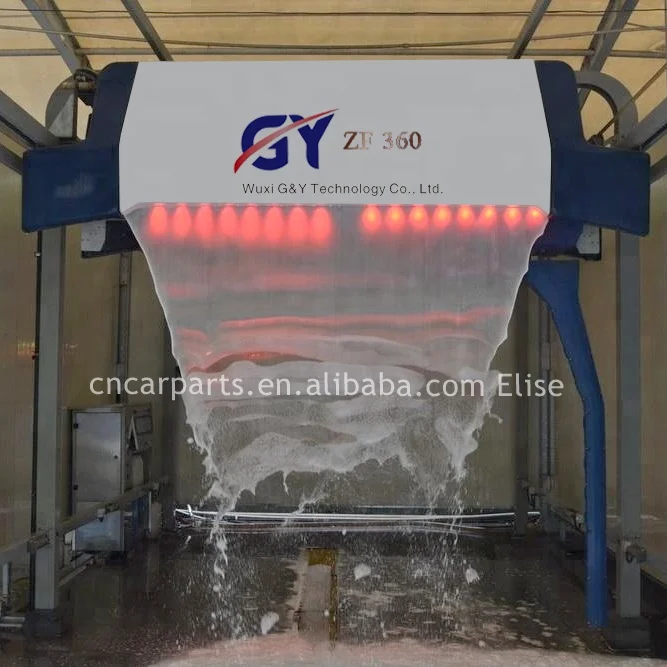

Fully-automatic Touchless Car Wash Machine

Model: G&Y HP-360

Brand:  Wuxi G&Y Technology Co., Ltd.

Touch Free Car Wash Main Functions: fully-automatic operation, start-high pressure chassis and sides washing-high pressre rinse-three color foam spray-shampoo spray-wax rain-automatic built-in dryers-finish. Wheel washing brushes and LED lighting foam optional.

Fast Washing Process:start-chassis and wheel washing-three color spray-high pressure rinse-drying-end

Customized Mode: customers can add or move any single step on touch screen. Customers can set different wash packages on touch screen.

Fully-automatic Touchless Car Wash Model G&Y ZF360 Advantages

1. Intelligent fully-automatic operating systems, 24 hours self-service card reader payment system.

2. Smart 360 technology for fast cleaning every corner of vehicles

3. Intelligent liquid proportioning system for spraying 3colors foam at same time, shampoo, wax rain on every corner of vehicles.

4. Innovative suspension system without resistance rails.

5. Unique embedded fast drying system.

6. Digital voice security alarm system.

7. Faulty self-checking system.

8. Automatic collision avoidance technology.

9. One key anti-frozen system.

10. E-Chain Utility Routing.

11. Staple Open Wash Bay – without overhead design, no floor steel for customers load car easily.

Fully-automatic Touch Free Car Wash Model G&Y ZF360 Functions

1. 100Bar-1430PSI high pressure chassis and car body washing. Factory can produce more pressure water pump according to customers' requirements.

2. Smart 360 L type arm, Flush car body 360°and spray various washing liquids.

3. High precision proportioning technology: Only 20~50ml washing liquids consumption for washing one car .

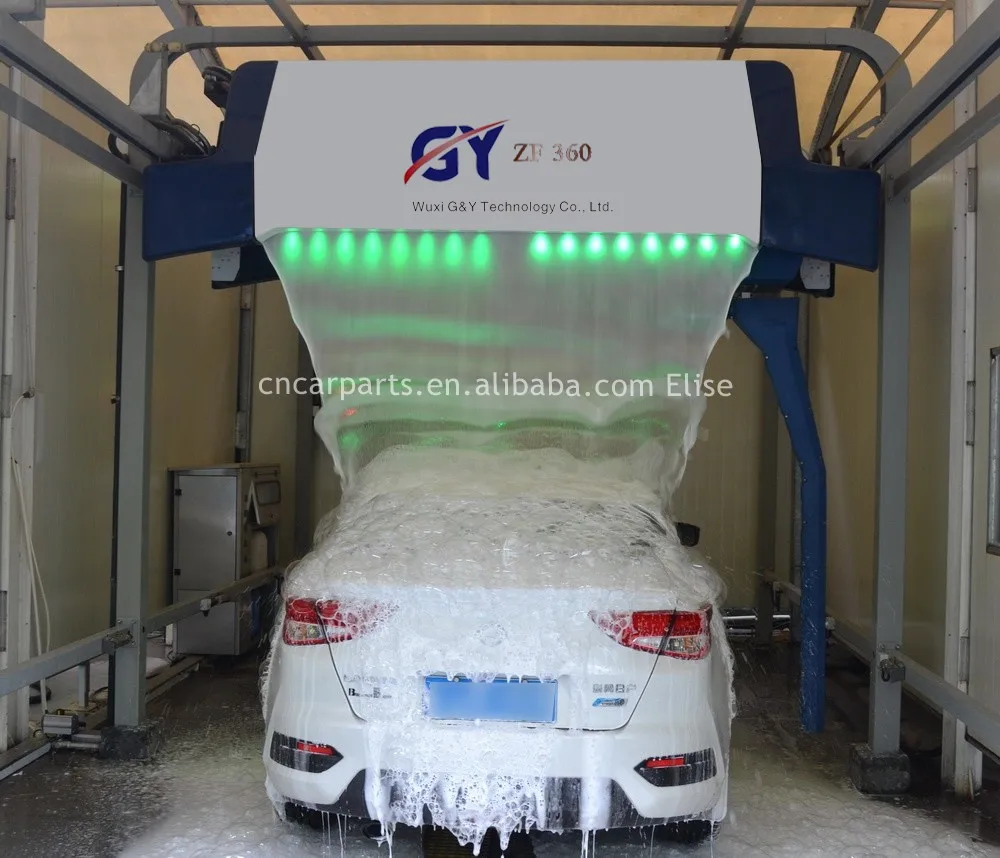

4. Thick foam cleans dirt thoroughly; it makes the car painting much brighter.

5. Soft water with crystal wax coating: Crystal wax coating can be generated on the paint surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.

6. G&Y ZF360 4pieces 5.5kw motors embedded in the washing machine controlling the airflow by four cylindrical outlets.

7. 28 seconds per circle for L arm rotation, saving 50% water and 60% power cost.

G&Y ZF360 Touchless Car Wash Main Features

The newest G&Y ZF360 in-bay automatic car wash raises the standard for touchless car wash equipment. With Revenue Enhancement and Total Cost of Ownership improvements being the main focus, this vehicle wash system delivers the industry's best Return on Investment. Smart 360 Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to "think for itself", increasing up-time and optimizing the wash process.

Substantially faster wash speeds lead to increases in vehicle throughput and shorter lines that will make your customers happy. Simplified machine design and lower energy and utility usages reduce operating costs leading to a more profitable car wash operation.

Key Features

Staple Open Wash Bay - overhead design with no floor steel

Built-in flash dryer with high efficiency

Virtual Treadle bay loading

Smart 360 Technology

Slip-Free Belt Drive

More Services – 3colors foams, shampoo, wax or customized liquids

Internal Bridge Rollers

E-Chain Utility Routing

Built-in Web Interface for Updating, Reporting & Monitoring

New Technology

Fully-automatic Computer Control Mode: G&Y ZF360 is equipped with advanced intelligent detection system: Built-in central processing unit. Without operator, this system washes cars automatically according to the selected wash packages. The system reminds customers automatically to leave the wash bay after finishing washing and guide the next customer to the wash bay. The whole wash process is controlled by computer to save labor cost and improve work efficiency.

Self-service Mode: Automatic Card Reader System makes 24hours self-service car wash possible. Customers can choose different single item and adjust the price of each item.

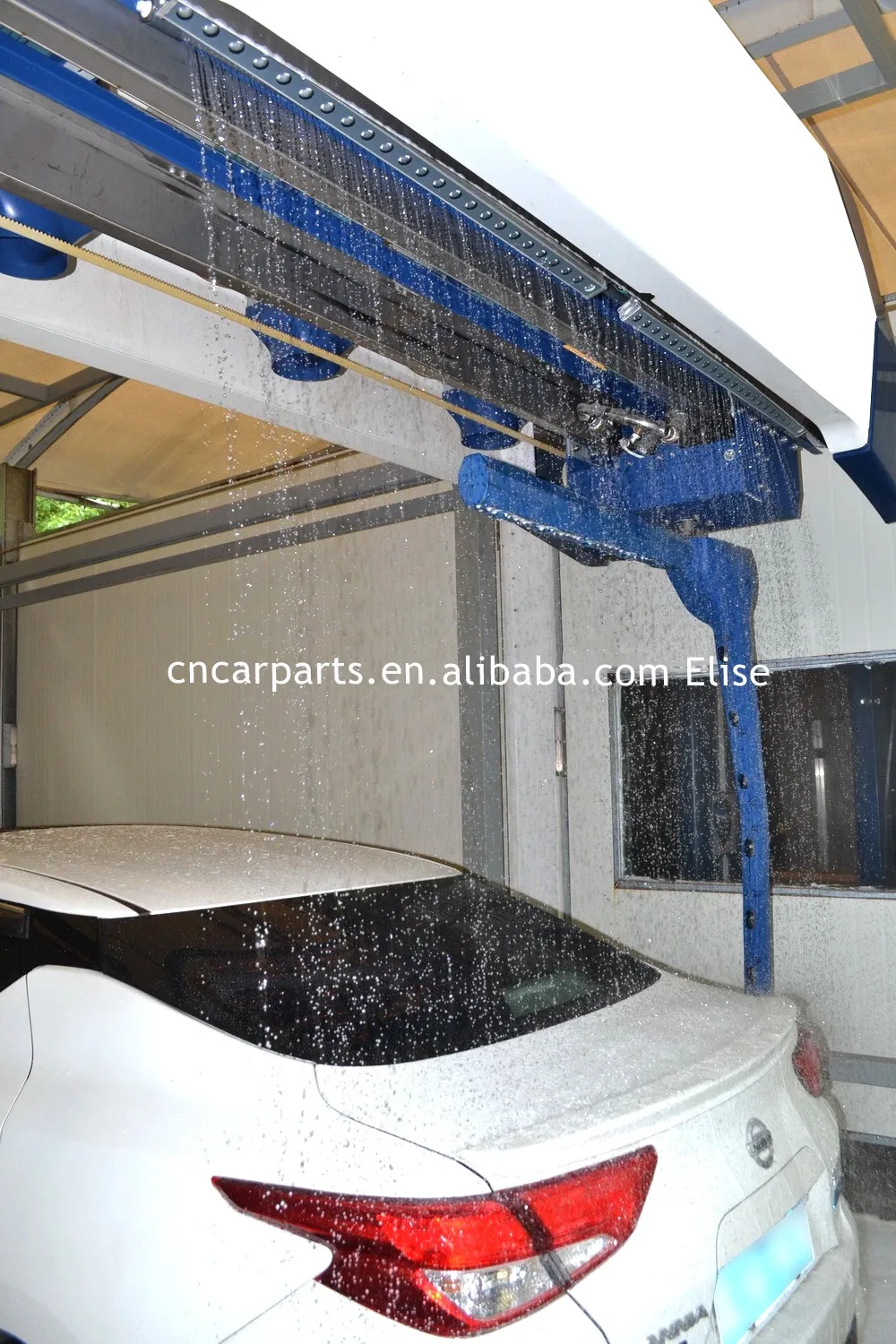

Spray Arm Materials: 304 stainless steel arm and good quality soft rubber cover without scratching car paint, L arm standard cover color is Blue.

The spray arm can adjust the washing distance automatically according to the size of car.

When vehicles enter the wash bay, LED sign and Voice System will guide customers to park vehicles in the right position. The system works out the best washing distance according to the detected date from the ultrasonic sensors.

Spray Nozzle: The spray nozzles are designed according to the complicated hydrodynamics and produced by high precision CNC lathe. High hardness materials make sure that spray nozzles does not become deformed under high pressure.

Special Water Knife Design: During high pressure rinse, spray nozzles can concentrate water flow to produce water knife. The upper and lower ectopic water knife structure makes sure that there is no offset pressure between the upper knife and side knife. 80KGS high pressure water can wash every dirty car.

High Efficiency Shampoo Consumption: Multi-function spray nozzles can atomize all liquids to cover and clean every corner of vehicles.

Micro Resistance Sliding Rail

Combined with variable frequency speed control and digital step driver, the micro resistance sliding rail makes the arm move more steady and fast, only 28seconds one circle for a 5meter length car.

Simplified engineering and high quality materials provide the optimal balance between initial investment and long-term profitability. Substantially faster wash speeds increase vehicle throughput, resulting in shorter wash lines that will delight your customers and keep them coming back again and again. Smart 360 technology enables G&Y ZF360 to be highly responsive to dynamic conditions in the wash bay, minimizing downtime and optimizing the wash process, resulting in higher customer satisfaction and repeat business.

E-Chain

Left or right mounted energy chain for easy and low-cost installation.

Slit-free Belt Drive

Bridge and trolley movements are controlled using slip-free drive belts for improved performance and wash accuracy. Less moving parts provide a much simpler drive system.

Rollers Inside: Bridge and trolley movements are smooth and effortless using internally mounted dual-axis rollers. The hanging design enhances self-centering and improved roller life by protecting the rollers from the harsh wash environment.

Intelligent Three Dimensional Detection System

The system is equipped with advanced position sensor, ultrasonic sensor and closed loop controller to detect location and size of vehicles. The detected digit signal is sent to central control unit to adjust the washing size automatically.

LED sign and voice system guide customers to park vehicle in the right position. When the vehicle is out of washing area, the system will remind customer to park vehicle in the right position to continue washing.

Alarm System

During washing, the alarm system will sound the alarm and stop working when vehicle is out of washing area or there is something wrong with machine.

Fault Self Checking System: The system will start self checking and sound the alarm when there is something wrong with machine. The system can identify and record all errors to help operator solve problems.

One Key Freeze-proofing Function: The system can drain off liquids from all pipe lines when the temperature is below 0 degree Celsius.

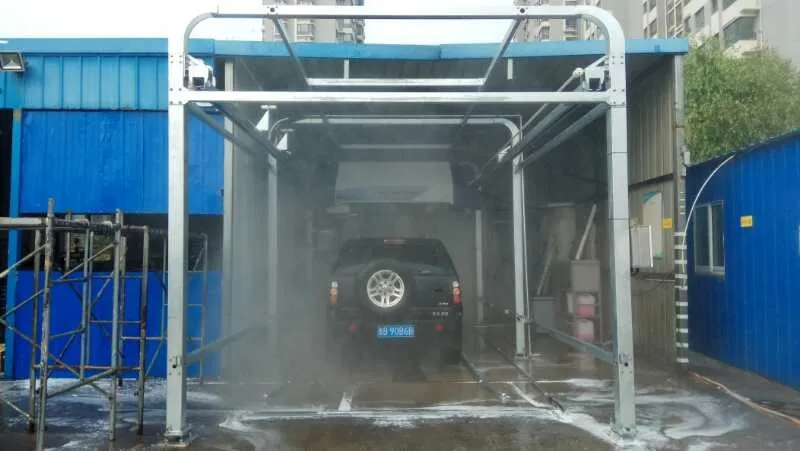

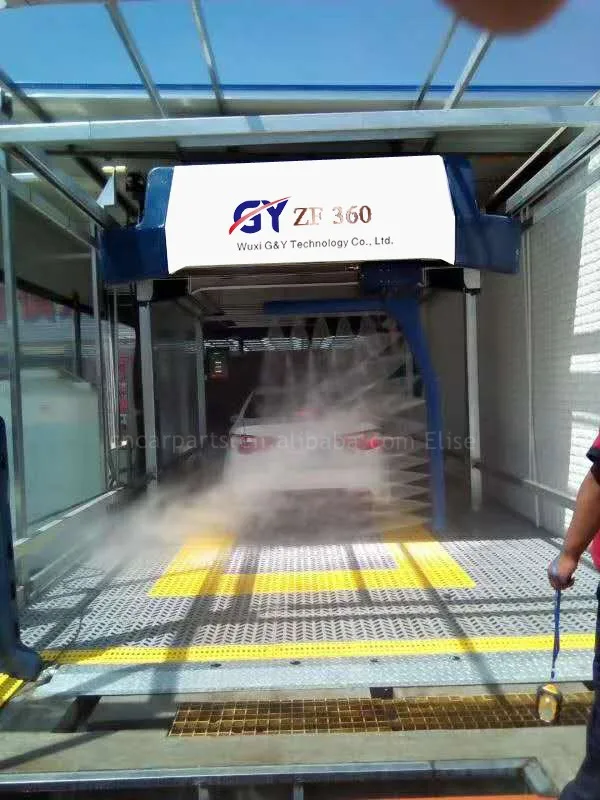

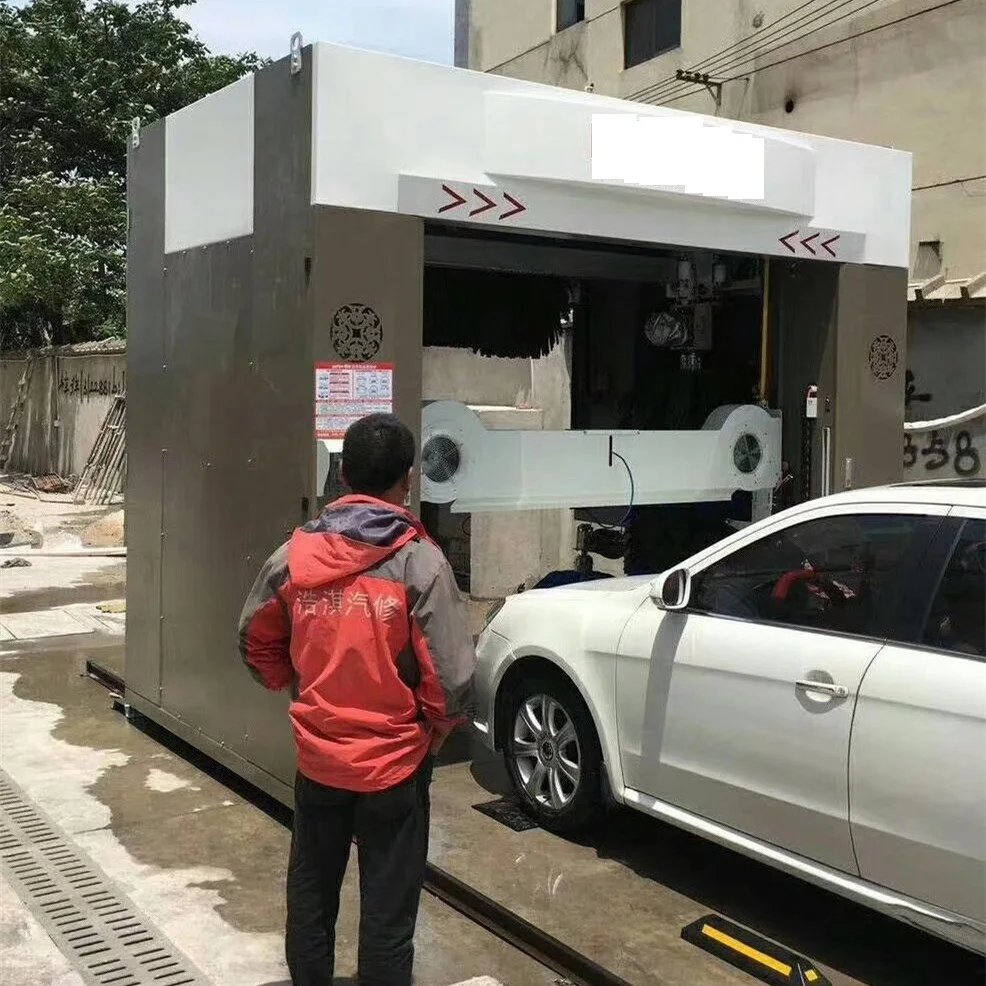

Customer feedback picture

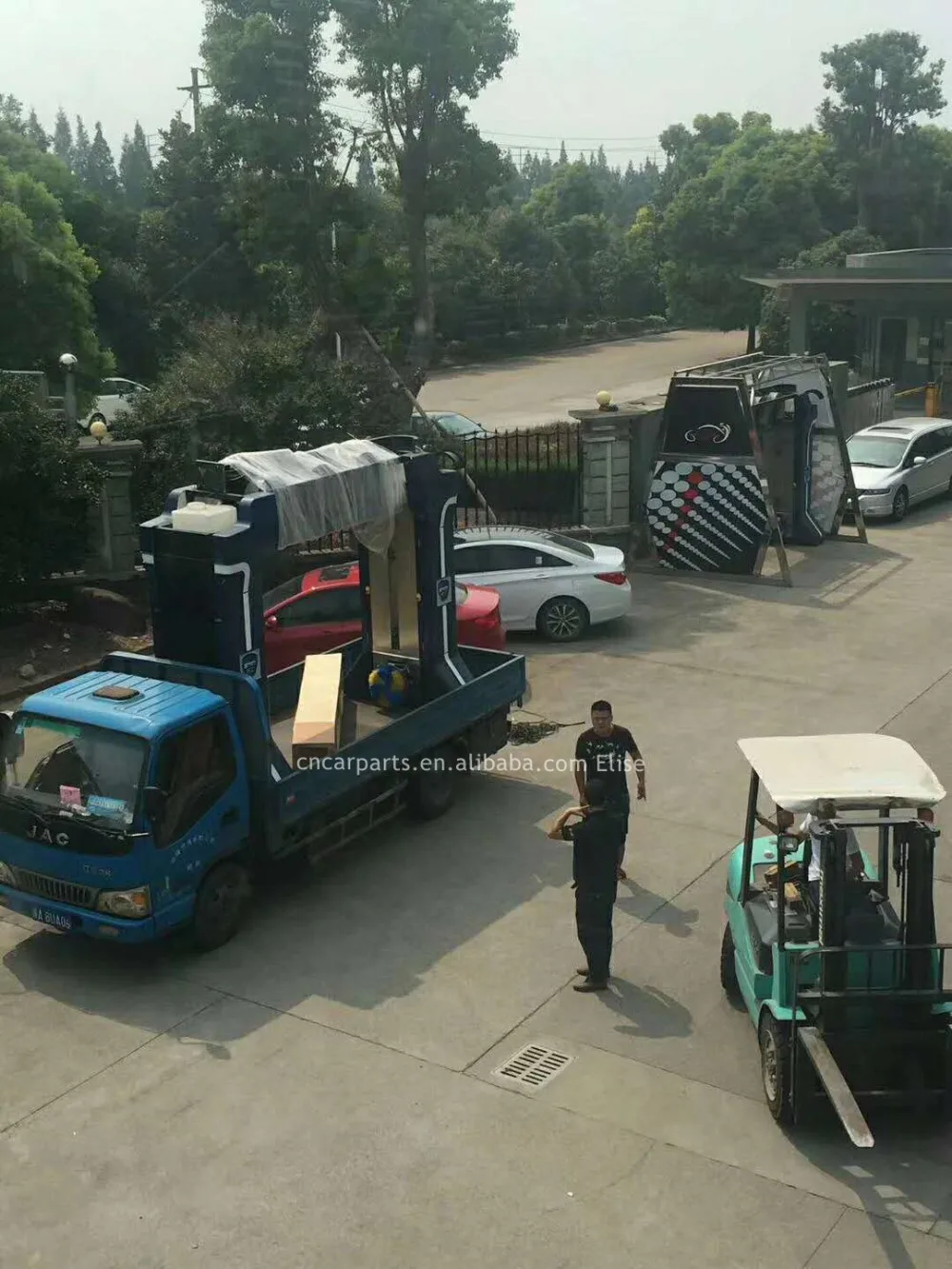

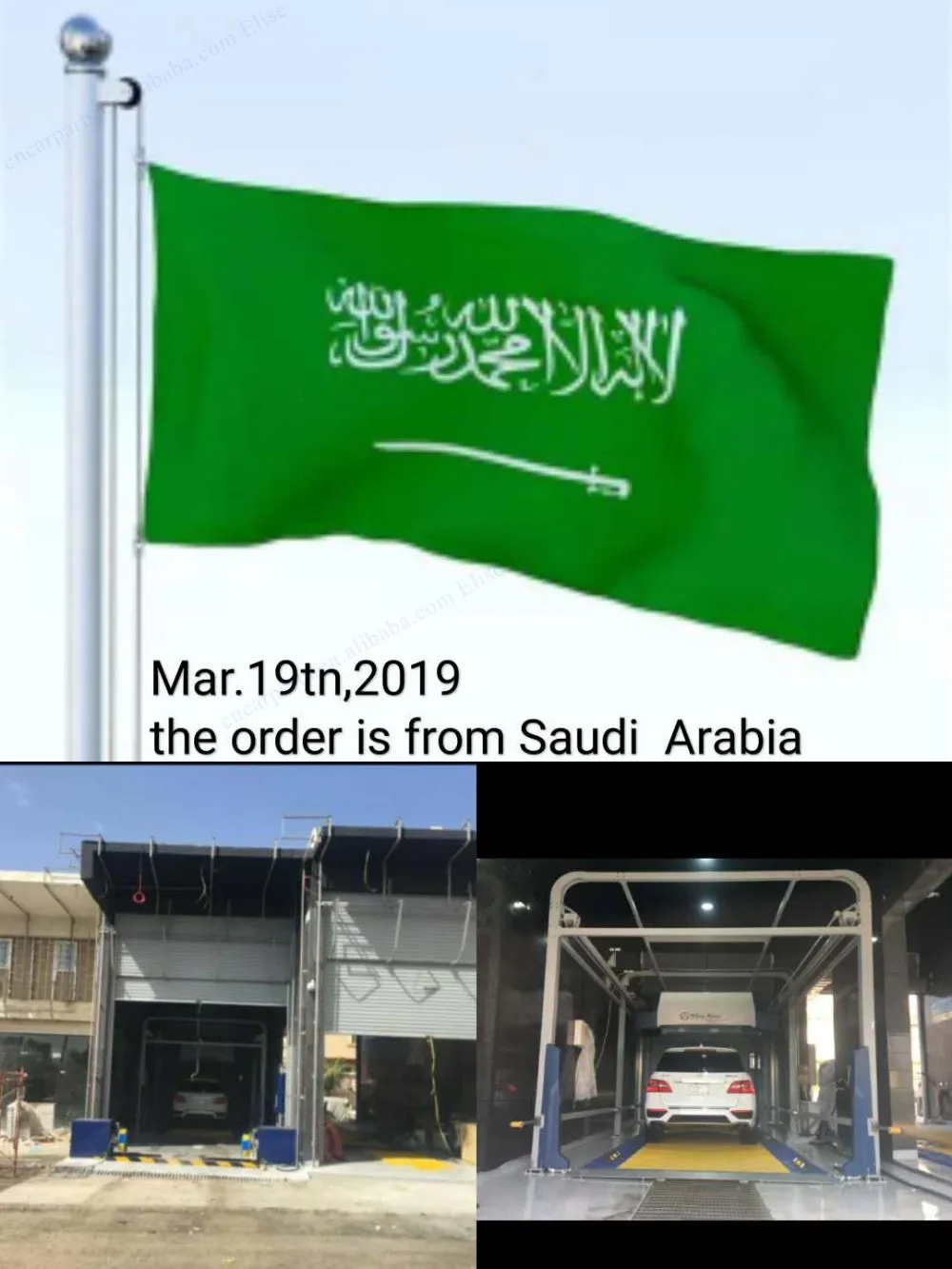

Partial order display

1.After-sale service :
Besides the high quality machines, we also offer you professional after-sale service as follows:

2.Installation support:
Our technicians can be sent all over the world where you are to install the machines and guide you daily maintenance .(Please contact customer service staff for installation costs.)

3.English documents support:
We provide English operating manual document for each machine .It is clear enough and easy for user to operate . It includes how to install ,how to maintain ,how to deal with it when any possible problems occur .

4.Technical support:
Our experienced customer support team will help you solve technical problems .We guarantee to respond to your inquiry within 24 hours, whether it comes by phone, mail or fax.

5.Parts support:
Any accessories is available ,we can deliver it to you when you demand it (Transportation costs are borne by the customer).

1. Maintenance :
We will give you the manual books for daily operation and maintain
We have unique maintenance system:
First , each machine is provided with fault diagnosissystem . when breakdown happens , the touch screen will show you where is breakdown , and also tell you how to fix it.
Second , IF you can not fix it by yourself , we get B plan---intelligent operation system. That system will help you to stop failure parts of machine , let other parts of machine still normal operate. E.G. you get one automatic car wash machine with 5 brushes , one of 5 brushes do not work , you do not need to stop the whole system like other manufacturers do .
Using intelligent operation system , you just only need stop the wrong brush , and the other brushes will be working normally . So you will not waste time to fix the machine because of tiny problem . You can continue to do business .

2. Installation :
We arrange our technician to your place for assembling and training .The round-trip air tickets and accommodation are on the buyer's account.

3. Warranty:
3 years warranty after the normal operation , life time technical ,maintenance and parts support.

For more questions, please contact customer service staff: Elise
